EXSEV-SK

EXSEV-SK / JTEKT Corporation (Official website) / Listed on page 30 of the document

Ball bearing with stainless steel raceways, balls and cage, pre-packed with lithium-based grease, for environments with slight corrosion.

Last verified: (date the content was verified against the source document)

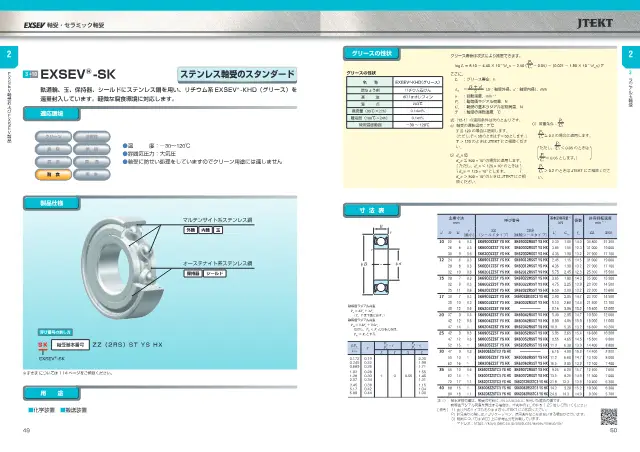

EXSEV-SK on page 30 of JTEKT Corporation "特殊環境用軸受シリーズ 軸受・セラミック軸受 (EXSEV Bearings and CERAMIC Bearings for Extreme Special Environments)"
Source: JTEKT Corporation「特殊環境用軸受シリーズ 軸受・セラミック軸受 (EXSEV Bearings and CERAMIC Bearings for Extreme Special Environments)」page 30
A reduced image of the relevant page is quoted from the document. Copyright belongs to JTEKT Corporation.Request removal

Specifications

Operating Temperature Range -30～120 ℃

How to choose Deep Groove Ball Bearings

Points to check when selecting, with the values for this product (EXSEV-SK).

  1. 1. Main dimensions to suit shaft and housing

    Select the bore diameter d to match the shaft diameter, the outside diameter D to match the housing bore, and the width B to suit the installation space. The listed products cover a wide range of bore diameters from 0.6 to 1420 mm, and even at the same bore diameter there are dimension series with different outside diameters and widths. Since load capacity and mass change with the dimension series, confirm the three dimensions in combination.

  2. 2. Basic dynamic load rating for life calculation

    The basic dynamic load rating Cr is the reference value for calculating rolling fatigue life, and life is estimated from the ratio of the actual applied load to Cr. For high loads or when long life is required, select a bearing with a larger Cr. Bearings made of special materials may have lower ratings than steel bearings of the same dimensions, so confirm life under the operating conditions.

  3. 3. Check static and shock loads against static rating

    The basic static load rating C0r is the guideline load at which permanent deformation does not occur, applicable when stationary, rotating at low speed, or subjected to shock loads. For applications with oscillating motion or large loads while stopped, select with emphasis on the ratio to C0r (static safety factor) rather than the dynamic rating.

  4. 4. Internal clearance to suit fit and temperature

    Radial internal clearance decreases during operation due to interference fits and temperature differences between the inner and outer rings. Clearances larger than standard, such as C3, are used in applications where the inner ring tends to expand, such as motors or high-temperature environments. Clearance that is too small leads to heat generation and seizure, so determine the class from the fit and operating temperature.

  5. 5. Materials and lubrication suited to the environment

    Stainless steel or ceramics (silicon nitride, zirconia, silicon carbide) are used in water or chemical solutions, while solid lubricants such as graphite or fluorine-based solids and fluorine grease are used in high-temperature, vacuum or clean environments. Listed products have maximum operating temperatures of 250 to 350°C, so select the material and lubrication method based on temperature, atmosphere and dust-generation requirements.

  6. 6. Check speed limits and electrical corrosion countermeasures

    Confirm that the limiting speed and reference speed exceed the operating speed. In equipment where shaft current flows, such as inverter-driven motors, hybrid bearings with insulating-coated or ceramic balls can prevent electrolytic corrosion. Ceramic balls are lighter than steel balls, so the effect of centrifugal force is reduced even at high speeds.

This guide was written by AI based on the listed products' documents and specification items.

About Deep Groove Ball Bearings and all products

Description

Stainless steel is used for the raceways, balls, cage and shield, and the bearing is pre-packed with lithium-based grease. Suitable for environments with slight corrosion.

Features

  • Stainless steel construction
  • Pre-packed with lithium-based grease
  • Shield type and contact seal type

Applications

  • Chemical equipment
  • Conveying equipment

FAQ

Q. In what environments can the EXSEV-SK be used?
A. It is a ball bearing suitable for environments with slight corrosion. Stainless steel is used for the raceways, balls, cage and shield.
Q. What is the operating temperature range and sealed grease of the EXSEV-SK?
A. The operating temperature range is -30 to 120 ℃. It is pre-packed with lithium-based grease.
Q. What seal types are available for the EXSEV-SK?
A. Shield type and contact seal type are available.
Q. Can the EXSEV-SK be used in chemical equipment and conveying equipment?
A. Chemical equipment and conveying equipment are listed as applications.
