Oil Seal Special Type Large Size (YS/YSN/YSA/YSAN)

Specifications

How to choose Oil Seals

Points to check when selecting, with the values for this product (Oil Seal Special Type Large Size (YS/YSN/YSA/YSAN)).

1. 1. Match shaft diameter and housing bore

   This product: Shaft diameter d 255〜1640 mm

   Select shaft diameter d and outer diameter D by nominal dimensions to suit the mating shaft and housing bore. Listed shaft diameters range widely from 6 to 3530 mm. Some standard types are designed assuming shaft tolerance h8 and housing bore tolerance H7/H8. Deviation from fit tolerances can cause leakage or seal dislodgement.

2. 2. Check width fits the installation space

   Confirm that width b fits within the axial installation space. Listed products are 5 to 30 mm. For large types, cross-section width, groove width, and presence of spacers are also part of the dimensional requirements, so verify against the housing groove dimensions.

3. 3. Select lip material suited to fluid and temperature

   Lip material governs oil resistance and heat resistance. Nitrile rubber is a general-purpose material for mineral oils, acrylic and fluororubber suit the high-temperature range, and silicone readily covers low to high temperatures. PTFE lips are suitable for chemicals and high temperatures, and food-hygiene-compliant materials are available for food machinery.

4. 4. Allow margin in operating temperature range

   Confirm that the continuous operating temperature range includes the running oil temperature. Temporary temperature rises, such as at startup, are judged by the short-term maximum temperature (120 °C in one listed example). However, if the normal operating temperature is close to the upper limit, rubber hardening and lip wear will accelerate.

5. 5. Verify shaft surface speed is within limit

   Surface speed is the lip sliding speed calculated from shaft diameter and rotational speed. The listed maximum surface speeds are 5 to 20 m/s, and exceeding them causes lip deterioration from frictional heat. Even at the same rotational speed, surface speed increases with larger shaft diameter, so check this particularly for large-diameter shafts.

6. 6. Confirm maximum sealing pressure limit

   Standard oil seals are intended for low-pressure use. Listed maximum operating pressures vary greatly by type, from 0.03 to 15 MPa, so select a pressure-resistant type for applications with internal pressure. Under pressure the lip is pressed strongly against the shaft, making heat generation more likely.

This guide was written by AI based on the listed products' documents and specification items.

About Oil Seals and all products

Description

Nominal numbers are expressed by a type symbol and dimension number (shaft diameter, outer diameter, width). Spacer widths include 5 mm, 10 mm, and others. Some model numbers have -1 appended to the nominal number.

FAQ

Q. What is the applicable shaft diameter range for Oil Seal Special Type Large Size (YS/YSN/YSA/YSAN)?

A. The shaft diameter is 255 to 1640 mm.

Q. For Oil Seal Special Type Large Size (YS/YSN/YSA/YSAN), which rubber materials can be selected?

A. You can select from nitrile, fluororubber, and hydrogenated nitrile.

Q. What spacer widths are available for the spacer-equipped type of Oil Seal Special Type Large Size (YS/YSN/YSA/YSAN)?

A. Spacer widths include 5 mm, 10 mm, and others. Spacer-equipped seals are also available.

Q. How is the nominal number of Oil Seal Special Type Large Size (YS/YSN/YSA/YSAN) structured?

A. It is expressed by a type symbol and dimension number (shaft diameter, outer diameter, width). Some model numbers have -1 appended to the nominal number.

Written by AI based on the content of the source documents.

Source documents

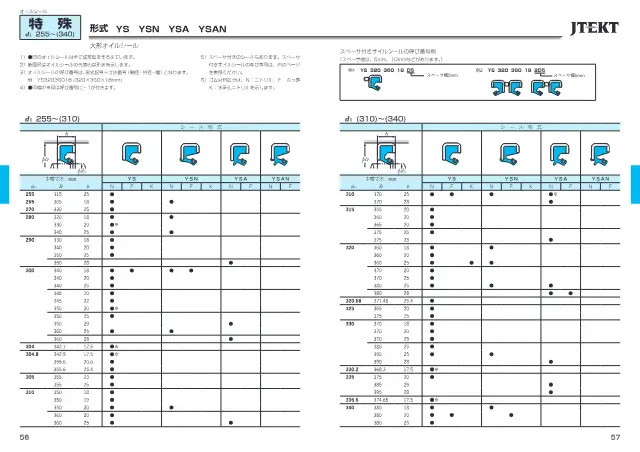

• Catalog オイルシール ＆ Oリング Open page 50
