Single-Direction Thrust Ball Bearing with Self-Aligning Housing Washer and Raceway

Specifications

How to choose Thrust Ball Bearings

Points to check when selecting, with the values for this product (Single-Direction Thrust Ball Bearing with Self-Aligning Housing Washer and Raceway).

1. 1. Select single or double type by load direction

   Single-direction bearings support axial load in one direction only and fix the shaft in one direction. If the load reverses in both directions, select a double-direction bearing. If the mounting surface is inclined or the shaft deflects, select a type with a self-aligning housing washer (seat washer) to reduce edge loading.

2. 2. Match shaft diameter and mounting dimensions

   This product: Inner diameter d 12 to 140 mm

   Select the bore d to suit the shaft diameter and the outside diameter D to suit the housing bore. The height T determines the axial installation space, so check it together with the bore and outside diameter. Listed products have bores of 3 to 280 mm and outside diameters of 8 to 380 mm.

3. 3. Check life using dynamic load rating

   The basic dynamic load rating Ca is the axial load that serves as the reference for life calculation. Calculate whether the required life is met using the applied load and rotational speed. Listed products have ratings of 0.806 to 624 kN.

4. 4. Check static and shock loads using static load rating

   For low-speed rotation or loads and shock loads applied while stationary, check that the basic static load rating C0a provides sufficient margin to prevent permanent deformation of the raceways. Listed products have ratings of 0.72 to 2600 kN.

5. 5. Check both reference and limiting speeds

   Thrust ball bearings are prone to slippage at high speeds due to centrifugal force and gyroscopic moment acting on the balls, so they are not suitable for high-speed applications. Compare the operating speed with the reference speed, which is a thermal guideline, and the limiting speed, which is the mechanical upper limit.

6. 6. Check operating temperature and cage material

   The permissible operating temperature is a guideline of 125°C for washers and balls with bores of 300 mm or less. Cages are available in steel plate, brass, resin, and other materials. Resin cages have a limited usable temperature range, so confirm the material according to temperature and lubrication conditions.

This guide was written by AI based on the listed products' documents and specification items.

About Thrust Ball Bearings and all products

Description

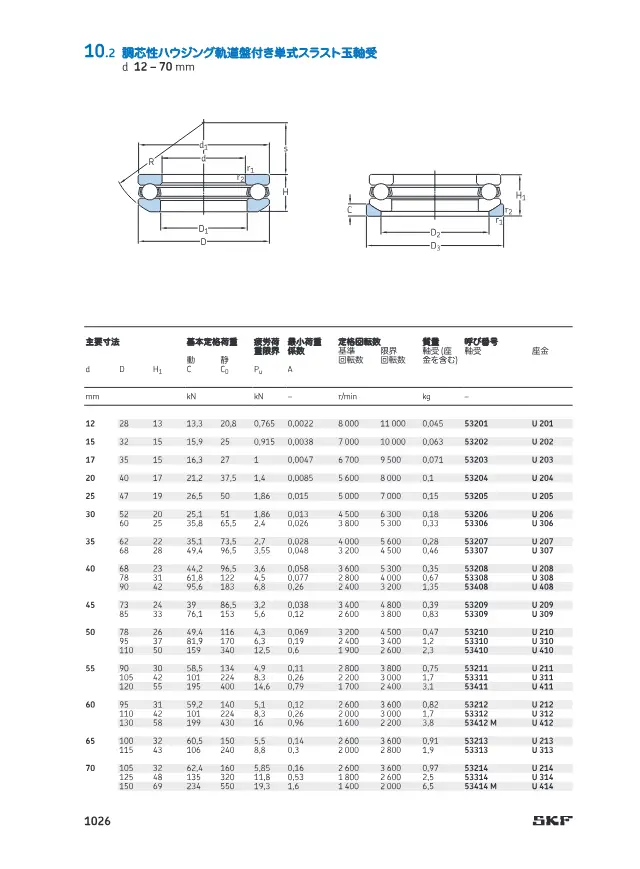

Product series with nominal numbers 53201 to 53414M, U201 to U414, and others. Lists main dimensions, basic load ratings, limiting speeds, and mass including seat washer.

FAQ

Q. What are the bore and outer diameter ranges of the single-direction thrust ball bearing with self-aligning housing washer and raceway (53000 series, U series with seat washer)?

A. The bore diameter d ranges from 12 to 140 mm, and the outer diameter D ranges from 28 to 200 mm.

Q. What nominal numbers are included in the product series of the single-direction thrust ball bearing with self-aligning housing washer and raceway (53000 series, U series with seat washer)?

A. The product series includes nominal numbers 53201 to 53414M, U201 to U414, and others.

Q. Does the single-direction thrust ball bearing with self-aligning housing washer and raceway (53000 series, U series with seat washer) accommodate alignment during mounting?

A. Yes, it is equipped with a seat washer and accommodates alignment during mounting.

Q. What numerical data is listed in the product information for the single-direction thrust ball bearing with self-aligning housing washer and raceway (53000 series, U series with seat washer)?

A. The product information lists main dimensions, basic load ratings, limiting speeds, and mass including the seat washer.

Written by AI based on the content of the source documents.
