Static Seal

How to choose O-Rings

Points to check when selecting, with the values for this product (Static Seal).

1. 1. Specify dimensions by standard and size number

   For series such as JIS B 2401 P and G, JASO F 404, and AS 568, the inner diameter, cross-section diameter, and recommended groove dimensions are defined for each size number. Confirm which standard series the equipment groove is designed to, and select a size number from the same series to avoid dimensional mismatch with the groove.

2. 2. Select an inner diameter that suits the groove and shaft diameter

   Select the inner diameter d1 to match the diameter of the shaft or groove bottom it fits onto. For applications sealing the outer periphery, the O-ring is generally installed with slight stretch over the shaft; for applications sealing the inner periphery, it is generally fitted along the bore side. Excessive stretch thins the cross-section and reduces squeeze.

3. 3. Check the cross-section diameter against groove depth

   The relationship between cross-section diameter d2 (wire diameter) and groove depth determines the squeeze. Even with the same inner diameter, some series have different cross-section diameters, so select a wire diameter that suits the groove depth and width. The cross-section diameters of the listed products range from 1.02 to 10 mm.

4. 4. Select a material suited to the fluid and temperature

   NBR is suitable for mineral-oil-based hydraulic fluids; FKM for heat and chemical resistance; and EPDM for water, steam, and brake fluid, but it is not suitable for mineral oils. VMQ (silicone) can be used from low to high temperatures, but its mechanical strength is lower. Confirm the fluid type and operating temperature range together.

5. 5. Select hardness according to pressure

   Hardness (Durometer A) is generally around 70 as standard; at higher pressures, selecting a harder material helps suppress extrusion into the gap. However, a harder material requires greater force to compress and slightly reduces sealing performance at low pressure.

6. 6. Use backup rings under high pressure

   In high-pressure or dynamic applications, the O-ring may extrude into the gap and be damaged. Prevent this by installing backup rings, such as those made of PTFE, on the side opposite the pressurized side. Use one for single-side pressure, or two when pressure acts from both sides, and widen the groove width to accommodate their thickness.

This guide was written by AI based on the listed products' documents and specification items.

About O-Rings and all products

Description

The document's table of contents lists it as a product group following Backup Rings. Detailed specifications are not included in the excerpt range, so they are not described here.

FAQ

Q. What kind of product is the SKF Static Seal?

A. It is a product group of seals used for sealing stationary parts. The type is O-ring.

Q. Where can detailed specifications of the SKF Static Seal be found?

A. The excerpt range of this document does not include detailed specifications, so they cannot be confirmed from this document.

Written by AI based on the content of the source documents.

Source documents

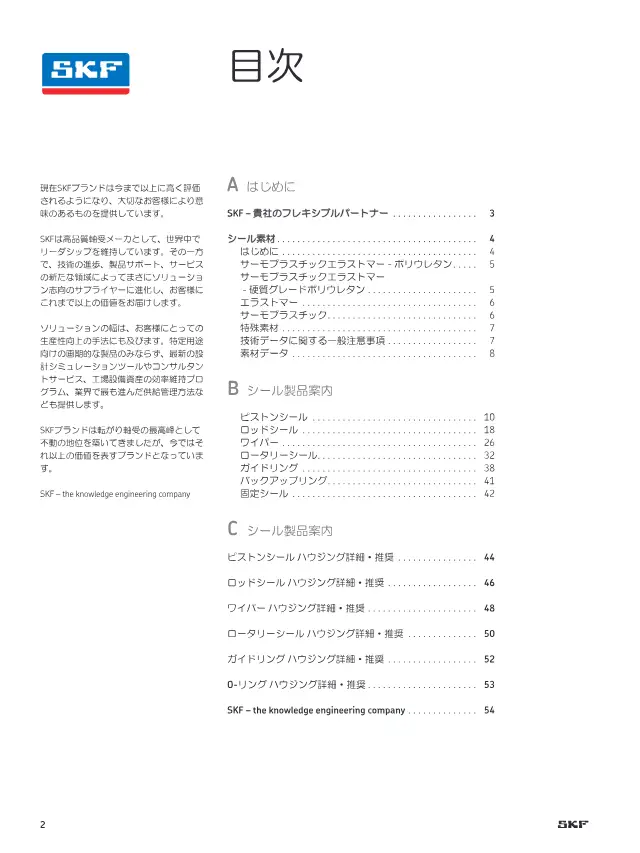

• Catalog カスタムエンジニアリングシール シール製品案内 56 pages Open page 2
