Sealed Single-Row Deep Groove Ball Bearings, d 55–65 mm

深溝玉軸受 61800/61900/6000/6200/6300系 (密封型) / SKF (Official website) / Listed on page 71 of the document

Sealed single-row deep groove ball bearings with bore diameters of 55 to 65 mm. Available with sealing types such as 2Z, 2RZ and 2RS1, including SKF Explorer bearings.

Last verified: (date the content was verified against the source document)

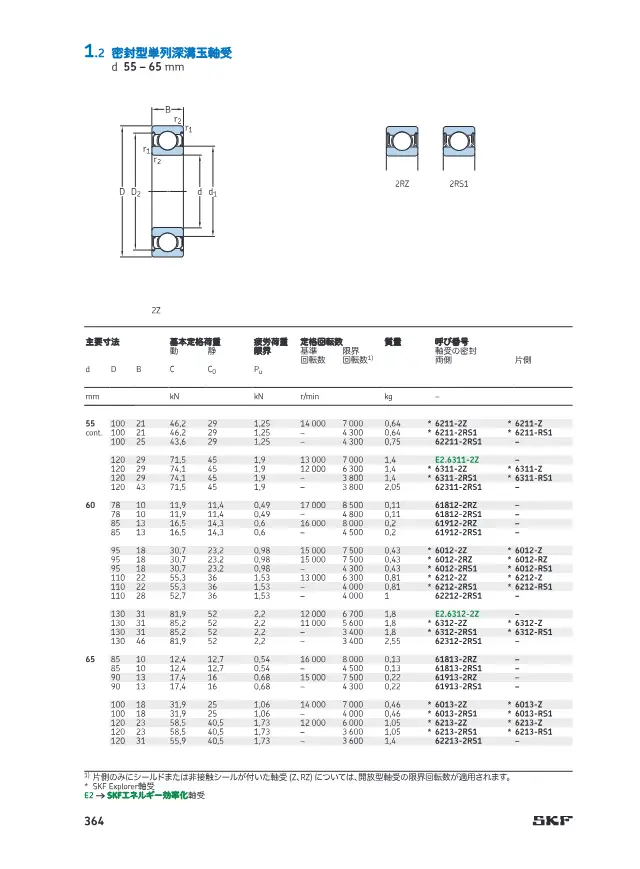

Sealed Single-Row Deep Groove Ball Bearings, d 55–65 mm on page 71 of SKF "SKF 深溝玉軸受 製品カタログ(設計およびバリエーション)"
Source: SKF「SKF 深溝玉軸受 製品カタログ(設計およびバリエーション)」page 71
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Inner diameter d 55 to 65 mm
Outer diameter D 72 to 140 mm
Width B 9 to 33 mm
Basic dynamic load rating Cr 12.4 to 97.5 kN
Basic static load rating C0r 8.3 to 60 kN
Limiting speed (grease lubrication) 5300 to 17000 r/min
Mass 0.11 to 2.15 kg

深溝玉軸受 61800/61900/6000/6200/6300系 (密封型) model comparison

Compare 8 models in the same series by specification.

Model Inner diameter d Outer diameter D Width B Basic dynamic load rating Cr Basic static load rating C0r Limiting speed (grease lubrication) Mass
密封型単列深溝玉軸受 d 17–20 mm 17 to 20 mm 26 to 47 mm 5 to 19 mm 2.03 to 14.3 kN 1.27 to 6.55 kN 11000 to 56000 r/min 0.0082 to 0.16 kg
密封型単列深溝玉軸受 d 20–25 mm 20 to 25 mm 32 to 62 mm 7 to 24 mm 4.36 to 23.4 kN 2.6 to 11.6 kN 9000 to 38000 r/min 0.022 to 0.32 kg
密封型単列深溝玉軸受 d 30–35 mm 30 to 35 mm 42 to 72 mm 7 to 27 mm 4.36 to 29.6 kN 2.9 to 16 kN 6300 to 32000 r/min 0.022 to 0.5 kg
密封型単列深溝玉軸受 d 35–45 mm 35 to 45 mm 47 to 90 mm 7 to 33 mm 4.49 to 42.3 kN 3.35 to 24 kN 5000 to 30000 r/min 0.034 to 1.02 kg
密封型単列深溝玉軸受 d 45–55 mm 45 to 55 mm 58 to 130 mm 7 to 31 mm 6.63 to 85.2 kN 6.1 to 52 kN 4300 to 22000 r/min 0.04 to 2.05 kg
密封型単列深溝玉軸受 d 55–65 mm This product 55 to 65 mm 72 to 140 mm 9 to 33 mm 12.4 to 97.5 kN 8.3 to 60 kN 5300 to 17000 r/min 0.11 to 2.15 kg
密封型単列深溝玉軸受 d 65–75 mm 65 to 75 mm 90 to 160 mm 10 to 37 mm 12.7 to 119 kN 7.6 to 76.5 kN 4000〜15000 r/min 0.14〜3.15 kg
密封型単列深溝玉軸受 d 80–90 mm 80〜90 mm 100〜190 mm 10〜43 mm 13〜151 kN 15〜108 kN 3800〜13000 r/min 0.15〜5.1 kg

How to choose Deep Groove Ball Bearings

Points to check when selecting, with the values for this product (Sealed Single-Row Deep Groove Ball Bearings, d 55–65 mm).

  1. 1. Main dimensions to suit shaft and housing

    This product: Inner diameter d 55 to 65 mm

    Select the bore diameter d to match the shaft diameter, the outside diameter D to match the housing bore, and the width B to suit the installation space. The listed products cover a wide range of bore diameters from 0.6 to 1420 mm, and even at the same bore diameter there are dimension series with different outside diameters and widths. Since load capacity and mass change with the dimension series, confirm the three dimensions in combination.

  2. 2. Basic dynamic load rating for life calculation

    This product: Basic dynamic load rating Cr 12.4 to 97.5 kN

    The basic dynamic load rating Cr is the reference value for calculating rolling fatigue life, and life is estimated from the ratio of the actual applied load to Cr. For high loads or when long life is required, select a bearing with a larger Cr. Bearings made of special materials may have lower ratings than steel bearings of the same dimensions, so confirm life under the operating conditions.

  3. 3. Check static and shock loads against static rating

    This product: Basic static load rating C0r 8.3 to 60 kN

    The basic static load rating C0r is the guideline load at which permanent deformation does not occur, applicable when stationary, rotating at low speed, or subjected to shock loads. For applications with oscillating motion or large loads while stopped, select with emphasis on the ratio to C0r (static safety factor) rather than the dynamic rating.

  4. 4. Internal clearance to suit fit and temperature

    Radial internal clearance decreases during operation due to interference fits and temperature differences between the inner and outer rings. Clearances larger than standard, such as C3, are used in applications where the inner ring tends to expand, such as motors or high-temperature environments. Clearance that is too small leads to heat generation and seizure, so determine the class from the fit and operating temperature.

  5. 5. Materials and lubrication suited to the environment

    Stainless steel or ceramics (silicon nitride, zirconia, silicon carbide) are used in water or chemical solutions, while solid lubricants such as graphite or fluorine-based solids and fluorine grease are used in high-temperature, vacuum or clean environments. Listed products have maximum operating temperatures of 250 to 350°C, so select the material and lubrication method based on temperature, atmosphere and dust-generation requirements.

  6. 6. Check speed limits and electrical corrosion countermeasures

    This product: Limiting speed (grease lubrication) 5300 to 17000 r/min

    Confirm that the limiting speed and reference speed exceed the operating speed. In equipment where shaft current flows, such as inverter-driven motors, hybrid bearings with insulating-coated or ceramic balls can prevent electrolytic corrosion. Ceramic balls are lighter than steel balls, so the effect of centrifugal force is reduced even at high speeds.

This guide was written by AI based on the listed products' documents and specification items.

About Deep Groove Ball Bearings and all products

Description

Series of sealed single-row deep groove ball bearings with bore diameters of 55 to 65 mm. Outside diameters range from 72 to 140 mm and widths from 9 to 33 mm. Shielded, non-contact seal and contact seal types are available. Basic dynamic load ratings range from 12.4 to 97.5 kN, and mass ranges from 0.11 to 2.15 kg.

Features

  • Sealing types such as 2Z, 2RZ and 2RS1 are selectable
  • Includes SKF Explorer bearings and energy-efficient bearings

FAQ

Q. What sealing types are available for Sealed Single-Row Deep Groove Ball Bearings, d 55–65 mm (SKF)?
A. You can select from sealing types such as 2Z, 2RZ and 2RS1. Shielded, non-contact seal and contact seal types are available.
Q. What are the dimension and load rating ranges for Sealed Single-Row Deep Groove Ball Bearings, d 55–65 mm (SKF)?
A. Bore diameter d is 55 to 65 mm, outside diameter D is 72 to 140 mm, and width B is 9 to 33 mm. Basic dynamic load rating Cr is 12.4 to 97.5 kN, and basic static load rating C0r is 8.3 to 60 kN.
Q. What are the limiting speeds and masses of Sealed Single-Row Deep Groove Ball Bearings, d 55–65 mm (SKF)?
A. Limiting speed (grease lubrication) is 5300 to 17000 r/min. Mass is 0.11 to 2.15 kg.
Q. Does Sealed Single-Row Deep Groove Ball Bearings, d 55–65 mm (SKF) include SKF Explorer models?
A. Yes, it includes SKF Explorer bearings and energy-efficient bearings.

Written by AI based on the content of the source documents.
