MB(L) Lock Washer

Specifications

How to choose Locking washers

Points to check when selecting, with the values for this product (MB(L) Lock Washer).

1. 1. Match the lock nut designation number

   Select the lock washer according to the designation number of the lock nut it will be used with. Each series is fixed, such as AN/AW-series nuts for metric MB and N-series nuts for inch-series W. Mixing different series will cause the tabs and notches not to align, preventing proper fixing.

2. 2. Match the inner diameter to the shaft or sleeve diameter

   This product: Inner diameter d 10~280 mm

   The inner diameter d corresponds to the thread diameter of the applicable shaft or adapter sleeve. Confirm that the inner tab fits properly into the keyway, together with the keyway width and depth. For inch-series products, pay attention to the unit used in the dimension notation.

3. 3. Check the outer diameter and nut notch position

   The outer diameter d2 determines whether the outer tab can be bent into the notch of the lock nut. Based on the outer diameter, also check for interference with surrounding housings and seals.

4. 4. Account for axial space using the thickness

   The thickness B adds to the axial dimension from the bearing to the nut. During design, confirm that the threaded section is long enough and that the plate thickness allows the tab to be bent.

5. 5. Select material according to the operating environment

   Steel is generally used, but in environments exposed to water or chemicals, consider stainless steel to avoid seizure caused by rust and loss of strength. Also consider compatibility with the nut and shaft materials.

6. 6. Consider clip or plate systems for large diameters

   For large-diameter nuts or locations where bending the tabs is difficult, a system using fixing clips or fixing plates fastened with bolts can be used. Confirm that all components, including bolts, washers, and wire, are available.

This guide was written by AI based on the listed products' documents and specification items.

About Locking washers and all products

Description

A series of lock washers used to prevent loosening of lock nuts. Plate thickness and mass vary depending on bore diameter and thread size.

FAQ

Q. For what application and with which nut is the SKF MB(L) lock washer used?

A. It is a lock washer used in combination with a lock nut to prevent rotation of bearings.

Q. What are the bore diameter and part number range of the MB(L) lock washer?

A. The bore diameter d is 10 to 280 mm. Part numbers MB 0 to MB 56 are available.

Q. How are the plate thickness and mass of MB and MBL lock washers determined?

A. Plate thickness and mass vary depending on bore diameter and thread size.

Written by AI based on the content of the source documents.

Source documents

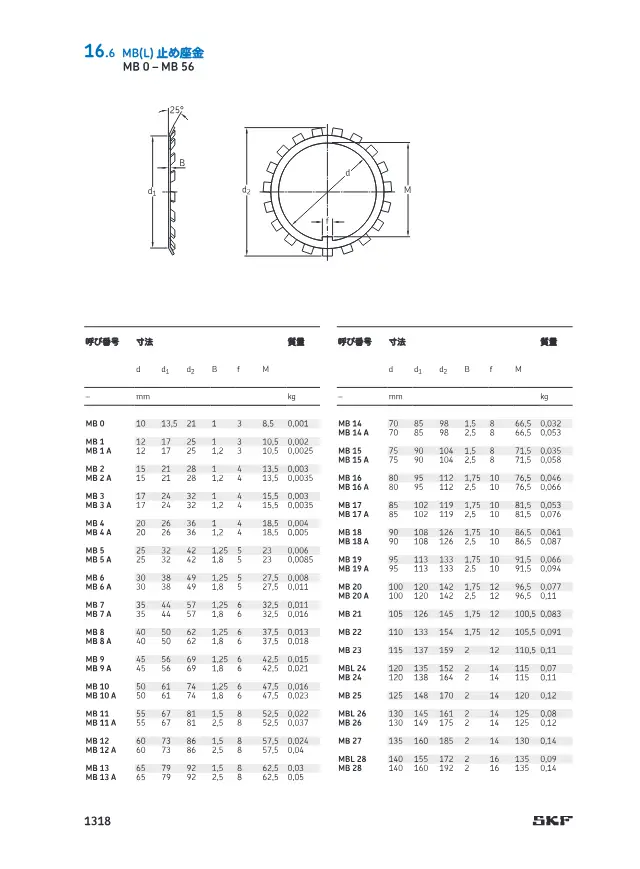

• Catalog 軸受付属品（アダプタスリーブ・取り外しスリーブ・ロックナット） 74 pages Open page 51
