Solid Needle Roller Bearing, Without Flange, With Inner Ring (NAO)

Specifications

How to choose Needle roller bearings

Points to check when selecting, with the values for this product (Solid Needle Roller Bearing, Without Flange, With Inner Ring (NAO)).

1. 1. Select dimensions by shaft diameter and presence of inner ring

   Types without an inner ring use the shaft directly as the raceway, so the roller pitch circle diameter Fw corresponds to the applicable shaft diameter. In this case the shaft requires sufficient hardness and surface finish. If the shaft cannot serve as the raceway, select a type with an inner ring and match the shaft diameter using the bore diameter d.

2. 2. Check housing dimensions by outside diameter and width

   This product: Outer diameter D 17〜120 mm

   The outside diameter D determines the housing bore diameter, and the width C determines the axial installation space. Shell types have thin walls and allow a smaller outside diameter, but they are retained by press fit, so the housing bore tolerance and rigidity must be verified.

3. 3. Verify life and static strength with rated loads

   The basic dynamic load rating Cr is used for calculating rolling fatigue life, and the basic static load rating C0r is used for examining permanent deformation under shock loads or stationary loads. The listed Cr values range widely from 1.23 to 13200 kN, and are larger for double-row types and larger diameters.

4. 4. Choose the type suited to the application

   Select shell types for space savings and solid types for high load and high rigidity. Select self-aligning types where shaft tilt is present, combined types with thrust bearings for fixed-side positions that also carry axial load, and cam followers for applications rolling along cams or rails.

5. 5. Match rotational speed with lubrication method

   The limiting speed varies with the lubrication method, and generally oil lubrication allows higher speeds than grease lubrication. Confirm that the operating speed is below the limiting speed for each lubrication condition.

6. 6. Consider sealing and operating environment

   In environments where foreign matter or moisture may enter, selecting contact-seal types such as RS or 2RS, or grease-packed types, helps retain lubricant and reduces relubrication effort. However, the seal increases rotational resistance and imposes limits on operating temperature, so these points should be considered.

This guide was written by AI based on the listed products' documents and specification items.

About Needle roller bearings and all products

Description

Solid needle roller bearing without flange and with inner ring. Some models are double-row and have oil holes and oil grooves in the outer ring. Available in bore diameters ranging from 6 to 90 mm.

FAQ

Q. What are the bore diameter and outside diameter ranges of the NAO Series (Solid Needle Roller Bearing, Without Flange, With Inner Ring)?

A. Bore diameter d is 6 to 90 mm, and outside diameter D is 17 to 120 mm.

Q. Are NAO Series needle roller bearings with inner ring? Do they have any installation features?

A. Yes, they are with inner ring. They are said to be easy to install because of the inner ring.

Q. Do NAO Series needle roller bearings have oil holes or oil grooves?

A. Some models have oil holes and oil grooves. Some models are double-row and have oil holes and oil grooves in the outer ring.

Written by AI based on the content of the source documents.

Source documents

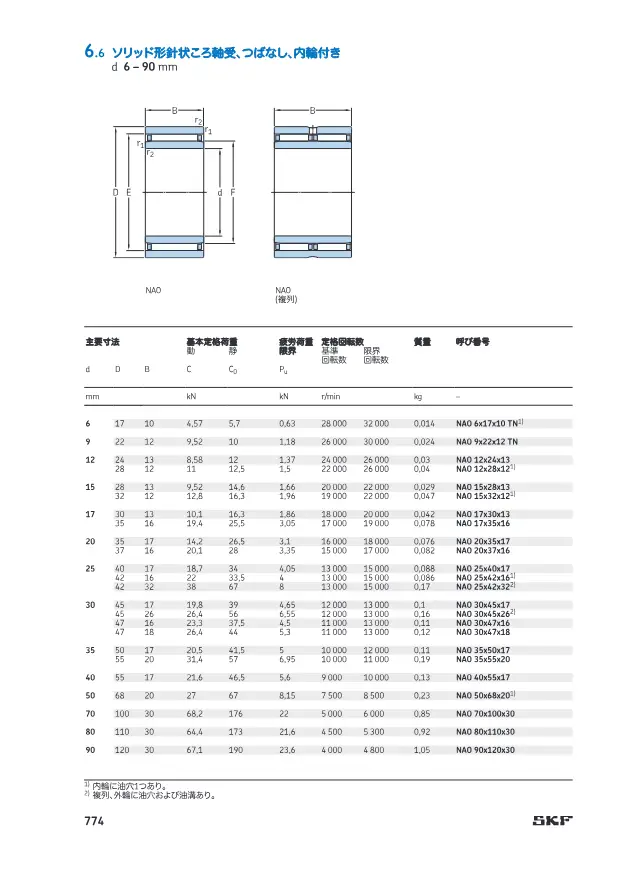

• Catalog 針状ころ軸受 (SKF 製品カタログ・技術資料抜粋) 124 pages Open page 103
