Solid Needle Roller Bearing NK/RNA Series

Specifications

How to choose Needle roller bearings

Points to check when selecting, with the values for this product (Solid Needle Roller Bearing NK/RNA Series).

1. 1. Select dimensions by shaft diameter and presence of inner ring

   This product: Roller pitch circle diameter Fw 5〜25 mm

   Types without an inner ring use the shaft directly as the raceway, so the roller pitch circle diameter Fw corresponds to the applicable shaft diameter. In this case the shaft requires sufficient hardness and surface finish. If the shaft cannot serve as the raceway, select a type with an inner ring and match the shaft diameter using the bore diameter d.

2. 2. Check housing dimensions by outside diameter and width

   This product: Outer diameter D 10〜38 mm

   The outside diameter D determines the housing bore diameter, and the width C determines the axial installation space. Shell types have thin walls and allow a smaller outside diameter, but they are retained by press fit, so the housing bore tolerance and rigidity must be verified.

3. 3. Verify life and static strength with rated loads

   The basic dynamic load rating Cr is used for calculating rolling fatigue life, and the basic static load rating C0r is used for examining permanent deformation under shock loads or stationary loads. The listed Cr values range widely from 1.23 to 13200 kN, and are larger for double-row types and larger diameters.

4. 4. Choose the type suited to the application

   Select shell types for space savings and solid types for high load and high rigidity. Select self-aligning types where shaft tilt is present, combined types with thrust bearings for fixed-side positions that also carry axial load, and cam followers for applications rolling along cams or rails.

5. 5. Match rotational speed with lubrication method

   The limiting speed varies with the lubrication method, and generally oil lubrication allows higher speeds than grease lubrication. Confirm that the operating speed is below the limiting speed for each lubrication condition.

6. 6. Consider sealing and operating environment

   In environments where foreign matter or moisture may enter, selecting contact-seal types such as RS or 2RS, or grease-packed types, helps retain lubricant and reduces relubrication effort. However, the seal increases rotational resistance and imposes limits on operating temperature, so these points should be considered.

This guide was written by AI based on the listed products' documents and specification items.

About Needle roller bearings and all products

Description

Flanged needle roller bearings without an inner ring. Types include NK, RNA and NKS; RNA 49 series is supplied with seals. Mounting-related dimensions (shaft shoulder diameter and chamfer dimensions) and seal compatibility are also shown.

FAQ

Q. What are the bore diameter, outside diameter and width ranges of the SKF Solid Needle Roller Bearing NK/RNA Series (model numbers NK / RNA / NKS)?

A. Roller inscribed circle diameter Fw is 5 to 25 mm, outside diameter D is 10 to 38 mm, and width C is 12 to 35 mm.

Q. Can SKF NK/RNA Series (NK / RNA / NKS) be used without an inner ring? What are the features when the shaft is used directly as the raceway?

A. It is a solid type without an inner ring, and the shaft is used directly as the raceway. The flange allows easy axial positioning.

Q. Are sealed types available in the SKF NK/RNA Series (RNA 49 series)? Please explain the RS and 2RS seals.

A. Sealed types with RS and 2RS seals are available. The RNA 49 series is supplied with seals.

Q. Where can the mounting dimensions of the SKF NK/RNA Series (NK / RNA / NKS) be checked?

A. Mounting-related dimensions (shaft shoulder diameter and chamfer dimensions) and seal compatibility are listed together in the product information.

Written by AI based on the content of the source documents.

Source documents

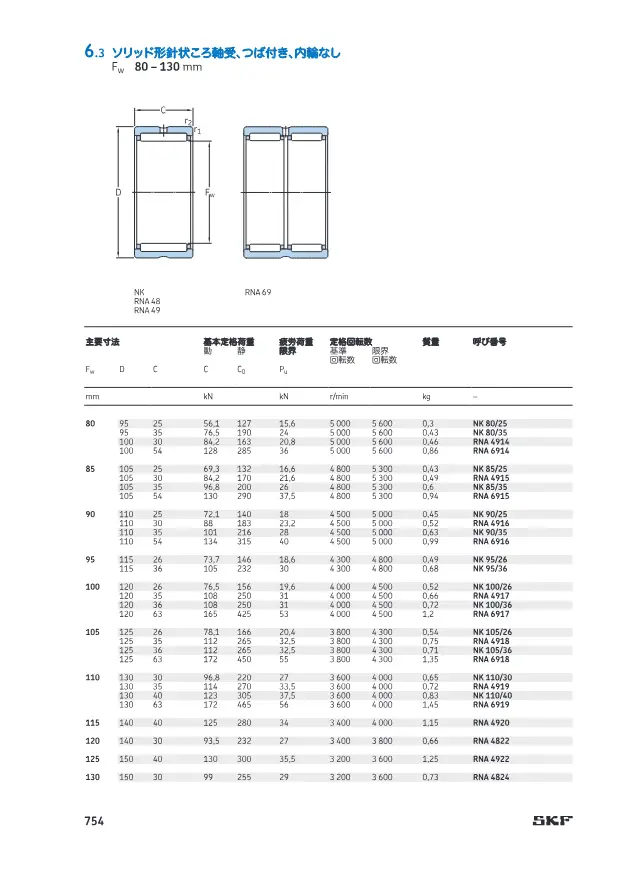

• Catalog 針状ころ軸受 (SKF 製品カタログ・技術資料抜粋) 124 pages Open page 83
