Single-Acting Rotary Seal (R19 Series)

Specifications

How to choose Rotary Seals

Points to check when selecting, with the values for this product (Single-Acting Rotary Seal (R19 Series)).

1. 1. Select a size that matches the shaft diameter

   This product: Applicable shaft diameter 5 to 400 mm

   Select seals to match the diameter of the shaft on which they are installed. Listed products cover a shaft diameter range of 5 to 1000 mm, and the applicable range differs by type. Shaft tolerance and surface roughness also affect sealing performance and wear, so check the recommended groove dimensions together with the shaft diameter.

2. 2. Confirm the peripheral speed is within the limit

   Sliding speed is evaluated as the peripheral speed calculated from shaft diameter and rotational speed. The listed upper limits range widely from 0.2 to 25 m/s, and higher speeds make lips and slide rings more prone to wear from frictional heat. Choose a product with a margin above the actual peripheral speed, for example from PTFE spring-loaded types recommended for low friction and high speed.

3. 3. Match the pressure rating and single- or double-acting design

   The maximum operating pressure of listed products is 5 to 400 bar. Springless lip seals are mainly intended for grease retention and foreign matter exclusion and are not suitable for high pressure. For rotary joints and rotary pivots subject to high pressure or pressure from both sides, consider double-acting PTFE seals combined with O-rings.

4. 4. Select materials suited to temperature and fluid

   Rubber-based materials such as NBR offer excellent elasticity, while PTFE offers superior chemical resistance, heat resistance and low friction. PTFE is often selected for chemical and pharmaceutical applications and high-temperature environments. Check that the O-ring material of the energizer is compatible with both the operating temperature range and the fluid used.

5. 5. Check the cross-section dimensions for the groove

   Cross-section dimensions range from 0.85 to 10.5 mm and must match the width and depth of the housing groove. When replacing existing equipment, match the cross-section dimensions as well as the shaft diameter, and confirm that the squeeze is appropriate.

6. 6. Determine whether a split design is required

   Split designs that can be divided into two halves are available for plummer blocks, allowing replacement without removing the shaft and reducing maintenance effort. When using a one-piece type, confirm during the design stage whether it can be inserted from the shaft end and whether chamfers or tooling are provided to avoid damaging the lip.

This guide was written by AI based on the listed products' documents and specification items.

About Rotary Seals and all products

Description

Single-acting rotary seal compatible with shaft diameters of 5 to 400 mm. Low friction, suitable for high-speed sliding. For bearing protection in the chemical and pharmaceutical industries. Material: SKF Ecoflon, stainless steel spring.

FAQ

Q. What shaft diameters can the R19 Series single-acting rotary seal be used with?

A. It is compatible with shaft diameters of 5 to 400 mm.

Q. What are the material and construction of the R19 Series?

A. The material is SKF Ecoflon and the spring is stainless steel. It is a PTFE single-acting rotary seal with spring assembly.

Q. Is the R19 Series suitable for high-speed applications?

A. It has low friction and is suitable for high-speed sliding.

Q. What applications is the R19 Series suitable for?

A. It is suitable for bearing protection in chemical and pharmaceutical industry applications. It also offers excellent chemical and heat resistance.

Written by AI based on the content of the source documents.

Source documents

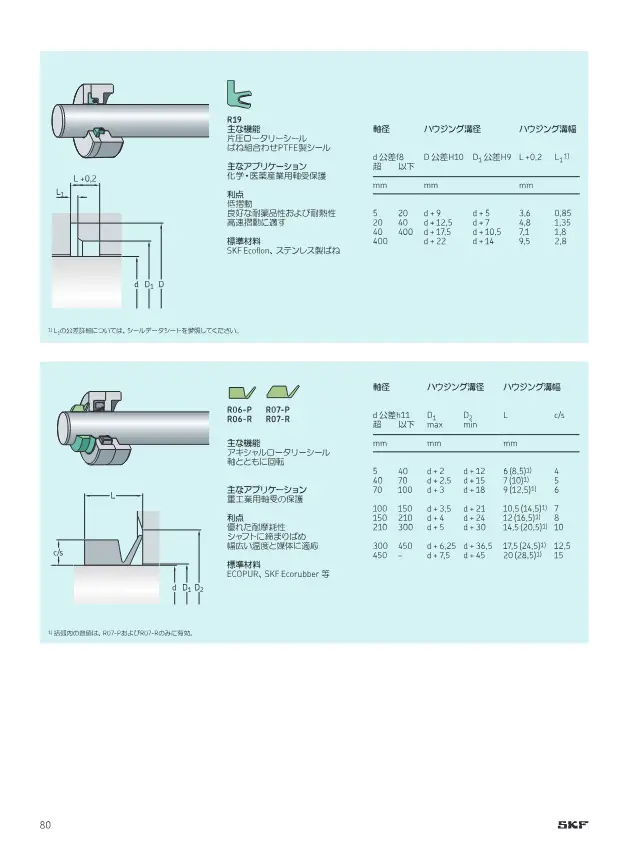

• Catalog 切削加工シール製品ラインアップ 84 pages Open page 80
