SKF Thermometer TKDT 10

Model TKDT 10 / TKDT / SKF (Official website) / Listed on page 107 of the document

Large LCD digital thermometer that connects two temperature probes. Displays two-point temperatures and temperature differences.

Last verified: (date the content was verified against the source document)

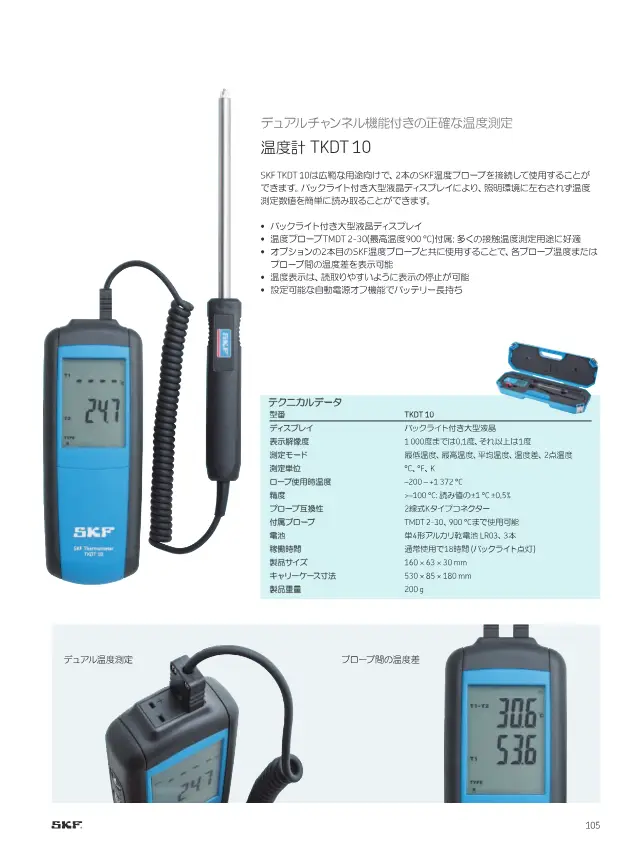

SKF Thermometer TKDT 10 on page 107 of SKF "SKFメンテナンス製品と潤滑製品"
Source: SKF「SKFメンテナンス製品と潤滑製品」page 107
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Measurement Temperature Range (When Using Probe) -200 ～ +1372 °C
Display resolution Up to 1000 degrees 0.1, above that 1 度
Operating Time 18 時間
Product size 160 × 63 × 30 mm
Product weight 200 g

Description

Large backlit LCD that measures minimum, maximum and average temperatures, temperature differences and more. Included probe TMDT 2-30 can be used up to 900 degrees. Typical operating time is 18 hours on three AAA alkaline batteries.

Features

  • Dual-channel measurement
  • Large backlit LCD
  • Auto power-off function

Applications

  • Machine temperature monitoring
  • Contact temperature measurement

FAQ

Q. Can the SKF Thermometer TKDT 10 measure two temperatures and temperature differences simultaneously?
A. Yes. It is a large LCD digital thermometer that connects two temperature probes and displays two-point temperatures and temperature differences. It supports dual-channel measurement.
Q. What is the measurement temperature range of the TKDT 10 and the maximum operating temperature of the included probe?
A. When using a probe, the measurement temperature range is -200 to +1372 °C. The included probe TMDT 2-30 can be used up to 900 degrees.
Q. Can the TKDT 10 display minimum, maximum and average temperatures?
A. Yes. It has a large backlit LCD and can measure minimum, maximum and average temperatures, temperature differences and more.
Q. What is the power source and operating time of the TKDT 10?
A. It operates on three AAA alkaline batteries. Typical operating time is 18 hours. It also has an auto power-off function.
Q. What are the display resolution and product size and weight of the TKDT 10?
A. The display resolution is 0.1 up to 1000 degrees and 1 degree above that. Product size is 160 × 63 × 30 mm and product weight is 200 g.

Written by AI based on the content of the source documents.
