Cut Ball

Specifications

How to choose Ball

Points to check when selecting, with the values for this product (Cut Ball).

1. 1. Select the material to suit the application

   Bearing steel is used for high-load bearings, stainless steel where corrosion resistance is required, and carbon steel for light-load, low-cost applications. For high-speed bearings or vacuum environments that require light weight, non-magnetic properties or electrical insulation, silicon nitride is suitable; resin and glass are candidates for applications in contact with chemicals or where anti-rust oil cannot be used.

2. 2. Determine the accuracy grade by required performance

   Grades are indicated as G3 to G1000 and others; a smaller number means smaller variation in sphericity and diameter. For low-noise, high-speed bearings such as machine tool spindles, select a smaller grade; for casters and light-load applications, select a larger grade to avoid over-specification.

3. 3. Check nominal diameter and inch designations

   The nominal diameters of listed products range from 0.3 to 101.6 mm. Many inch-based nominal diameters are also available, such as 1/4 inch = 6.35 mm, so confirm whether the design values are metric or inch, and specify a size that matches the raceway groove and cage dimensions.

4. 4. Evaluate rotational quality by sphericity and surface roughness

   Sphericity (2.5 to 25 μm for listed products) and surface roughness Ra (0.01 to 0.15 μm) directly affect vibration, noise and wear. When used as valve seals or reference spheres for measurement, confirm that these two values meet the required accuracy.

5. 5. Check hardness and operating temperature

   Hardness relates to wear resistance and resistance to indentation, and is indicated in HRC or HV. For high-temperature use, check the maximum operating temperature (288 to 1000 °C for listed products) and hot hardness. Cemented carbide and ceramics tend to retain hardness at high temperatures.

6. 6. Confirm whether secondary processing is possible

   Standard hardened steel balls are very hard, making drilling and welding difficult. For applications such as ball joints, where a shaft is welded to the ball or holes are drilled, select machinable products such as lightly carburized steel balls with shallower case depth, or cut balls with flat surfaces for retention.

This guide was written by AI based on the listed products' documents and specification items.

About Ball and all products

Description

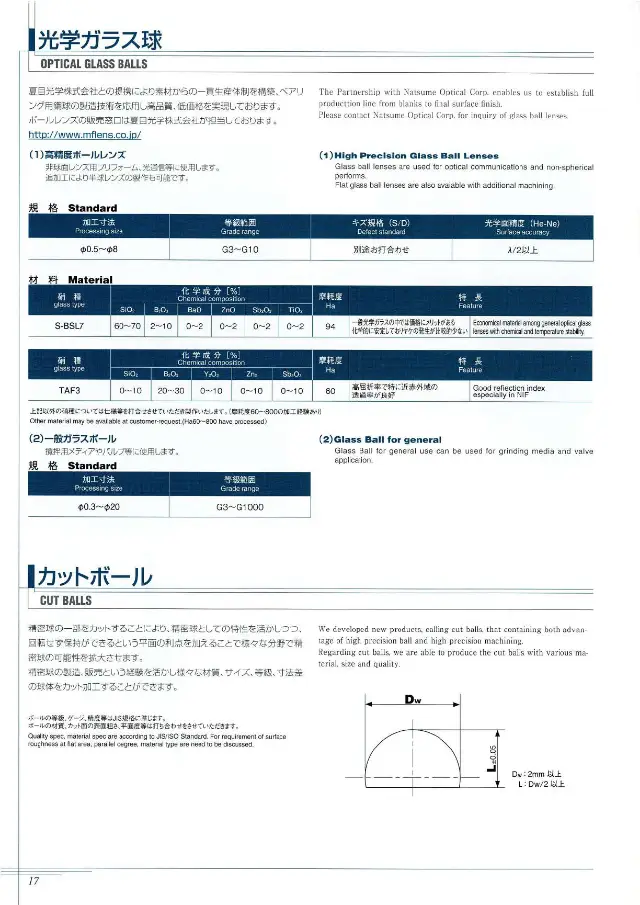

A product that combines the properties of a precision ball with the advantages of a flat surface, created by cutting away part of a precision ball. Material, size, grade, and dimensional tolerances are available upon consultation.

FAQ

Q. In what shape can a Cut Ball hold a flat surface?

A. It is a sphere with a portion of a precision ball cut away to provide a flat surface. The flat surface allows stable holding, and the properties of a precision ball are maintained.

Q. What are the minimum Dw and L dimensions of a Cut Ball?

A. The minimum Dw is 2 mm. The minimum L is Dw/2.

Q. What applications is the Cut Ball used for?

A. It is used for precision components in various fields.

Written by AI based on the content of the source documents.
