Frame 2U Type + Suspension Beam

Specifications

How to choose Masking hanger

Points to check when selecting, with the values for this product (Frame 2U Type + Suspension Beam).

1. 1. Determine hanging quantity to suit workpieces

   The number of workpieces that can be hung at once directly affects line throughput. Listed models allow 4 to 18 pieces per hanger. Determine the appropriate number per hanger from the workpiece size and the effective dimensions of the painting booth, and select a quantity that avoids uneven coating and contact caused by overcrowding.

2. 2. Check layout by socket count and pitch

   Socket-type hangers offer 4 to 30 sockets with pitches of 50 to 200 mm. If the pitch is narrower than the workpiece width, adjacent pieces will interfere and paint coverage will be poor. Confirm that the spacing allows a margin beyond the workpiece outer dimensions.

3. 3. Evaluate load capacity and contact area by wire diameter

   Wire and shaft diameters range from 1.5 to 12 mm. Thicker sections offer greater rigidity and suit heavy workpieces; heavy-duty shafts are intended for this application. Thinner sections reduce contact marks on workpieces and paint pooling. Select based on weight and finish requirements.

4. 4. Match overall length to oven and booth dimensions

   Listed models have an overall length of 1500 to 1530 mm. Check that the hanger fits the height of the drying oven or painting booth and the conveyor pitch. For frame types, also consider the overall footprint, including frame dimension L (1050 to 1550 mm) and tier count (7 to 14 tiers).

5. 5. Confirm hook wire diameter compatibility

   This product: Compatible Hook Wire Diameter 4 or less mm

   On beam types with exchangeable hooks, the usable hook wire diameter is fixed, and listed models use 4 mm. Verify in advance that existing hooks and future replacement parts are compatible, so that changes in workpiece shape can be handled by exchanging hooks alone.

6. 6. Plan for conductivity and removal of adhered paint

   For powder and electrodeposition coating, a structure with contacts placed on the inside to ensure electrical conduction is effective. Types with socket caps that prevent paint intrusion, and types with exchangeable inserts or hooks, allow replacement of only the portions where coating has built up, reducing the effort required for stripping.

This guide was written by AI based on the listed products' documents and specification items.

About Masking hanger and all products

Description

Suspension beams can be attached to and removed from the frame (width 830 mm, 2U type). Hooks with a wire diameter of φ4 or less can be attached. Contacts are located on the inside to ensure electrical conduction.

FAQ

Q. What applications can the Frame 2U Type + Suspension Beam be used for?

A. It is a hanger for paint masking. It is used by combining a frame with a beam-type suspension beam that allows hooks to be replaced.

Q. What are the dimensions and number of hanging points of the Frame 2U Type + Suspension Beam?

A. The number of frame tiers is 7 to 9, frame length L is 1050 to 1550 mm, and frame width is 830 mm. The number of hanging points is 11 to 16, and the beam pitch is 50 to 73 mm.

Q. Which hooks can be attached to the Frame 2U Type + Suspension Beam, and what is its material?

A. Applicable hook wire diameter is φ4 or less. Hooks with a wire diameter of φ4 or less can be attached. The material is iron.

Q. Can the suspension beam of the Frame 2U Type + Suspension Beam be attached and removed?

A. Yes, the suspension beam can be attached to and removed from the frame (width 830 mm, 2U type). Hooks can also be replaced.

Q. How is electrical conduction ensured in the Frame 2U Type + Suspension Beam?

A. The contacts are located on the inside, which ensures electrical conduction.

Written by AI based on the content of the source documents.

Source documents

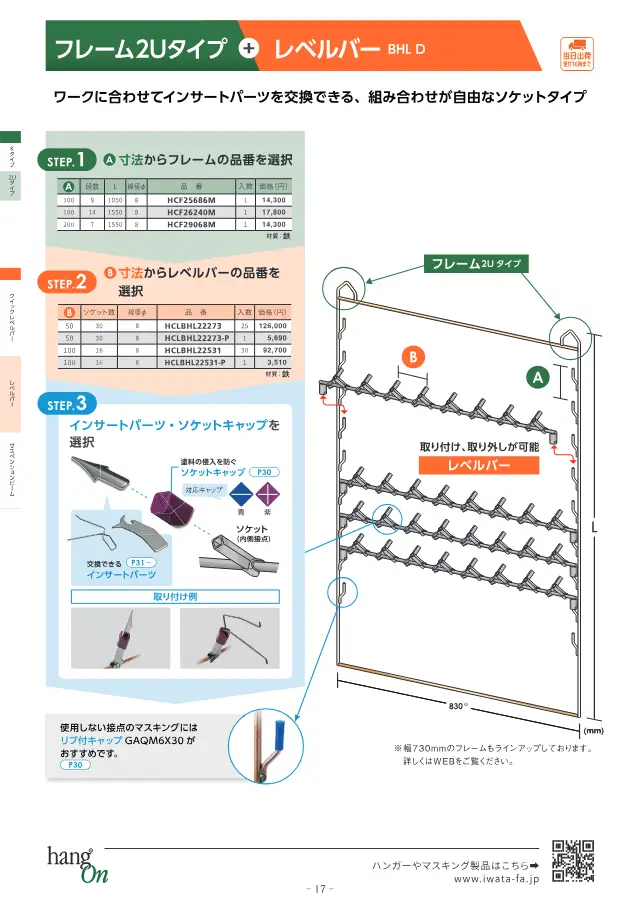

• Catalog 塗装治具 ハンガー選定ガイドブック 48 pages Open page 18
