Frame 2U Type + Quick Level Bar S90DV

Specifications

How to choose Masking hanger

Points to check when selecting, with the values for this product (Frame 2U Type + Quick Level Bar S90DV).

1. 1. Determine hanging quantity to suit workpieces

   The number of workpieces that can be hung at once directly affects line throughput. Listed models allow 4 to 18 pieces per hanger. Determine the appropriate number per hanger from the workpiece size and the effective dimensions of the painting booth, and select a quantity that avoids uneven coating and contact caused by overcrowding.

2. 2. Check layout by socket count and pitch

   Socket-type hangers offer 4 to 30 sockets with pitches of 50 to 200 mm. If the pitch is narrower than the workpiece width, adjacent pieces will interfere and paint coverage will be poor. Confirm that the spacing allows a margin beyond the workpiece outer dimensions.

3. 3. Evaluate load capacity and contact area by wire diameter

   This product: Wire diameter 1.5 mm

   Wire and shaft diameters range from 1.5 to 12 mm. Thicker sections offer greater rigidity and suit heavy workpieces; heavy-duty shafts are intended for this application. Thinner sections reduce contact marks on workpieces and paint pooling. Select based on weight and finish requirements.

4. 4. Match overall length to oven and booth dimensions

   Listed models have an overall length of 1500 to 1530 mm. Check that the hanger fits the height of the drying oven or painting booth and the conveyor pitch. For frame types, also consider the overall footprint, including frame dimension L (1050 to 1550 mm) and tier count (7 to 14 tiers).

5. 5. Confirm hook wire diameter compatibility

   On beam types with exchangeable hooks, the usable hook wire diameter is fixed, and listed models use 4 mm. Verify in advance that existing hooks and future replacement parts are compatible, so that changes in workpiece shape can be handled by exchanging hooks alone.

6. 6. Plan for conductivity and removal of adhered paint

   For powder and electrodeposition coating, a structure with contacts placed on the inside to ensure electrical conduction is effective. Types with socket caps that prevent paint intrusion, and types with exchangeable inserts or hooks, allow replacement of only the portions where coating has built up, reducing the effort required for stripping.

This guide was written by AI based on the listed products' documents and specification items.

About Masking hanger and all products

Description

Configuration in which the quick level bar can be attached to and removed from the frame (width 830 mm, 2U type). Equipped with hooks, and the number of tiers can be changed to suit the workpiece. Hooks cannot be replaced.

FAQ

Q. How many tiers can the Frame 2U Type + Quick Level Bar S90DV be changed to?

A. The frame has 7 to 14 tiers.

Q. What are the dimensions and number of hangers for the Frame 2U Type + Quick Level Bar S90DV?

A. Frame length L is 1050 to 1550 mm and frame width is 830 mm. The number of quick level bar hangers is 7 to 10, and the level bar pitch is 75 to 100 mm.

Q. What are the material and wire diameter of the Frame 2U Type + Quick Level Bar S90DV?

A. The material is iron and the wire diameter is 1.5 mm.

Q. Can the hooks of the Frame 2U Type + Quick Level Bar S90DV be replaced?

A. No, the hooks cannot be replaced.

Q. What paint masking applications is the Frame 2U Type + Quick Level Bar S90DV used for?

A. It is used for paint masking. It is ready to use immediately with hooks, and the number of tiers can be changed to suit the workpiece.

Written by AI based on the content of the source documents.

Source documents

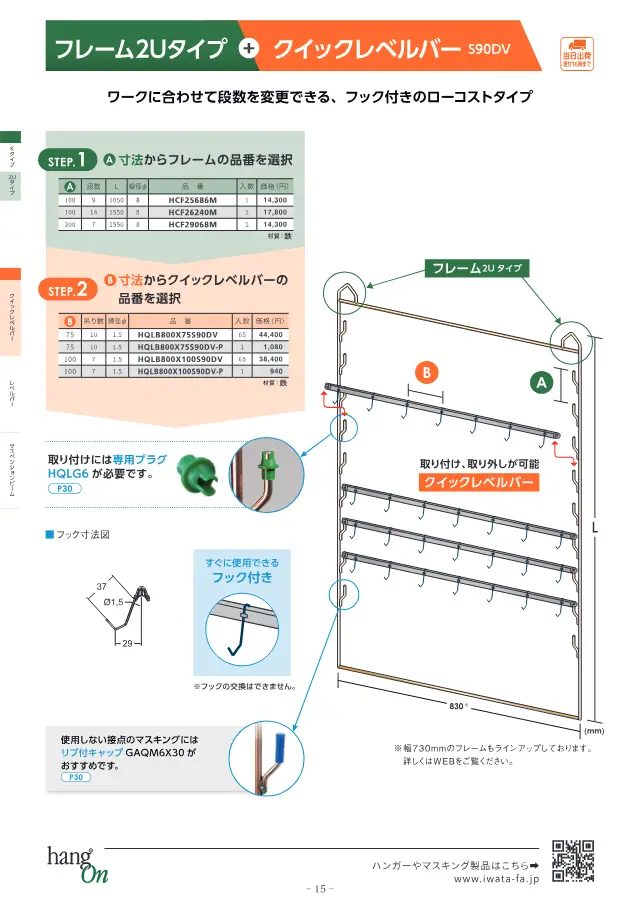

• Catalog 塗装治具 ハンガー選定ガイドブック 48 pages Open page 16
