Full Complement Cylindrical Roller Bearing (Sealed Type for Crane Sheave)

Specifications

How to choose Cylindrical Roller Bearings

Points to check when selecting, with the values for this product (Full Complement Cylindrical Roller Bearing (Sealed Type for Crane Sheave)).

1. 1. Boundary dimensions that fit the shaft and housing

   This product: Inner diameter d 40～380 mm

   Select the bore diameter d to match the shaft diameter and the outside diameter D to match the housing bore, and determine the width B from the available installation space. Even with the same bore, there are dimension series with different outside diameters and widths, and wide-section types and types with thicker outer ring walls also exist. Confirm the boundary dimensions d×D×B combination against the bearing number.

2. 2. Select a rated load that suits the load conditions

   The basic dynamic load rating Cr is the basis for life calculation; calculate whether the required life is met from the actual load and rotational speed. For large loads at standstill or low speed, or for shock loads, also check the basic static load rating C0r. Wide-section, double-row and full-complement types are options when greater load capacity is needed.

3. 3. Determine the type for fixed and free positions

   NU and N types allow relative axial movement between the inner and outer rings, making them suitable for the free side that absorbs thermal expansion of the shaft. If axial load is applied, choose NJ or NF types for one direction, or NUP types for both directions. First determine which bearing in the overall bearing arrangement locates the shaft axially.

4. 4. Select a clearance that suits fit and temperature

   Internal clearance is available in classes such as C2, CN and C3. Consider a larger clearance class where an interference fit or a temperature difference between inner and outer rings reduces the clearance during operation. Tapered bore double-row types allow clearance adjustment by the amount of push-in and are used in applications with strict clearance control, such as machine tool spindles.

5. 5. Match rotational speed with cage and accuracy grade

   For high-speed rotation, check the permissible rotational speed as well as the cage material (brass, steel sheet or resin) and the accuracy class. Full-complement types without cage have high load capacity but are unsuitable for high speed. Hybrid types with silicon nitride rollers offer low friction and support high-speed rotation.

6. 6. Check electrical erosion countermeasures and maintainability

   In inverter-driven motors and generators, current can flow through the bearing causing electrical erosion, so consider insulated-coated or ceramic-roller types. For outdoor use or locations that are difficult to lubricate, also check for sealed, grease-packed designs, rust-preventive treatment, and ease of disassembly and inspection.

This guide was written by AI based on the listed products' documents and specification items.

About Cylindrical Roller Bearings and all products

Description

Pre-packed with grease and equipped with shields (rubber seals also available). The surface is treated with phosphate coating for rust prevention.

FAQ

Q. What applications can the DC5000 Series Full Complement Cylindrical Roller Bearing (Sealed Type for Crane Sheave) be used for?

A. It is a sealed full complement cylindrical roller bearing with shields, optimally designed for crane sheave applications.

Q. What is the bore diameter range of the DC5000 Series?

A. The bore diameter d is 40 to 380 mm.

Q. Is grease sealed in the DC5000 Series?

A. It is pre-packed with grease.

Q. Do the shields of the DC5000 Series support rubber seals?

A. It has shields, and rubber seals are also available.

Q. What rust-prevention treatment is applied to the surface of the DC5000 Series?

A. The surface is treated with phosphate coating for rust prevention.

Written by AI based on the content of the source documents.

Source documents

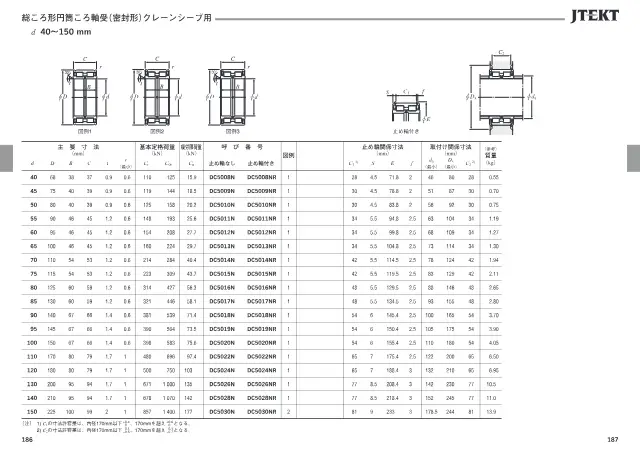

• Catalog JTEKT 大形転がり軸受カタログ（技術解説・軸受寸法表） Open page 97
