Wide-Type Cylindrical Roller Bearing (T99 Series for Line Shafts)

How to choose Cylindrical Roller Bearings

Points to check when selecting, with the values for this product (Wide-Type Cylindrical Roller Bearing (T99 Series for Line Shafts)).

1. 1. Boundary dimensions that fit the shaft and housing

   Select the bore diameter d to match the shaft diameter and the outside diameter D to match the housing bore, and determine the width B from the available installation space. Even with the same bore, there are dimension series with different outside diameters and widths, and wide-section types and types with thicker outer ring walls also exist. Confirm the boundary dimensions d×D×B combination against the bearing number.

2. 2. Select a rated load that suits the load conditions

   The basic dynamic load rating Cr is the basis for life calculation; calculate whether the required life is met from the actual load and rotational speed. For large loads at standstill or low speed, or for shock loads, also check the basic static load rating C0r. Wide-section, double-row and full-complement types are options when greater load capacity is needed.

3. 3. Determine the type for fixed and free positions

   NU and N types allow relative axial movement between the inner and outer rings, making them suitable for the free side that absorbs thermal expansion of the shaft. If axial load is applied, choose NJ or NF types for one direction, or NUP types for both directions. First determine which bearing in the overall bearing arrangement locates the shaft axially.

4. 4. Select a clearance that suits fit and temperature

   Internal clearance is available in classes such as C2, CN and C3. Consider a larger clearance class where an interference fit or a temperature difference between inner and outer rings reduces the clearance during operation. Tapered bore double-row types allow clearance adjustment by the amount of push-in and are used in applications with strict clearance control, such as machine tool spindles.

5. 5. Match rotational speed with cage and accuracy grade

   For high-speed rotation, check the permissible rotational speed as well as the cage material (brass, steel sheet or resin) and the accuracy class. Full-complement types without cage have high load capacity but are unsuitable for high speed. Hybrid types with silicon nitride rollers offer low friction and support high-speed rotation.

6. 6. Check electrical erosion countermeasures and maintainability

   In inverter-driven motors and generators, current can flow through the bearing causing electrical erosion, so consider insulated-coated or ceramic-roller types. For outdoor use or locations that are difficult to lubricate, also check for sealed, grease-packed designs, rust-preventive treatment, and ease of disassembly and inspection.

This guide was written by AI based on the listed products' documents and specification items.

About Cylindrical Roller Bearings and all products

Description

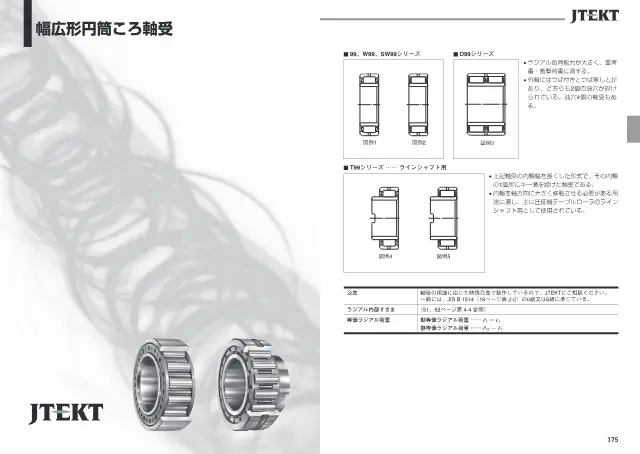

For applications requiring large axial movement of the inner ring. Mainly used for line shafts of rolling mill table rollers.

FAQ

Q. What applications is the Wide-Type Cylindrical Roller Bearing T99 Series used for?

A. It is mainly used for line shafts of rolling mill table rollers. It is intended for applications requiring large axial movement of the inner ring.

Q. What are the features of the inner ring of the T99 Series?

A. The inner ring width is extended, and a keyway is provided in the inner ring. It is suitable for applications requiring axial movement of the inner ring.

Written by AI based on the content of the source documents.
