LWL Series Linear Bearing (Roller Type EXSEV Linear Bearing)

LWL / LWLF / LWLC / LWLG / JTEKT Corporation (Official website) / Listed on page 46 of the document

EXSEV linear bearing series with rail widths from 5 mm to 42 mm. Basic load ratings and moment values are listed by model number.

Last verified: (date the content was verified against the source document)

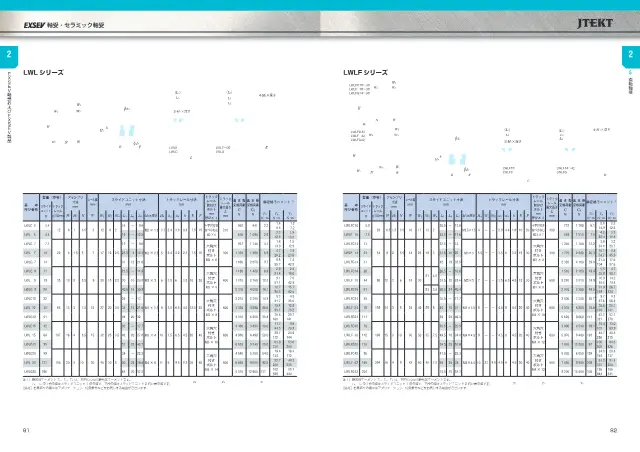

LWL Series Linear Bearing (Roller Type EXSEV Linear Bearing) on page 46 of JTEKT Corporation "特殊環境用軸受シリーズ 軸受・セラミック軸受 (EXSEV Bearings and CERAMIC Bearings for Extreme Special Environments)"
Source: JTEKT Corporation「特殊環境用軸受シリーズ 軸受・セラミック軸受 (EXSEV Bearings and CERAMIC Bearings for Extreme Special Environments)」page 46
A reduced image of the relevant page is quoted from the document. Copyright belongs to JTEKT Corporation.Request removal

Specifications

Rail Width W1 5～42 mm
Basic dynamic load rating C 5970 N
Basic static load rating C0 8440 N
Maximum Rail Length 600 mm

How to choose Linear guides

Points to check when selecting, with the values for this product (LWL Series Linear Bearing (Roller Type EXSEV Linear Bearing)).

  1. 1. Select rated load from load and life

    This product: Basic dynamic load rating C 5970 N

    The basic dynamic load rating C is the basis for rolling life calculation. Estimate the load on each block, inertial force during acceleration and deceleration, and moment loads, then select a model number with a C that meets the required travel life. When using multiple blocks, also consider load distribution.

  2. 2. Allow margin for static load and shock

    This product: Basic static load rating C0 8440 N

    The basic static load rating C0 is a guideline for the limit beyond which permanent deformation of the rolling surfaces occurs during stopping or under shock loads. Secure a safety factor against the maximum load, and when moment loads are applied, also check the static moment rating.

  3. 3. Determine size series by rail width

    This product: Rail Width W1 5～42 mm

    Rail width W1 is the reference for the size series, and listed products range from 5 to 42 mm. Greater width increases load capacity and rigidity, but also increases mounting space and mass. Select an appropriate width based on both load conditions and the dimensional constraints of the equipment.

  4. 4. Verify assembly height and block width against drawings

    Assembly height H is the height from the mounting surface to the top of the block and directly affects table height and interference with other components. Block width W also affects the mounting space on the table side, so verify dimensions together with the block type (flange or block type).

  5. 5. Check rail length against required stroke

    This product: Maximum Rail Length 600 mm

    Confirm that the required stroke plus block length and allowances such as stoppers fits within the maximum rail length that can be manufactured. If it does not fit, also consider whether spliced rails are possible. Mounting hole pitch F is needed for hole machining design on the mounting surface.

  6. 6. Select material suited to the environment

    For cleanroom, vacuum, or corrosive environments, or equipment that must avoid magnetism, specifications using stainless steel or ceramics are options. Organize requirements for particle generation, lubricant evaporation, corrosion resistance, and non-magnetic properties, and confirm material and lubrication specifications.

This guide was written by AI based on the listed products' documents and specification items.

About Linear guides and all products

Description

Covers the LWL, LWLF, LWLC, and LWLG series, listing dimensions, mass, basic dynamic load rating, basic static load rating, and static rated moments for slide units and track rails. LWLF has mounting bolts from M2.5 to M4, while LWLFC and LWLFG feature various slide unit shapes.

Features

  • Wide range of sizes with rail widths from 5 mm to 42 mm
  • Corrosion resistance and non-magnetic properties from ceramic and stainless steel materials
  • Static rated moments indicated as To, Tx, and TY

Applications

  • Machine tools
  • Semiconductor and liquid crystal manufacturing equipment
  • Vacuum and clean environment equipment

FAQ

Q. What is the range of rail width for the LWL Series (Roller Type EXSEV Linear Bearing)?
A. The rail width W1 ranges from 5 to 42 mm.
Q. Which materials provide the corrosion resistance and non-magnetic properties of the LWL Series?
A. The corrosion resistance and non-magnetic properties are provided by ceramic and stainless steel materials.
Q. What applications is the LWL Series used for?
A. It is used in machine tools, semiconductor and liquid crystal manufacturing equipment, and vacuum and clean environment equipment.
Q. What are the mounting bolt sizes for the LWLF Series, and what shapes do LWLFC and LWLFG have?
A. Mounting bolts for LWLF range from M2.5 to M4. LWLFC and LWLFG feature various slide unit shapes.
Q. What are the basic dynamic load rating C, basic static load rating C0, and maximum rail length of the LWL Series?
A. Basic dynamic load rating C is 5970 N, basic static load rating C0 is 8440 N, and maximum rail length is 600 mm. Values for each model number are listed in the product information.

Written by AI based on the content of the source documents.
