DS Series Compression Coil Spring

Specifications

DSシリーズ model comparison

Compare 2 models in the same series by specification.

How to choose Compression Coil Springs

Points to check when selecting, with the values for this product (DS Series Compression Coil Spring).

1. 1. Select by required load and spring rate

   The spring rate is the load required to deflect the spring by 1 mm. Multiplying the difference between installed and operating length by the spring rate gives the estimated load generated. Check whether the target load can be achieved within that deflection range, and narrow down candidates by spring rate value.

2. 2. Outside or inside diameter to fit the bore or shaft

   This product: Outer diameter D 3.0–11.0 mm

   Check the outside diameter when the spring fits into a bore, and the inside diameter when it fits over a shaft. Because the coil diameter slightly increases under compression, allow clearance to the bore or shaft. The outside diameters of the listed products range from 3 to 11 mm.

3. 3. Match free length to installation space

   Free length is the length under no load. The difference from the installed length is the initial deflection, which determines the preload force. Slender springs are prone to buckling (bending sideways), so also consider whether a guide rod or guide bore is needed.

4. 4. Do not exceed maximum allowable deflection and load

   Confirm that the maximum operating stroke stays within the maximum allowable deflection and does not reach solid height. Using the spring beyond the allowable value can cause set (permanent deformation) or fatigue failure. Allow a margin in applications with repeated operation.

5. 5. Choose material to suit the environment

   This product: Material Stainless steel wire SUS304WPB

   SUS304WPB offers corrosion resistance and, in the listed examples, can be used at -30 to +200 °C. Piano wire and oil-tempered wire suit applications that benefit from high strength, but they rust easily, so check whether surface treatment or rust prevention is required.

6. 6. End shape that affects seating

   Springs with ground ends have flat seating surfaces, so the load acts straight along the axis and the spring is less likely to tilt. For applications such as dies and jigs that require stable posture, check whether grinding is specified.

This guide was written by AI based on the listed products' documents and specification items.

About Compression Coil Springs and all products

Description

Compression coil spring made of SUS304WPB stainless steel wire, based on the dimensions of the D Series. Operating temperature range is -30°C to +200°C. Permissible load is displayed as a guideline for use.

FAQ

Q. What are the material and operating temperature range of the DS Series Compression Coil Spring?

A. The material is SUS304WPB stainless steel wire. The operating temperature range is -30°C to +200°C.

Q. What are the wire diameter and outer diameter ranges of the DS Series Compression Coil Spring?

A. The wire diameter is 0.5 to 5.0 mm and the outer diameter is 3.0 to 11.0 mm.

Q. Is the DS Series Compression Coil Spring dimensionally interchangeable with the D Series?

A. Yes. It is based on the piano wire standard dimensions of the D Series, with the material changed to stainless steel wire, and is dimensionally interchangeable with the D Series.

Q. What applications is the DS Series Compression Coil Spring suited for?

A. It is suited for general machinery and applications requiring corrosion resistance. Permissible load is displayed as a guideline for use.

Written by AI based on the content of the source documents.

Source documents

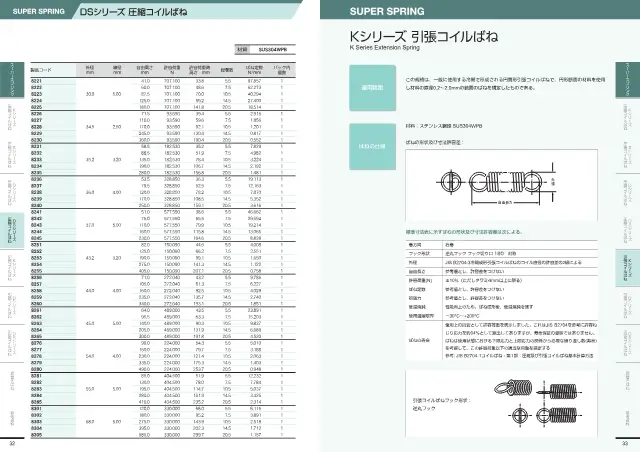

• Catalog SUPER SPRING 総合カタログ 40 pages Open page 18
