Bearee™ FL9000 High Surface Pressure Sliding Sheet

Model FL9000 / ベアリーFL9000 / NTN Corporation (Official website) / Listed on page 24 of the document

A self-lubricating composite sliding material consisting of metal mesh coated with special fluororesin. It can be bonded to metal and used in low-speed, high surface pressure operation.

Last verified: (date the content was verified against the source document)

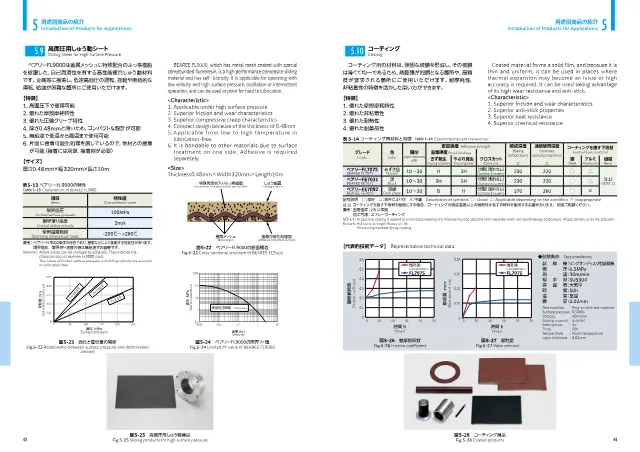

Bearee™ FL9000 High Surface Pressure Sliding Sheet on page 24 of NTN Corporation "エンジニアリング・プラスチック製しゅう動部品 ベアリー™"
Source: NTN Corporation「エンジニアリング・プラスチック製しゅう動部品 ベアリー™」page 24
A reduced image of the relevant page is quoted from the document. Copyright belongs to NTN Corporation.Request removal

Specifications

Thickness 0.48 mm
Width 320 mm
Length 10 m
Limiting surface pressure 100 MPa
Limiting sliding speed 2 m/s
Operating Temperature Range -200～+260 ℃

How to choose Plain Bearings

Points to check when selecting, with the values for this product (FL9000).

  1. 1. Select dimensions that fit the shaft diameter and housing bore

    Match the inside diameter d to the shaft diameter and the outside diameter D to the housing bore diameter. Listed products have inside diameters of 3 to 70 mm and outside diameters of 5 to 80 mm. When press-fitting, allow for the bearing shrinking during installation, which reduces the inside diameter. Also check the shaft and housing tolerances recommended by the manufacturer.

  2. 2. Verify bearing pressure and speed using the PV value

    Confirm that the PV value, which is the product of bearing pressure (load divided by projected area) and sliding speed, does not exceed the limiting PV value. The limiting PV value of listed products is 400 MPa·m/min. The individual limits for bearing pressure alone (3 to 10 MPa) and for sliding speed alone (150 m/min) must also be satisfied.

  3. 3. Determine the length according to the load

    Increasing the length L increases the projected area and lowers the bearing pressure. However, if the length is too great, shaft deflection tends to concentrate the load at the ends, causing edge loading. Listed products have lengths of 3 to 60 mm, so select a length that keeps the bearing pressure within the limit.

  4. 4. Select a material suited to the operating environment

    For underwater or chemical-liquid use, choose a material with chemical resistance and wear resistance in liquid. Where static electricity is a concern, choose a conductive material. Wear of the mating material also varies with the material and hardness of the mating shaft. If antistatic performance is required, also check the volume resistivity.

  5. 5. Check temperature and operating clearance

    Resin bearings expand as temperature rises, which reduces clearance. In addition to the maximum operating temperature (300 to 350 °C) and continuous operating temperature (260 °C), maintain the recommended minimum operating clearance (0.095 to 0.195 mm).

  6. 6. Match the lubrication method to the maintenance conditions

    Whether a bearing can run without lubrication, or requires oil-impregnated or external lubrication, affects maintenance effort and the risk of contamination in the surroundings. Greaseless types are suitable for food machinery and clean environments. For use in vacuum, also check the usable vacuum level and low outgassing performance.

This guide was written by AI based on the listed products' documents and specification items.

About Plain Bearings and all products

Description

A sheet measuring 0.48mm thick, 320mm wide and 10m long, with an adhesion-enabling treatment applied to one side. Limiting surface pressure is 100MPa, limiting sliding speed is 2m/s, and the operating temperature range is -200 to +260°C.

Features

  • Usable under high surface pressure
  • Excellent compressive creep characteristics
  • Thin (0.48mm) and compact design possible
  • Usable from low to high temperatures without lubrication

Applications

  • Low-speed, high surface pressure operating parts
  • Oscillating and intermittent operating parts
  • Locations where lubrication is difficult

FAQ

Q. What are the limiting surface pressure and limiting sliding speed of FL9000?
A. The limiting surface pressure is 100MPa and the limiting sliding speed is 2m/s. It can be used in low-speed, high surface pressure operating parts.
Q. What is the operating temperature range of FL9000 and can it be used without lubrication?
A. The operating temperature range is -200 to +260°C. It can be used from low to high temperatures without lubrication.
Q. What are the dimensions of the Bearee FL9000 sheet and which side can be bonded?
A. The sheet measures 0.48mm thick, 320mm wide and 10m long, with an adhesion-enabling treatment applied to one side. It is used by bonding to metal.
Q. What applications is FL9000 suited for?
A. It is suited for low-speed, high surface pressure operating parts, oscillating and intermittent operating parts, and locations where lubrication is difficult.

Written by AI based on the content of the source documents.
