Bearee™ Resin Rolling Bearing (FL3307 Bearing)
NTN樹脂転がり軸受 / NTN Corporation (Official website) / Listed on page 26 of the document
A rolling bearing with inner and outer rings and cage made of resin materials offering corrosion resistance and self-lubricating properties. Suitable for environments where steel bearings cannot be used, such as underwater or in chemical solutions.
Last verified: (date the content was verified against the source document)

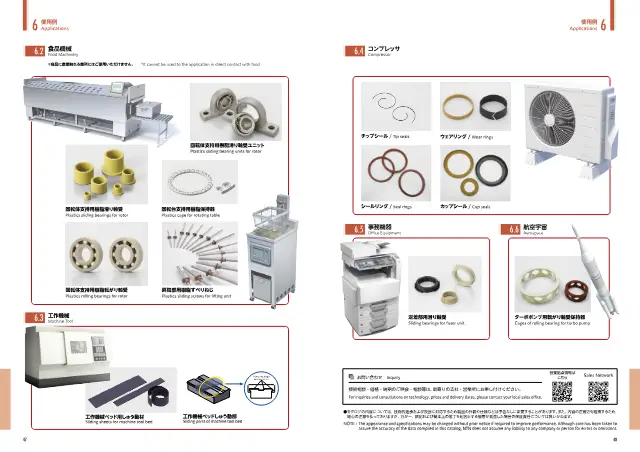

A reduced image of the relevant page is quoted from the document. Copyright belongs to NTN Corporation.Request removal
Specifications
| Standard Size | 6000 to 6006, 6200 to 6206 |
|---|
How to choose Rolling Bearings
Points to check when selecting, with the values for this product (Bearee™ Resin Rolling Bearing (FL3307 Bearing)).
-
1. Bore and housing bore dimensions
Select the bore diameter d to match the shaft seat, the outside diameter D to match the housing bore, and the width B to suit the installation space. Main dimensions are standardized in ISO and JIS dimension series, so interchangeable products can be found by boundary dimension designation. For tapered roller bearings, also check the assembled width T; for thrust bearings, also check the height H.
-
2. Dynamic load rating based on life calculation
The basic dynamic load rating Cr is the reference value for calculating rated life. Verify that the required life is met using the equivalent load during operation and the rotational speed. For ball bearings, life is proportional to the cube of the load ratio, so providing load margin greatly extends life.
-
3. Margin for static and shock loads
The basic static load rating C0r is the allowable standard for permanent deformation generated at the rolling elements and raceways under stationary or low-speed conditions. For applications with oscillating motion or shock loads, confirm that a static safety factor against the maximum load is secured using C0r.
-
4. Operating speed and lubrication method
The limiting speed differs by lubrication method, and separate values are given for grease lubrication and oil lubrication. Confirm that the normal operating speed does not exceed the limiting value, and in high-speed ranges also consider cage material and precision grade. The reference speed can also be consulted as a thermal guideline.
-
5. Precision grade and internal clearance
Precision grades (P0, P6, P5, etc.) indicate rotational accuracy and dimensional accuracy; for high-precision applications such as machine tool spindles, select higher grades. Internal clearance (C2, CN, C3, etc.) is selected to allow for changes caused by interference fit and temperature differences during operation.
-
6. Materials and lubrication suited to the environment
For corrosive, high-temperature, vacuum, or clean environments, select specifications such as rings and rolling elements made of stainless steel or ceramics, or solid lubricants and fluorine grease for vacuum use. Check the operating temperature range, low dust generation, and whether food-grade grease registration applies against the application conditions.
This guide was written by AI based on the listed products' documents and specification items.
Description
Uses alumina for the balls and polyamide or FL3700 for the cage. Lighter than steel rolling bearings and lower in torque than plain bearings. Standard sizes are available in the 6000 and 6200 series.
Features
- Excellent water and chemical resistance
- Rust-preventive properties
- Can be used without lubrication
- Lighter than steel bearings (weight ratio 1/4)
Applications
- Rotating components used underwater or in chemical solutions
- Rotating shaft support in office equipment
FAQ
- Q. Can the Bearee™ Resin Rolling Bearing (FL3307 Bearing) be used underwater or in chemical solutions?
- A. The inner and outer rings and cage are made of resin materials with corrosion resistance and self-lubricating properties, giving excellent water and chemical resistance. It is suitable for environments where steel bearings cannot be used, such as underwater or in chemical solutions.
- Q. What materials are used for the rolling elements and cage of the FL3307 Bearing?
- A. Alumina is used for the balls, and polyamide or FL3700 is used for the cage.
- Q. How much lighter is the FL3307 Bearing compared to steel bearings, and does it require lubrication?
- A. It is lighter than steel rolling bearings, with a weight ratio of 1/4. It can be used without lubrication.
- Q. What are the standard sizes and main applications of the FL3307 Bearing?
- A. Standard sizes are 6000 to 6006 and 6200 to 6206. It is used for rotating components in underwater or chemical solution environments and for rotating shaft support in office equipment.
Written by AI based on the content of the source documents.
Source documents
- Catalog エンジニアリング・プラスチック製しゅう動部品 ベアリー™ 26 pages Open page 26
