Non-Separable Race-Integrated Thrust Needle Roller Bearing

How to choose Rolling Bearings

Points to check when selecting, with the values for this product (Non-Separable Race-Integrated Thrust Needle Roller Bearing).

1. 1. Bore and housing bore dimensions

   Select the bore diameter d to match the shaft seat, the outside diameter D to match the housing bore, and the width B to suit the installation space. Main dimensions are standardized in ISO and JIS dimension series, so interchangeable products can be found by boundary dimension designation. For tapered roller bearings, also check the assembled width T; for thrust bearings, also check the height H.

2. 2. Dynamic load rating based on life calculation

   The basic dynamic load rating Cr is the reference value for calculating rated life. Verify that the required life is met using the equivalent load during operation and the rotational speed. For ball bearings, life is proportional to the cube of the load ratio, so providing load margin greatly extends life.

3. 3. Margin for static and shock loads

   The basic static load rating C0r is the allowable standard for permanent deformation generated at the rolling elements and raceways under stationary or low-speed conditions. For applications with oscillating motion or shock loads, confirm that a static safety factor against the maximum load is secured using C0r.

4. 4. Operating speed and lubrication method

   The limiting speed differs by lubrication method, and separate values are given for grease lubrication and oil lubrication. Confirm that the normal operating speed does not exceed the limiting value, and in high-speed ranges also consider cage material and precision grade. The reference speed can also be consulted as a thermal guideline.

5. 5. Precision grade and internal clearance

   Precision grades (P0, P6, P5, etc.) indicate rotational accuracy and dimensional accuracy; for high-precision applications such as machine tool spindles, select higher grades. Internal clearance (C2, CN, C3, etc.) is selected to allow for changes caused by interference fit and temperature differences during operation.

6. 6. Materials and lubrication suited to the environment

   For corrosive, high-temperature, vacuum, or clean environments, select specifications such as rings and rolling elements made of stainless steel or ceramics, or solid lubricants and fluorine grease for vacuum use. Check the operating temperature range, low dust generation, and whether food-grade grease registration applies against the application conditions.

This guide was written by AI based on the listed products' documents and specification items.

About Rolling Bearings and all products

Description

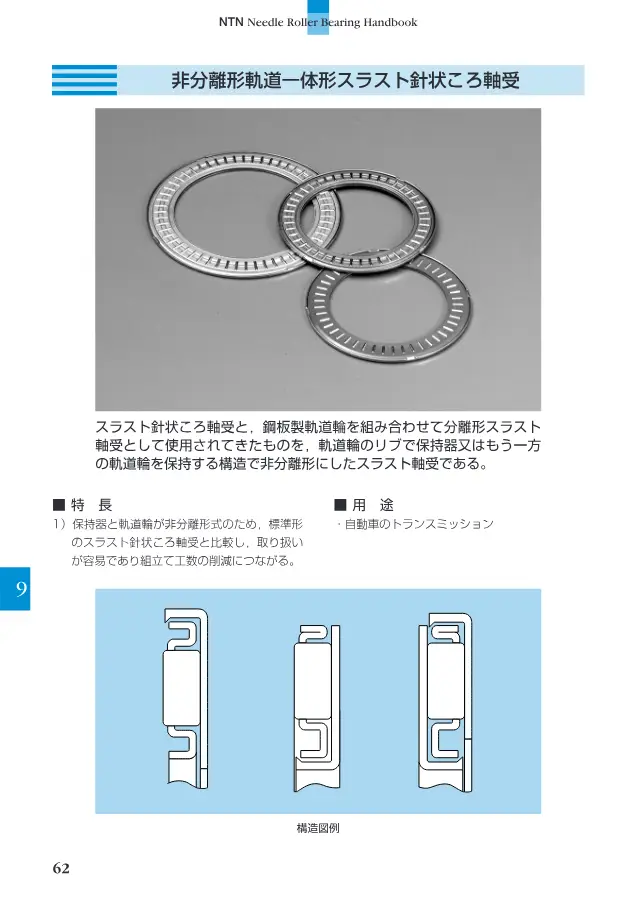

The combination previously used as a separable type has been made non-separable by a structure in which the ribs of the race retain the cage and the other race. This makes handling easier and reduces assembly man-hours.

FAQ

Q. What structure does the Non-Separable Race-Integrated Thrust Needle Roller Bearing use to retain the cage?

A. It is a non-separable thrust needle roller bearing in which the cage is retained by the ribs of a steel plate race. The cage and race are of non-separable design.

Q. How does the Non-Separable Race-Integrated Thrust Needle Roller Bearing differ from conventional separable types, and what handling and assembly advantages does it offer?

A. The combination previously used as a separable type has been made non-separable by a structure in which the ribs of the race retain the cage and the other race. This makes handling easier and reduces assembly man-hours.

Q. In which applications is the Non-Separable Race-Integrated Thrust Needle Roller Bearing used?

A. It is used in automotive transmissions.
