Grease Gun 1077600

Specifications

TLGH model comparison

Compare 3 models in the same series by specification.

How to choose Grease gun

Points to check when selecting, with the values for this product (1077600).

1. 1. Select a drive method that suits the workload

   Manual lever type is lightweight and requires no power source, but the operator's burden increases when there are many lubrication points. Electric type can dispense continuously at a constant flow rate and suits sites where many lubrication points are visited. Some listed electric models feature two-stage flow rates of low and high speed, or an alarm that signals nipple clogging.

2. 2. Dispensing pressure that reaches seized nipples

   This product: Maximum Discharge Pressure 400 bar

   High pressure is required for nipples where old grease has hardened, or for narrow lubrication paths. The maximum dispensing pressure during continuous use of the listed products is 300 to 400 bar, and some electric models reach 700 bar momentarily. Check that the pressure matches the resistance of the lubrication path at the point of application.

3. 3. Understand the output per operation

   This product: Discharge volume per stroke Approx. 1.5 cm3

   Because the prescribed lubrication amount for each bearing is managed by the number of lever strokes, check the dispensed volume per stroke. The listed products range from 0.46 to 1.5 cm3, so lower-volume models suit fine adjustment of small amounts, while higher-volume models suit completing large-volume lubrication in a short time.

4. 4. Check capacity and filling method

   This product: Grease capacity Approx. 500 cm3

   Grease capacity determines how often refilling is needed. The listed product has a capacity of 500 cm3. Also check whether it supports loose filling, cartridge loading, or both. Cartridge systems are less likely to allow foreign matter to enter during refilling and allow quick replacement.

5. 5. Determine reach by hose length

   A flexible hose is effective for nipples in recessed positions or narrow spaces. The listed products have hose lengths of 300 to 900 mm. A rigid dispensing pipe (175 mm) is easier to aim, but it is harder to reach through bent paths, so select according to the layout of the lubrication points.

6. 6. Check the mass for carrying

   This product: Mass 1.5 kg

   Because the tool is carried and operated with one hand, its mass directly affects operator fatigue. The listed products weigh 1.3 to 3 kg, and electric types are heavier due to the included battery. If work is frequently performed at height or under vehicles, compare handling ease as well.

This guide was written by AI based on the listed products' documents and specification items.

About Grease gun and all products

Description

Maximum pressure 400 bar, delivery approx. 1.5 cm3 per stroke. Can be refilled with grease or operated with cartridges using a reservoir of approx. 500 cm3, and features a 175 mm discharge pipe.

FAQ

Q. Can the grease gun model 1077600 be operated with one hand?

A. Yes, it can be operated with one hand.

Q. What are the maximum discharge pressure and the discharge volume per stroke of grease gun model 1077600?

A. The maximum discharge pressure is 400 bar. The discharge volume per stroke is approx. 1.5 cm3.

Q. What grease filling methods are supported by grease gun model 1077600, and what is its grease capacity?

A. Grease can be refilled into the approx. 500 cm3 reservoir, or cartridges can be used. The grease capacity is approx. 500 cm3.

Q. For which bearing and machine lubrication tasks can grease gun model 1077600 be used?

A. It can be used for lubricating bearings and lubricating machines.

Q. Can grease gun model 1077600 be refilled, and what are the length and mass of its discharge pipe?

A. It can be refilled via the grease filling nipple and air bleed valve. The discharge pipe is 175 mm long and the mass is 1.5 kg.

Written by AI based on the content of the source documents.

Source documents

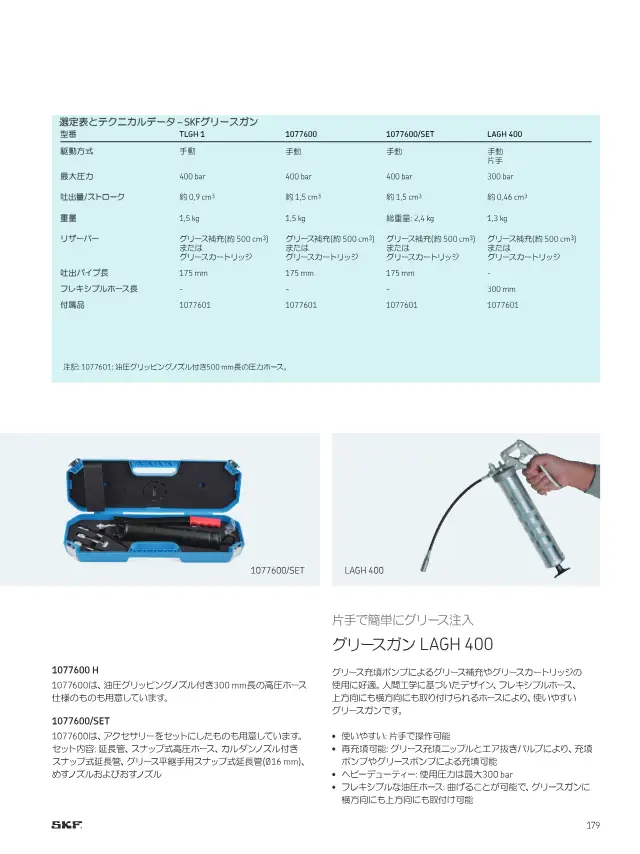

• Catalog SKFメンテナンス製品と潤滑製品 204 pages Open page 181
