Y-Bearing with Tapered Bore

Specifications

How to choose Bearing units

Points to check when selecting, with the values for this product (Y-Bearing with Tapered Bore).

1. 1. Match shaft diameter and dimensional system (metric/inch)

   This product: Shaft diameter d 25~65 mm

   Bearing units are offered in separate metric and inch series, and they are not interchangeable even when their appearance is similar. Listed products cover metric sizes of 3 to 150 mm and inch sizes of 1 to 4 in. First determine the shaft diameter and dimensional system, then select from the corresponding series.

2. 2. Check the rated load against the operating conditions

   The basic dynamic load rating Cr is used for rolling fatigue life calculations, and the basic static load rating C0r is used for evaluating stationary or shock loads. Listed Cr values range from 7.28 to 793 kN, and there are heavy-load products, such as half-ring types, with increased static load ratings.

3. 3. Select a specification suited to the operating temperature

   Standard greases and rubber seals deteriorate at high temperatures. High-temperature specifications are available in types with different upper temperature limits; for example, VA201 is rated at 130 to 250°C and VA228 at 260 to 350°C. In addition to the ambient temperature, check the permissible seal temperature and the sealed grease.

4. 4. Choose the shaft fixing method for the application

   Set-screw type is easy to install but requires control of the tightening torque. The method that fixes the bearing with a tapered bore and adapter sleeve provides a secure connection to the shaft and suits applications with reversing rotation or vibration. Check it together with the recommended shaft tolerance grade.

5. 5. Verify the permissible rotational speed

   Bearing units have an upper limit on usable rotational speed depending on seal friction and the fixing method. The permissible speeds of listed products range widely from 6 to 12000 r/min, and low-speed heavy-load and high-speed units have very different characteristics. Confirm that the operating speed has sufficient margin.

6. 6. Allow for shaft tilt during installation

   In the spherical-fit design, the unit can absorb shaft tilt during installation up to a certain angle. However, in structures that allow regreasing, the permissible angle may be smaller. Listed products include an example of 2°. Check the permissible misalignment according to the accuracy of the base or frame.

This guide was written by AI based on the listed products' documents and specification items.

About Bearing units and all products

Description

Wide inner ring on both sides, with a bore taper ratio of 1:12. Mounted using adapter sleeves such as the H 23 series. Adapter sleeves must be ordered separately. Equipped with standard seals with additional steel plate flingers on both sides. Bore diameter 25 to 65 mm; suitable for metric shafts of 20 to 60 mm and inch shafts of 3/4 to 2 3/8 inch.

FAQ

Q. Which adapter sleeve is required to mount the Y-Bearing with Tapered Bore YSA 2?

A. It is mounted using an adapter sleeve such as the H 23 series. Adapter sleeves must be ordered separately.

Q. What shaft diameter range is the Y-Bearing with Tapered Bore YSA 2 suitable for?

A. It fits bore diameters of 25 to 65 mm. It is suitable for metric shafts of 20 to 60 mm and inch shafts of 3/4 to 2 3/8 inch.

Q. What is the taper ratio of the inner ring bore of the Y-Bearing with Tapered Bore YSA 2?

A. The taper ratio is 1:12. The inner ring is wide on both sides, and the bore has a taper ratio of 1:12.

Q. What are the features of the seals on the Y-Bearing with Tapered Bore YSA 2?

A. It has standard seals with additional steel plate flingers on both sides.

Written by AI based on the content of the source documents.

Source documents

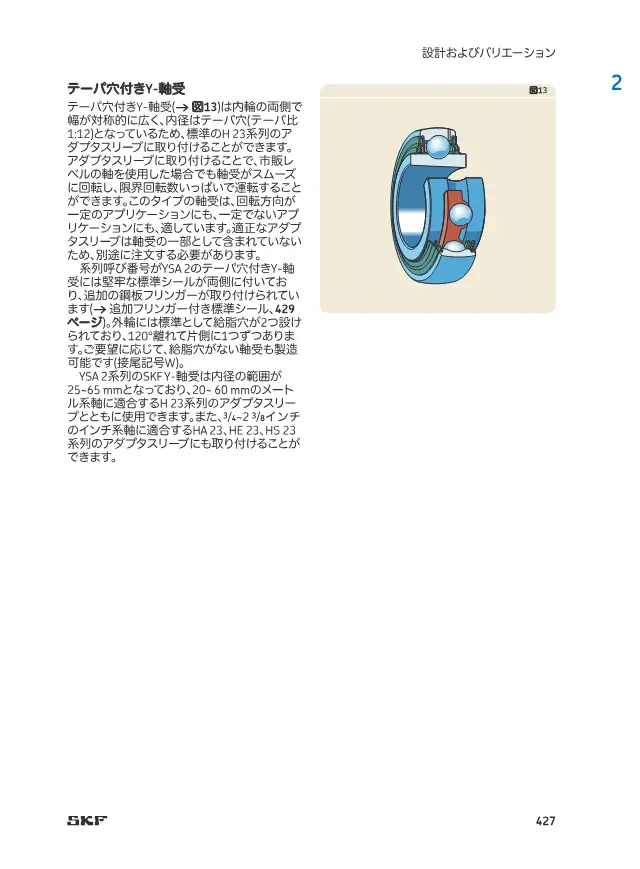

• Catalog SKF 転がり軸受カタログ 2 Y-軸受 (インサート軸受) 54 pages Open page 8
