ICOS Oil Seal Bearing Unit

Specifications

How to choose Bearing units

Points to check when selecting, with the values for this product (ICOS Oil Seal Bearing Unit).

1. 1. Match shaft diameter and dimensional system (metric/inch)

   This product: Shaft diameter d 12~30 mm

   Bearing units are offered in separate metric and inch series, and they are not interchangeable even when their appearance is similar. Listed products cover metric sizes of 3 to 150 mm and inch sizes of 1 to 4 in. First determine the shaft diameter and dimensional system, then select from the corresponding series.

2. 2. Check the rated load against the operating conditions

   This product: Basic dynamic load rating Cr 7.28~20.3 kN

   The basic dynamic load rating Cr is used for rolling fatigue life calculations, and the basic static load rating C0r is used for evaluating stationary or shock loads. Listed Cr values range from 7.28 to 793 kN, and there are heavy-load products, such as half-ring types, with increased static load ratings.

3. 3. Select a specification suited to the operating temperature

   Standard greases and rubber seals deteriorate at high temperatures. High-temperature specifications are available in types with different upper temperature limits; for example, VA201 is rated at 130 to 250°C and VA228 at 260 to 350°C. In addition to the ambient temperature, check the permissible seal temperature and the sealed grease.

4. 4. Choose the shaft fixing method for the application

   Set-screw type is easy to install but requires control of the tightening torque. The method that fixes the bearing with a tapered bore and adapter sleeve provides a secure connection to the shaft and suits applications with reversing rotation or vibration. Check it together with the recommended shaft tolerance grade.

5. 5. Verify the permissible rotational speed

   This product: Permissible rotational speed 6 500~14 000 r/min

   Bearing units have an upper limit on usable rotational speed depending on seal friction and the fixing method. The permissible speeds of listed products range widely from 6 to 12000 r/min, and low-speed heavy-load and high-speed units have very different characteristics. Confirm that the operating speed has sufficient margin.

6. 6. Allow for shaft tilt during installation

   In the spherical-fit design, the unit can absorb shaft tilt during installation up to a certain angle. However, in structures that allow regreasing, the permissible angle may be smaller. Listed products include an example of 2°. Check the permissible misalignment according to the accuracy of the base or frame.

This guide was written by AI based on the listed products' documents and specification items.

About Bearing units and all products

Description

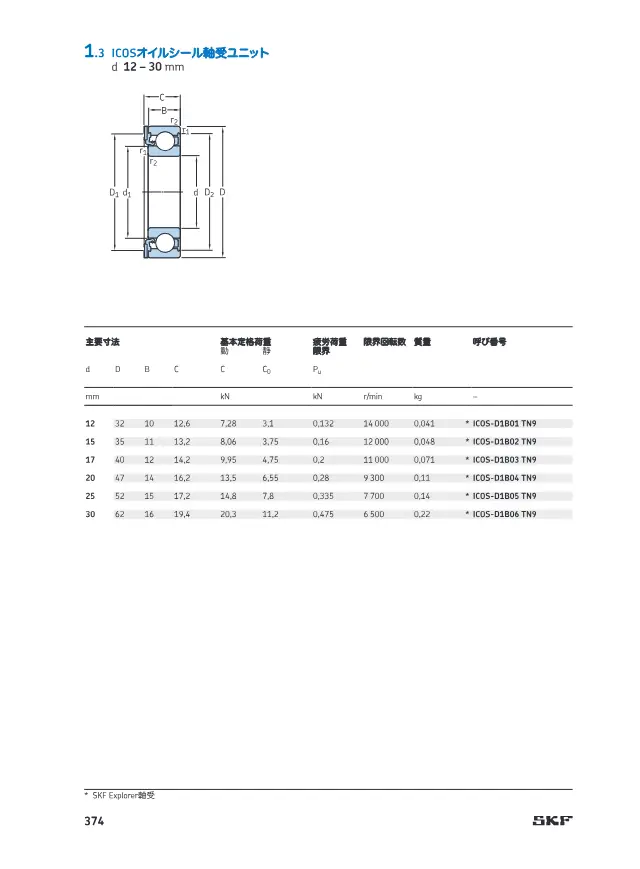

A bearing unit with an integrated oil seal, listing six types from ICOS-D1B01 to D1B06. SKF Explorer bearing.

FAQ

Q. What are the bore diameter and outside diameter ranges of the ICOS-D1B series?

A. Bore diameter d is 12 to 30 mm and outside diameter D is 32 to 62 mm. Dimensions, basic load ratings and limiting speeds are shown for each model number.

Q. What type of bearing unit is the ICOS-D1B series, and does it include an oil seal?

A. It is a bearing unit with an integrated oil seal, listing six types from ICOS-D1B01 to D1B06. It is an SKF Explorer bearing.

Q. What are the load ratings and permissible speeds of the ICOS-D1B series?

A. Basic dynamic load rating Cr is 7.28 to 20.3 kN, and basic static load rating C0r is 3.1 to 11.2 kN. Permissible speed is 6 500 to 14 000 r/min.

Q. What are the width and mass of the ICOS-D1B series?

A. Width B is 10 to 16 mm, and mass is 0.041 to 0.22 kg.

Written by AI based on the content of the source documents.
