High-Pressure Hose Replacement Kit for Oil Injector

Model 729101-CK1 / THAP 300-HK1 / THAP 400-HK1 / ホース交換キット / SKF (Official website) / Listed on page 78 of the document

A kit that replaces old high-pressure pipes with high-pressure hoses. Can be retrofitted to existing oil injectors.

Last verified: (date the content was verified against the source document)

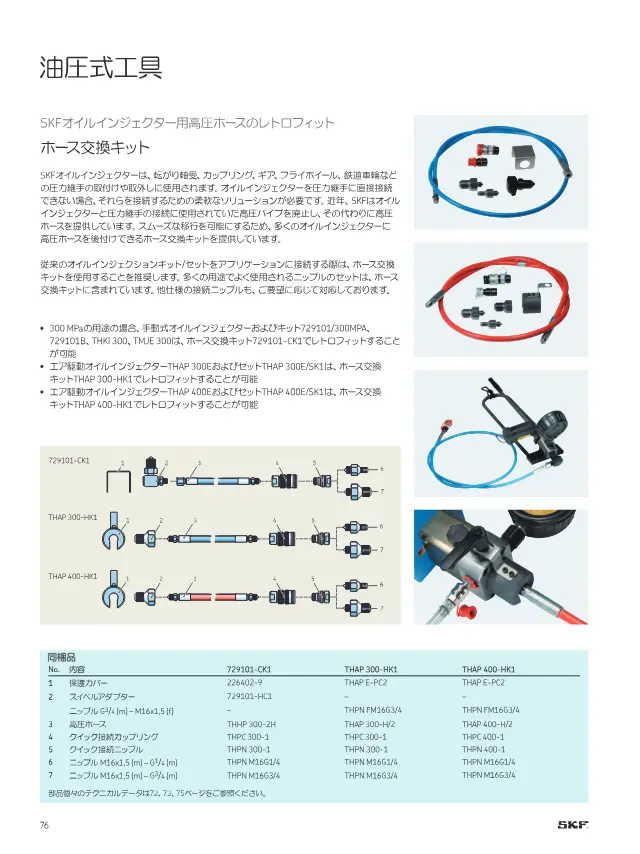

High-Pressure Hose Replacement Kit for Oil Injector on page 78 of SKF "SKFメンテナンス製品と潤滑製品"
Source: SKF「SKFメンテナンス製品と潤滑製品」page 78
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Operating Pressure 300～400 MPa

How to choose Hydraulic Tools

Points to check when selecting, with the values for this product (729101-CK1 / THAP 300-HK1 / THAP 400-HK1).

  1. 1. Match the mating thread standard

    Hydraulic nuts are screwed onto the thread of a shaft or sleeve, so they cannot be fitted if the thread form does not match. Confirm whether the thread is metric or inch, and select a product whose specification, including pitch, matches the mating thread standard.

  2. 2. Select the size for the nominal thread diameter

    Hydraulic nuts are sized by nominal thread diameter. Identify the corresponding nominal thread diameter from the bearing bore or the model number of the adapter sleeve or withdrawal sleeve, and select a product whose thread diameter range includes that diameter.

  3. 3. Check the applicable shaft diameter

    The listed products have applicable shaft diameters of 50 to 1000 mm. Confirm that the shaft on which the bearing or sleeve will be mounted falls within the nut's applicable range. Larger-diameter types have larger and heavier bodies.

  4. 4. Match pump pressure and maximum hydraulic pressure

    The listed products have a maximum hydraulic pressure of 60 to 80 MPa. Confirm that the rated pressure of the hydraulic pump, hose and coupler used in combination matches the nut's maximum hydraulic pressure. Pressing force is determined by the product of piston area and hydraulic pressure.

  5. 5. Required press-in amount and stroke

    With tapered fits, the bearing must be pushed in a set distance. Confirm that the required press-in amount falls within the piston travel, and allow for the work of retracting the nut and re-threading it if the travel is insufficient.

  6. 6. Prepare handling means for the mass

    The listed products have a mass of 19 to 136 kg. Large sizes are difficult to hold by hand, so confirm whether eyebolts are provided and prepare slings or a crane. The presence of accessories such as tommy bars and thread lubricant also affects workability.

This guide was written by AI based on the listed products' documents and specification items.

About Hydraulic Tools and all products

Description

Available for 300 MPa and 400 MPa. Includes protective cover, hose, coupling, and nipple.

Features

  • Retrofittable to existing equipment
  • Includes nipple set

Applications

  • Mounting and dismounting of rolling bearings
  • Mounting and dismounting of couplings

FAQ

Q. Which equipment can 729101-CK1 / THAP 300-HK1 / THAP 400-HK1 be installed on?
A. They can be retrofitted to existing oil injectors. The kit replaces old high-pressure pipes with high-pressure hoses.
Q. What is the difference between THAP 300-HK1 and THAP 400-HK1?
A. THAP 300-HK1 is for 300 MPa and THAP 400-HK1 is for 400 MPa. The operating pressure is 300 to 400 MPa.
Q. What parts are included in 729101-CK1 / THAP 300-HK1 / THAP 400-HK1?
A. The kit includes a protective cover, hose, coupling, and nipple. A nipple set is included.
Q. What tasks can 729101-CK1 / THAP 300-HK1 / THAP 400-HK1 be used for?
A. They can be used for mounting and dismounting rolling bearings and for mounting and dismounting couplings.

Written by AI based on the content of the source documents.
