High-Pressure Hose 729126 / 729834 / THAP 300-H/2 / THHP 300-2H / THAP 400-H/2

高圧ホース / SKF (Official website) / Listed on page 74 of the document

High-pressure hose for connecting SKF hydraulic pumps and injectors. Maximum working pressure from 100 MPa to 400 MPa.

Last verified: (date the content was verified against the source document)

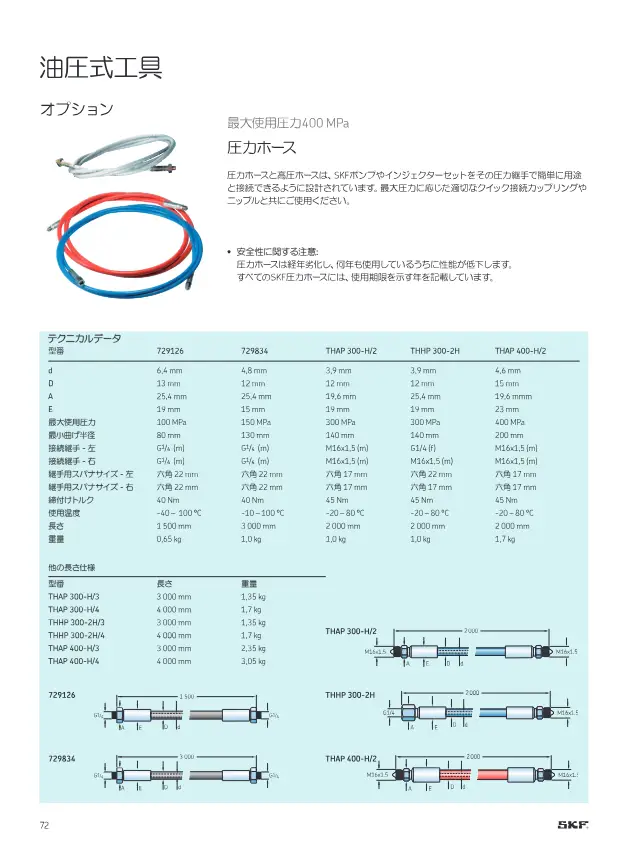

High-Pressure Hose 729126 / 729834 / THAP 300-H/2 / THHP 300-2H / THAP 400-H/2 on page 74 of SKF "SKFメンテナンス製品と潤滑製品"
Source: SKF「SKFメンテナンス製品と潤滑製品」page 74
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Maximum Working Pressure 100 - 400 MPa
Length 1500 - 3000 mm
Operating Temperature -40 - 100 °C

Description

Connected using fittings matched to the pressure rating. As hoses deteriorate over time, the year of expiry printed on the hose must be checked.

Features

  • Expiry year indicated on the hose

Applications

  • Connecting SKF hydraulic pumps and injectors

FAQ

Q. What are the maximum working pressure and length of the SKF High-Pressure Hose (729126 / 729834 / THAP 300-H/2 / THHP 300-2H / THAP 400-H/2)?
A. The maximum working pressure is 100 - 400 MPa, and the length is 1500 - 3000 mm.
Q. Which equipment can the SKF High-Pressure Hose be connected to?
A. It is used for connecting SKF hydraulic pumps and injectors.
Q. What is the operating temperature range of the SKF High-Pressure Hose?
A. The operating temperature is -40 - 100 °C.
Q. Are there any precautions to observe when using the SKF High-Pressure Hose?
A. Connect using fittings matched to the pressure rating. As hoses deteriorate over time, the year of expiry printed on the hose must be checked.

Written by AI based on the content of the source documents.
