Hot Plate 729659 C

Model 729659 C / SKF (Official website) / Listed on page 43 of the document

Thermostat-controlled hot plate for preheating small bearings before mounting. Adjustable from 50 to 200°C.

Last verified: (date the content was verified against the source document)

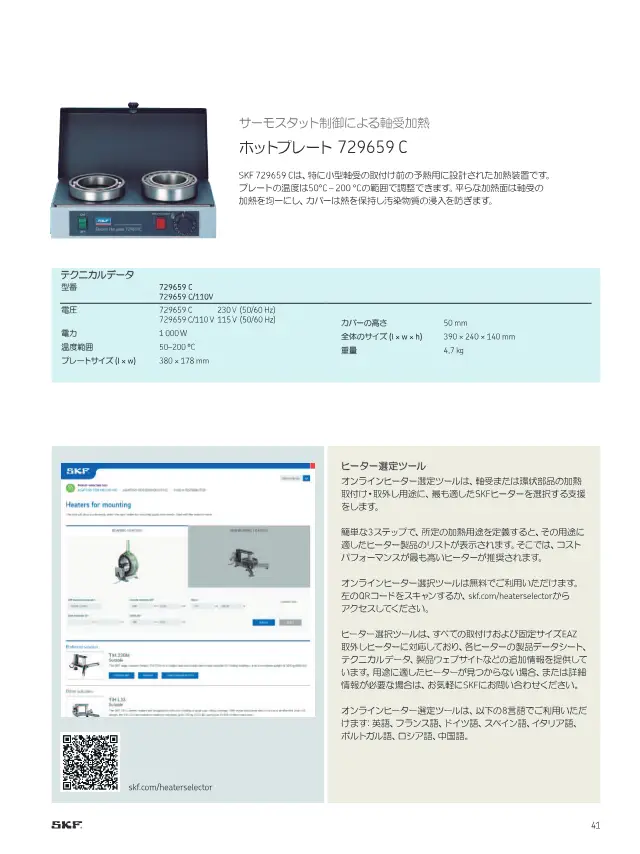

Hot Plate 729659 C on page 43 of SKF "SKFメンテナンス製品と潤滑製品"
Source: SKF「SKFメンテナンス製品と潤滑製品」page 43
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Electric power 1000 W
Temperature Range 50–200 °C
Plate size 380 × 178 mm
Overall size 390 × 240 × 140 mm
Weight 4.7 kg

Description

Heats uniformly via a flat heating surface, and the cover retains heat and prevents contamination.

Features

  • Temperature adjustable from 50–200°C
  • Cover retains heat and prevents contamination

Applications

  • Preheating small bearings before mounting

FAQ

Q. What is the adjustable temperature range of the 729659 C?
A. Temperature is adjustable from 50–200°C. It is a thermostat-controlled hot plate.
Q. What applications is the 729659 C suited for?
A. It is used for preheating small bearings before mounting. It heats uniformly via a flat heating surface, and the cover retains heat and prevents contamination.
Q. What are the plate size and overall dimensions of the 729659 C?
A. The plate size is 380 × 178 mm. The overall size is 390 × 240 × 140 mm.
Q. What are the power rating and weight of the 729659 C?
A. The power rating is 1000 W. The weight is 4.7 kg.
