SKF QuickCollect Sensor

Model CMSS310 / SKF QuickCollect / SKF (Official website) / Listed on page 1 of the document

A waterproof and dustproof portable vibration and temperature sensor that connects with mobile devices via Bluetooth. It measures velocity, acceleration envelope, and temperature, and displays machine condition on site.

Last verified: (date the content was verified against the source document)

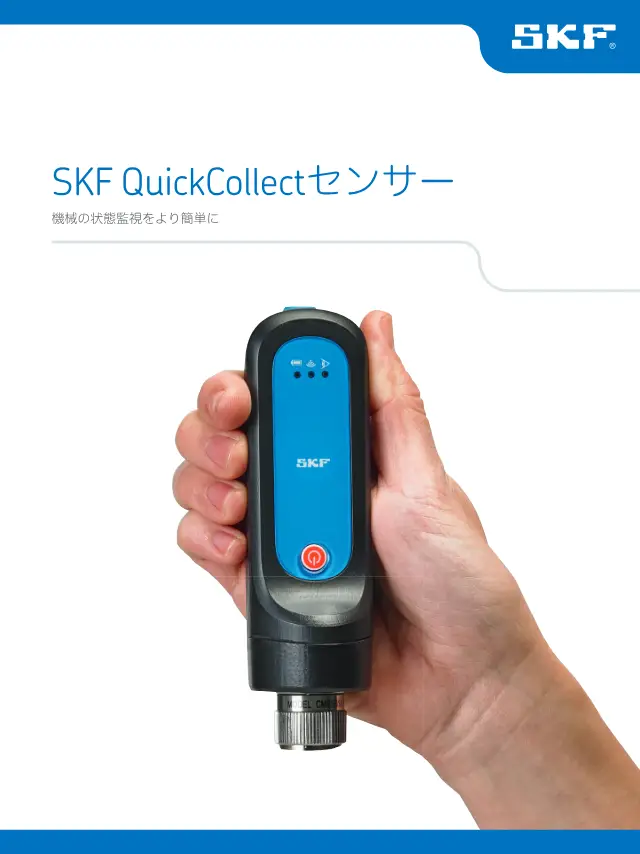

SKF QuickCollect Sensor on page 1 of SKF "SKF QuickCollectセンサー"
Source: SKF「SKF QuickCollectセンサー」page 1
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Speed measuring range 10 Hz to 1 kHz (up to 55 mm/s)
Bearing condition (acceleration envelope) measuring range Up to 20 gE
FFT maximum frequency (velocity) 1 kHz
FFT maximum frequency (envelope acceleration) 2 kHz
Number of analysis lines (velocity) 400
Number of analysis lines (envelope acceleration) 800
Battery usable time 8 hours under normal use
Operating temperature (discharge) -20 ~ +60 °C
Charging Temperature 0 ~ +40 °C
Storage Temperature (Under 1 Month) -20 ~ +45 °C
IP protection rating IP65
Drop test 1.8 m
Dimensions 45×45×135 mm
Weight 200 g
Humidity 95% (non-condensing)
Altitude 2000 or less m

Description

Connects with apps on smartphones, tablets, and smartwatches, and can display overall values in real time. Cloud storage and connection to remote diagnostic services are optional. Rugged design rated IP65 equivalent and passes a 1.8 m drop test. Rechargeable lithium battery provides 8 hours of typical operation.

Features

  • Measurement of velocity, acceleration envelope, and temperature
  • App connectivity via Bluetooth communication
  • Color-coded display of machine condition
  • IP65 waterproof and dustproof
  • Passes 1.8 m drop test
  • Rechargeable lithium battery with 8 hours of typical use
  • Data storage and sharing to cloud (optional)
  • Direct communication with SKF remote diagnostic service (optional)

Applications

  • Route-based data collection for rotating machinery
  • Machine condition monitoring
  • Predictive maintenance

FAQ

Q. What are the measurement range and analysis line specifications of the CMSS310?
A. The velocity measurement range is 10 Hz to 1 kHz (up to 55 mm/s). The bearing condition (acceleration envelope) measurement range is up to 20 gE. The maximum FFT frequency is 1 kHz for velocity and 2 kHz for envelope acceleration. The number of analysis lines is 400 for velocity and 800 for envelope acceleration.
Q. Can the CMSS310 be used outdoors or in harsh environments? Please provide its waterproof and dustproof performance and operating conditions.
A. It has IP65 waterproof and dustproof performance and a rugged design that passes a 1.8 m drop test. Operating temperature (discharging) is -20 to +60 °C, humidity is 95% (non-condensing), and altitude is 2000 m or less. Charging temperature is 0 to +40 °C, and storage temperature (less than 1 month) is -20 to +45 °C.
Q. What types of machinery and applications is the SKF QuickCollect CMSS310 suited for?
A. It is used for route-based data collection on rotating machinery, machine condition monitoring, and predictive maintenance. It measures velocity, acceleration envelope, and temperature, and displays machine condition with color coding.
Q. How does the CMSS310 connect with smartphones and similar devices, and how long does the battery last?
A. It connects via Bluetooth communication with apps on smartphones, tablets, and smartwatches, and can display overall values in real time. With its rechargeable lithium battery, it operates for 8 hours during typical use. Cloud storage and connection to the SKF remote diagnostic service are optional.
Q. What are the dimensions and weight of the CMSS310?
A. The dimensions are 45 × 45 × 135 mm, and the weight is 200 g.
