Guide Ring F07

Model F07 / ガイドリング / SKF (Official website) / Listed on page 60 of the document

Piston guide ring with an inner circumferential groove. Available in split or non-split types.

Last verified: (date the content was verified against the source document)

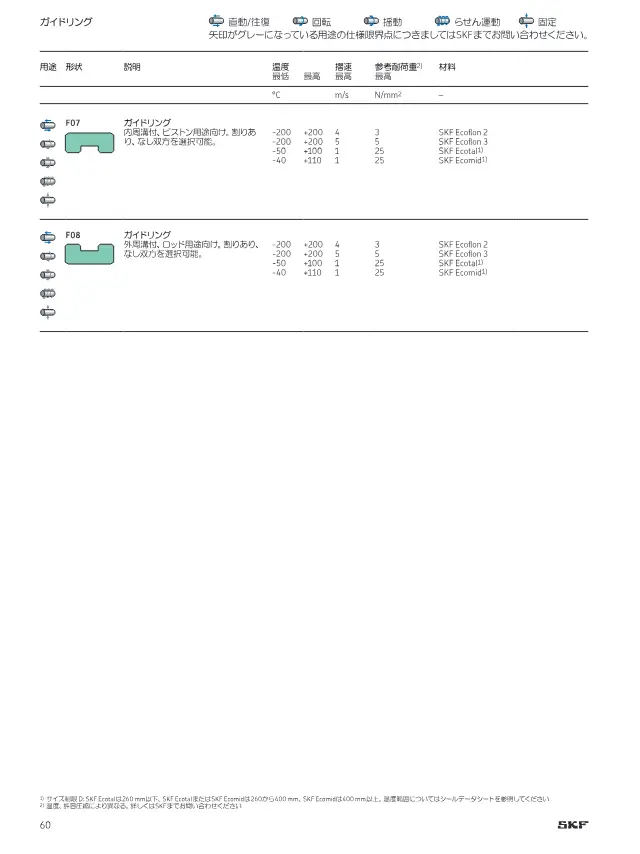

Guide Ring F07 on page 60 of SKF "切削加工シール製品ラインアップ"
Source: SKF「切削加工シール製品ラインアップ」page 60
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Operating Temperature Range -200～+200 °C
Maximum Sliding Speed 5 m/s

ガイドリング model comparison

Compare 7 models in the same series by specification.

Model Operating Temperature Range Maximum Sliding Speed
F02 -200～+200 °C 5 m/s
F03 -200～+200 °C 5 m/s
F04 -200～+200 °C 5 m/s
F05 -200～+200 °C 5 m/s
F06 -200～+200 °C 5 m/s
F07 This product -200～+200 °C 5 m/s
F08 -200～+200 °C 5 m/s

How to choose Guide Rings

Points to check when selecting, with the values for this product (F07).

  1. 1. Select Rod Type or Piston Type

    Rod-type rings fit into a groove in the inner circumference of the rod cover and guide the rod, while piston-type rings fit into a groove on the piston outer circumference and guide the cylinder bore. Collared, grooved, and L-type shapes may also have separate part numbers for rod and piston use.

  2. 2. Match Rod Diameter or Bore Diameter

    For rod-type rings, the nominal size is the rod outer diameter d; for piston-type rings, it is the cylinder bore diameter D. Listed products include examples covering 6 to 1000 mm. Also confirm the available manufacturing diameter range and whether special diameters can be supplied.

  3. 3. Select Thickness and Width to Suit the Groove

    Cross-sectional thickness is 1.5 to 4 mm for listed products. Determine thickness together with groove depth so that a clearance between metal parts is maintained. Width should match the groove width, and the selection should confirm that the surface pressure under the applied side load remains within the allowable value.

  4. 4. Check Allowable Surface Pressure Under Side Load

    Because guide rings support side loads, keep the surface pressure, calculated as load divided by projected area (diameter × width), below the allowable surface pressure. For high-load applications, consider materials that withstand high surface pressure, such as fabric-reinforced phenolic, or wider cross-sections.

  5. 5. Match Material to Sliding Speed, Temperature, and Fluid

    PTFE-based materials have low friction and suit high-speed use, while fabric-reinforced phenolic offers excellent load-bearing capacity. The maximum sliding speed for listed products is 5 m/s. Verify the operating temperature range and compatibility with media such as hydraulic oil, water, and air for each material.

  6. 6. Joint Shape and Ease of Installation

    The 45° cut is standard, and 90° cut or no-cut options are also available. Split rings are easy to install into the groove, and the joint can absorb dimensional changes from thermal expansion. No-cut rings may not be installable in an integral groove, so select based on the housing structure.

This guide was written by AI based on the listed products' documents and specification items.

About Guide Rings and all products

Description

Designed for piston applications featuring an inner circumferential groove.

Features

  • Inner circumferential groove

Applications

  • Hydraulic equipment
  • Pneumatic equipment

FAQ

Q. What applications can the Guide Ring F07 be used for?
A. It can be used in hydraulic and pneumatic equipment. It is a piston guide ring with an inner circumferential groove.
Q. What are the operating temperature range and maximum sliding speed of the F07?
A. The operating temperature range is -200 to +200 °C, and the maximum sliding speed is 5 m/s.
Q. Can the F07 be selected as either split or non-split?
A. Both split and non-split types are available.
Q. What are the features of the inner circumferential groove on the F07?
A. It has an inner circumferential groove design. It is designed for piston applications featuring an inner circumferential groove.

Written by AI based on the content of the source documents.
