Hook Spanner HN Series

Specifications

How to choose Spanners

Points to check when selecting, with the values for this product (Hook Spanner HN Series).

1. 1. Match the locknut number

   Hook spanners are supplied for each corresponding locknut number, such as HN 4 or HN 5, so the number determines compatibility. If the claw and nut groove dimensions do not match, the tool slips and can damage the nut or groove, so confirm that the locknut number to be used falls within the compatible range.

2. 2. Check the outer diameter range

   This product: Compatible Lock Nut Outer Diameter 16–145 mm

   The outer diameter range of locknuts that a spanner can engage is set for each product, and listed products cover 16 to 210 mm. Adjustable types cover multiple outer diameters with one tool, but the range is limited, so check that all the nut outer diameters you have fall within it.

3. 3. Select the spanner type for the task

   For reliably gripping a specific size, the hook type is suitable; where sizes are mixed on site, the adjustable type is suitable; and where manual force is insufficient for large nuts, the impact type used with a hammer is suitable. If the nut has holes in its face, the pin type is required. Decide the type based on the nut shape and the work content.

4. 4. Check large units against outer diameter d and dimensions

   For large locknuts, the catalogue may indicate compatibility by the applicable outer diameter d, and listed products cover 148 to 746 mm. Surrounding space and the swing radius are also relevant, so check together with overall length L whether the tool fits in the work area.

5. 5. Control angle for tapered seat mounting

   When mounting self-aligning ball bearings and similar units on tapered shafts or adapter sleeves, controlling the push-in amount by tightening angle prevents over- or under-tightening. Sets with a protractor are intended for this application, and for sets supplied with a carrying case, also confirm the storage dimensions.

6. 6. Check handle material and identification

   In humid sites, corrosion-resistant materials such as resin handles are easier to handle. When holding many sizes, markings showing the model number or compatible range help prevent mix-ups. Check the body material and markings, including storage methods.

This guide was written by AI based on the listed products' documents and specification items.

About Spanners and all products

Description

Resin handle resists dirt and provides a secure grip, reducing the risk of damage to the nut and shaft. A set covering sizes 4 to 16 is also available.

FAQ

Q. What bearing lock nuts can the SKF Hook Spanner HN Series be used to tighten and remove?

A. It can be used to tighten and remove bearing lock nuts. The applicable lock nut outside diameter is 16–145 mm.

Q. What sizes are available in the SKF HN Series hook spanners, and is there a set that covers multiple sizes?

A. Many sizes are available, from HN 0 to HN 21-22. A 9-piece set covering sizes 4 to 16 (SKF HN 4-16/SET) is also available.

Q. What material is the handle of the SKF Hook Spanner HN Series made from, and what are its features?

A. The handle is made of resin and is designed to resist dirt and provide a secure grip. It reduces the risk of corrosion and minimizes the risk of damage to the nut and shaft.

Q. How can I identify the size of an SKF HN Series hook spanner?

A. The model number is laser-marked, making it easy to identify.

Written by AI based on the content of the source documents.

Source documents

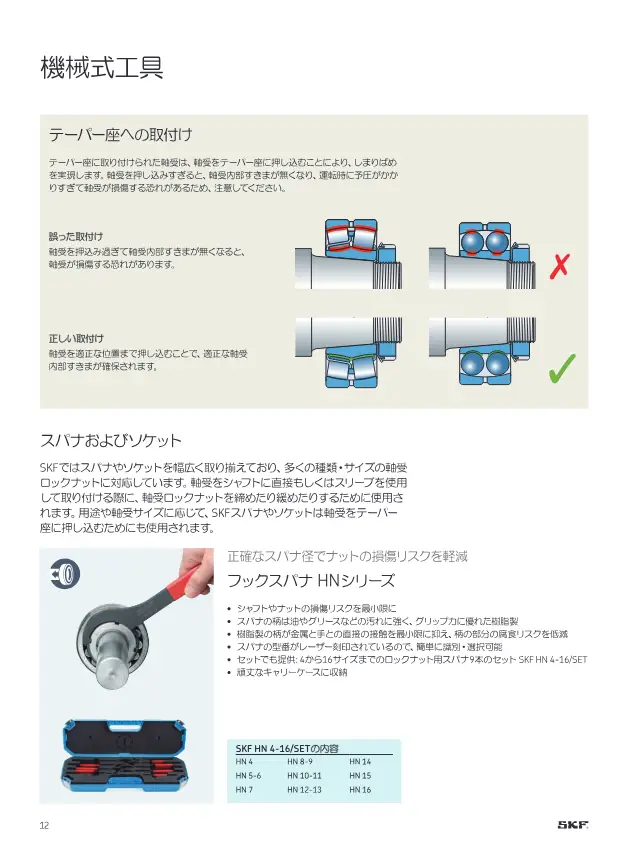

• Catalog SKFメンテナンス製品と潤滑製品 204 pages Open page 14
