LGLS 0 Wide-Temperature-Range Lubrication System Grease

Specifications

How to choose Grease

Points to check when selecting, with the values for this product (LGLS 0).

1. 1. Check the operating temperature range and dropping point

   This product: Operating Temperature Range -40～+100 °C

   First confirm that the operating temperature falls within the service temperature range. Listed dropping points range from 120 to 300°C, which indicate the temperature at which the grease softens and flows at high temperature, but the dropping point is not the same as the continuous service temperature. On the low-temperature side, starting torque and pumpability are affected.

2. 2. Select base oil viscosity to suit speed and load

   This product: Base oil kinematic viscosity (40°C) 1370 mm2/s

   The base oil kinematic viscosity at 40°C varies widely among listed products, from 18 to 1370 mm2/s. Low viscosity suits high-speed rotation or low-torque applications, while high viscosity suits low-speed, high-load applications where an oil film must be maintained. Estimate the required viscosity from bearing speed, load and operating temperature.

3. 3. Evaluate water and heat resistance by thickener

   Lithium soap is general purpose, lithium complex tends toward higher-temperature use, and calcium sulfonate complex tends to be resistant to large amounts of water and high loads. Greases with different thickeners may soften when mixed, so confirm compatibility with the existing grease when replenishing.

4. 4. Match the NLGI consistency grade to the lubrication method

   This product: NLGI viscosity grade (consistency number) 0

   In NLGI grades, a smaller number means a softer grease. Grade 1 is used for pumpability in centralized lubrication, grade 2 for general bearings, and grade 3 for locations where grease tends to flow out, such as vertical shafts and large bearings. Also check the worked penetration range.

5. 5. Check extreme pressure performance for high-load applications

   For shock loads or low-speed, high-load conditions, the four-ball weld load (2000 to 8000 N among listed products) serves as a guide to extreme pressure performance. Where micro-slip or oil film breakdown is likely, grades containing solid lubricants such as molybdenum disulfide or graphite are also candidates.

6. 6. Select base oil type for special environments

   Mineral oil grades are used for general applications, synthetic oils such as PAO for low temperatures down to around -50°C or ultra-high speeds, ester-based biodegradable grades for environmental considerations, and fluorine-based grades for vacuum and clean environments. For vacuum applications, also check the ambient pressure, cleanliness level and evaporation loss data.

This guide was written by AI based on the listed products' documents and specification items.

About Grease and all products

Description

Red chassis grease thickened with anhydrous calcium. LGLS 0 is suitable for low to medium temperature lubrication systems; LGLS 2 is suitable for medium to high temperature lubrication systems. Excellent water resistance and corrosion resistance.

FAQ

Q. What is the operating temperature range of LGLS 0?

A. The operating temperature range of LGLS 0 is -40 to +100 °C.

Q. What type of lubrication system is LGLS 0 suitable for?

A. LGLS 0 is suitable for low to medium temperature lubrication systems. It is an anhydrous calcium-thickened grease for centralized lubrication systems.

Q. How are the water resistance and corrosion resistance of LGLS 0?

A. LGLS 0 has excellent water resistance and corrosion resistance.

Q. What are the applications of LGLS 0?

A. It is used for joints, construction machinery, forestry and agricultural machinery, plain bearings for low-speed rotation, port facilities, ships, and wire rope lubrication.

Q. What are the dropping point and NLGI consistency grade of LGLS 0?

A. The dropping point of LGLS 0 is >120 °C, and its NLGI consistency grade (penetration number) is 0.

Written by AI based on the content of the source documents.

Source documents

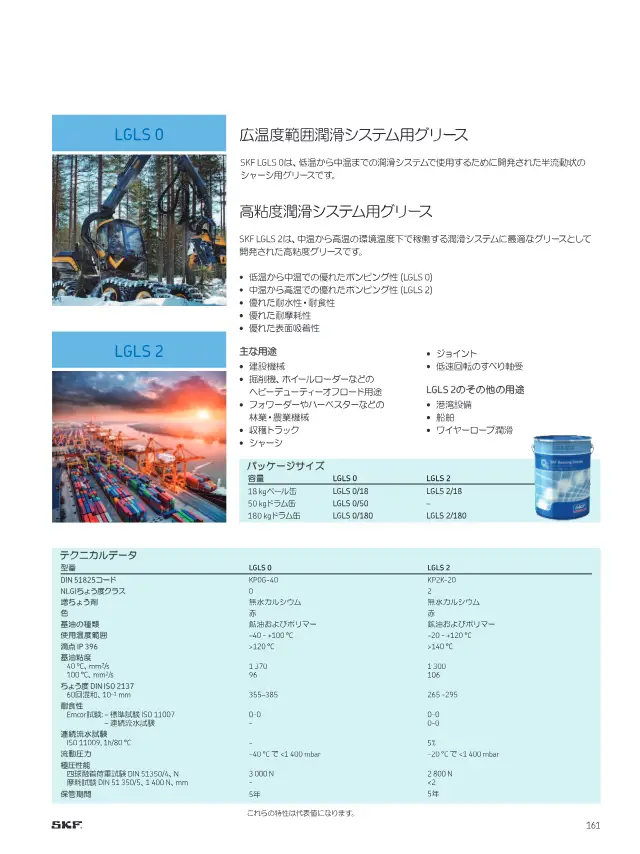

• Catalog SKFメンテナンス製品と潤滑製品 204 pages Open page 163
