EXSEV-EX (Grease)

Model SVEX1KG / EXSEV-EX / JTEKT Corporation (Official website) / Listed on page 51 of the document

Fluorinated grease with excellent heat and corrosion resistance and low particle generation, usable even under vacuum.

Last verified: (date the content was verified against the source document)

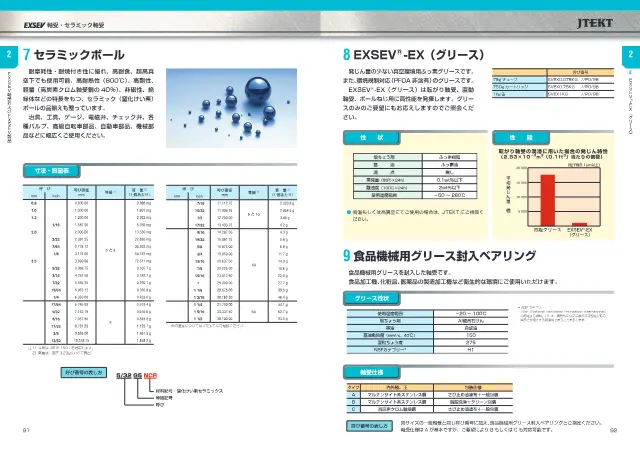

EXSEV-EX (Grease) on page 51 of JTEKT Corporation "特殊環境用軸受シリーズ 軸受・セラミック軸受 (EXSEV Bearings and CERAMIC Bearings for Extreme Special Environments)"
Source: JTEKT Corporation「特殊環境用軸受シリーズ 軸受・セラミック軸受 (EXSEV Bearings and CERAMIC Bearings for Extreme Special Environments)」page 51
A reduced image of the relevant page is quoted from the document. Copyright belongs to JTEKT Corporation.Request removal

Specifications

Operating Temperature Range -50～260 ℃
Dropping Point None
Evaporation amount 0.1 wt% or less

EXSEV-EX model comparison

Compare 2 models in the same series by specification.

Model Operating Temperature Range
EXSEV-EX -50～260 ℃
SVEX1KG This product -50～260 ℃

How to choose Grease

Points to check when selecting, with the values for this product (SVEX1KG).

  1. 1. Check the operating temperature range and dropping point

    This product: Operating Temperature Range -50～260 ℃

    First confirm that the operating temperature falls within the service temperature range. Listed dropping points range from 120 to 300°C, which indicate the temperature at which the grease softens and flows at high temperature, but the dropping point is not the same as the continuous service temperature. On the low-temperature side, starting torque and pumpability are affected.

  2. 2. Select base oil viscosity to suit speed and load

    The base oil kinematic viscosity at 40°C varies widely among listed products, from 18 to 1370 mm2/s. Low viscosity suits high-speed rotation or low-torque applications, while high viscosity suits low-speed, high-load applications where an oil film must be maintained. Estimate the required viscosity from bearing speed, load and operating temperature.

  3. 3. Evaluate water and heat resistance by thickener

    Lithium soap is general purpose, lithium complex tends toward higher-temperature use, and calcium sulfonate complex tends to be resistant to large amounts of water and high loads. Greases with different thickeners may soften when mixed, so confirm compatibility with the existing grease when replenishing.

  4. 4. Match the NLGI consistency grade to the lubrication method

    In NLGI grades, a smaller number means a softer grease. Grade 1 is used for pumpability in centralized lubrication, grade 2 for general bearings, and grade 3 for locations where grease tends to flow out, such as vertical shafts and large bearings. Also check the worked penetration range.

  5. 5. Check extreme pressure performance for high-load applications

    For shock loads or low-speed, high-load conditions, the four-ball weld load (2000 to 8000 N among listed products) serves as a guide to extreme pressure performance. Where micro-slip or oil film breakdown is likely, grades containing solid lubricants such as molybdenum disulfide or graphite are also candidates.

  6. 6. Select base oil type for special environments

    Mineral oil grades are used for general applications, synthetic oils such as PAO for low temperatures down to around -50°C or ultra-high speeds, ester-based biodegradable grades for environmental considerations, and fluorine-based grades for vacuum and clean environments. For vacuum applications, also check the ambient pressure, cleanliness level and evaporation loss data.

This guide was written by AI based on the listed products' documents and specification items.

About Grease and all products

Description

Grease using fluorinated oil and PTFE (fluororesin) thickener. Operating temperature range is -50 to 260°C, PFOA-free. Can be used for rolling bearings, linear motion bearings, and ball screws.

Features

  • Heat resistance up to 800°C
  • Usable in vacuum environments
  • PFOA-free

Applications

  • Vacuum environment equipment
  • Lubrication of rolling bearings
  • Lubrication of linear motion bearings

FAQ

Q. What is the operating temperature range of SVEX1KG (EXSEV-EX Grease)?
A. The operating temperature range is -50 to 260°C.
Q. What types of components can SVEX1KG (EXSEV-EX Grease) be used in?
A. It can be used in rolling bearings, linear motion bearings, and ball screws.
Q. Can SVEX1KG (EXSEV-EX Grease) be used in vacuum environments?
A. Yes, it is usable in vacuum environments. It is applicable to vacuum environment equipment and lubrication of rolling bearings and linear motion bearings.
Q. What are the material and environmental characteristics of SVEX1KG (EXSEV-EX Grease)?
A. It is a grease using fluorinated oil and PTFE (fluororesin) thickener, with excellent heat and corrosion resistance, and is PFOA-free.
Q. What are the evaporation loss and dropping point of SVEX1KG (EXSEV-EX Grease)?
A. Evaporation loss is 0.1 wt% or less. There is no dropping point.

Written by AI based on the content of the source documents.
