SKF Multilog Online Condition Monitoring Device IMx-8

IMx / SKF (Official website) / Listed on page 2 of the document

A compact online condition monitoring device that detects rotating machinery faults early and supports improved reliability and uptime with automatic advice. Settings and monitoring are available via a mobile device.

Last verified: (date the content was verified against the source document)

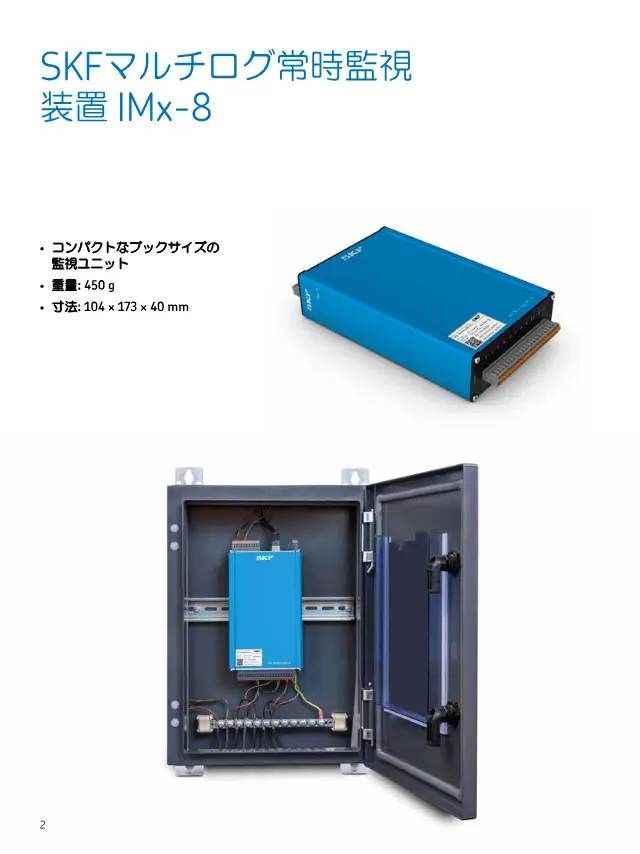

SKF Multilog Online Condition Monitoring Device IMx-8 on page 2 of SKF "SKFマルチログ常時監視装置 IMx-8"
Source: SKF「SKFマルチログ常時監視装置 IMx-8」page 2
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Weight 450 g
Dimensions 104 × 173 × 40 mm
Number of analog input points 8 点
Digital/rotary pulse input points 2 点
Supply voltage DC 24 – 48 V
Internal memory 4 GB

Description

A monitoring unit with 8 analog inputs and 2 digital inputs. Its 4 GB internal memory can store approximately one year of data and events. It supports smartphone configuration via Bluetooth, connection to the SKF cloud, DIN rail mounting, and installation in an IP65 cabinet. It is powered by PoE or DC 24-48 V and communicates via Modbus TCP/IP or RS485.

Features

  • 8 analog inputs and 2 digital inputs
  • PoE or DC 24-48 V power supply
  • 4 GB internal memory
  • Configuration and monitoring from a smartphone via Bluetooth connection
  • Data buffering during communication interruptions
  • Crash detection function (machine tools)
  • Modbus TCP/IP and RS485 support
  • DIN rail mounting and installation in IP65 cabinet possible

Applications

  • Condition monitoring of rotating machinery
  • Machine tool monitoring
  • Wind power generation equipment
  • Marine equipment

FAQ

Q. What are the number of input/output points and power supply method of the SKF Multilog Online Condition Monitoring Device IMx-8?
A. It has 8 analog inputs and 2 digital inputs. It is powered by PoE or DC 24-48 V.
Q. What communication methods does the SKF Multilog Online Condition Monitoring Device IMx-8 support?
A. It communicates via Modbus TCP/IP and RS485.
Q. How is the SKF Multilog Online Condition Monitoring Device IMx-8 installed and what cabinets can it be housed in?
A. It supports DIN rail mounting and can be housed in an IP65 cabinet.
Q. How much data can the SKF Multilog Online Condition Monitoring Device IMx-8 store?
A. Its 4 GB internal memory can store approximately one year of data and events. Data is buffered if communication is interrupted.
Q. What applications is the SKF Multilog Online Condition Monitoring Device IMx-8 suited for?
A. It can be used for condition monitoring of rotating machinery, machine tool monitoring, wind power generation equipment, and marine equipment. For machine tools, it has a crash detection function.

Written by AI based on the content of the source documents.
