SKF Endoscope TKES 10 Series

TKES 10 / SKF (Official website) / Listed on page 118 of the document

Compact camera-type endoscope series for inspecting machine interiors without disassembly. Tube type, three models.

Last verified: (date the content was verified against the source document)

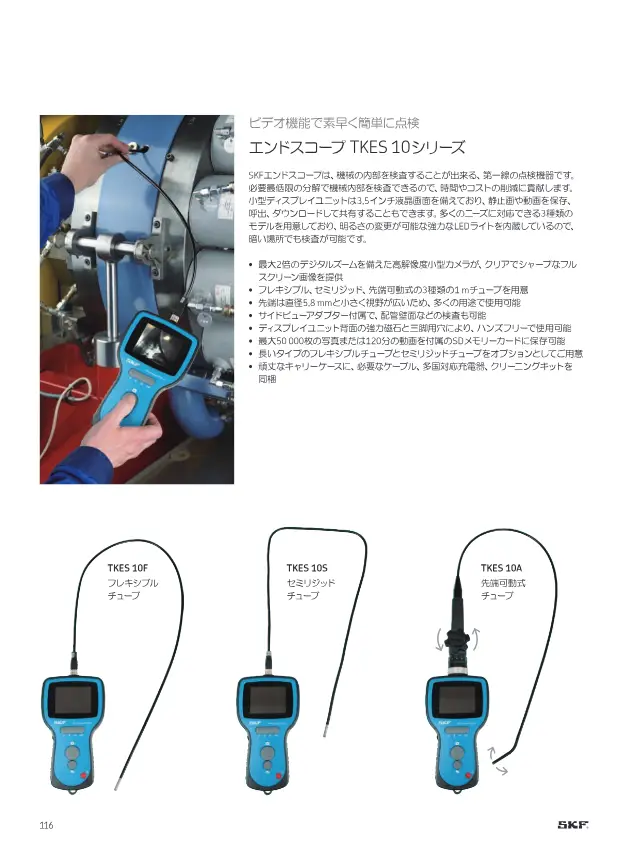

SKF Endoscope TKES 10 Series on page 118 of SKF "SKFメンテナンス製品と潤滑製品"
Source: SKF「SKFメンテナンス製品と潤滑製品」page 118
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Tube tip diameter 5.8 mm
Tube length 1 m
Viewing angle (TKES 10F) 67 °
Probe operating temperature -20 ～ +60 °C
Protection Rating (IP) IP 67

Description

Three models: TKES 10F, 10S, and 10A. Features a probe tip diameter of 5.8 mm and a 1 m long tube, with a 3.5-inch LCD display for viewing still images and video.

Features

  • Digital zoom up to 2x
  • Built-in LED light source
  • IP67 dust-tight and waterproof

Applications

  • Inspection of machine interiors
  • Inspection of pipe walls

FAQ

Q. What are the probe tip diameter and tube length of the SKF Endoscope TKES 10 Series?
A. The probe tip diameter is 5.8 mm and the tube length is 1 m.
Q. What are the differences between the three TKES 10 Series models (10F, 10S, and 10A)?
A. The product information lists three model numbers (TKES 10F, 10S, and 10A), but does not describe differences between the models. However, the viewing angle of the TKES 10F is listed as 67 °.
Q. Can the TKES 10 Series be used to inspect machine interiors and piping?
A. Yes. Inspection of machine interiors and inspection of pipe walls are listed as applications. It is a compact camera-type endoscope that allows inspection without disassembling the machine.
Q. What are the operating temperature and protection rating of the TKES 10 Series?
A. The probe operating temperature is -20 to +60 °C, and the protection rating is IP 67. IP 67 indicates dust-tight and waterproof protection.
Q. How can images from the TKES 10 Series be viewed, and does it have zoom and light functions?
A. Images can be viewed on a 3.5-inch LCD display for still images and video. It supports digital zoom up to 2x and has a built-in LED light source.
