SKF Digital Tachometer TKRT Series

TKRT / SKF (Official website) / Listed on page 112 of the document

A series of handheld tachometers that can measure rotational speed both by laser and by contact.

Last verified: (date the content was verified against the source document)

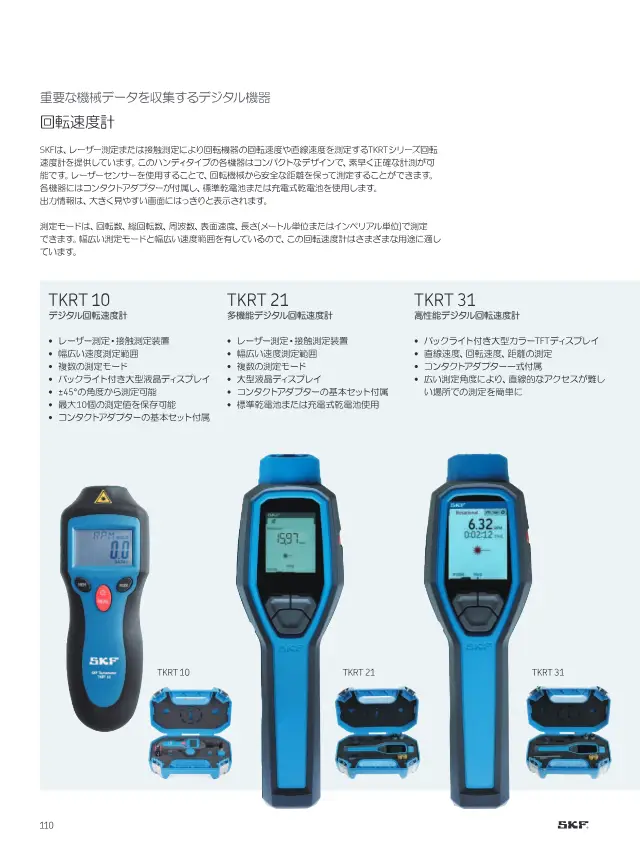

SKF Digital Tachometer TKRT Series on page 112 of SKF "SKFメンテナンス製品と潤滑製品"
Source: SKF「SKFメンテナンス製品と潤滑製品」page 112
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Optical measuring rotational speed range (TKRT 31) 1 ～ 99999 r/min
Contact Measurement Rotational Speed Range (TKRT 10) 2 ～ 20000 r/min
Laser Measuring Distance (TKRT 31) 25 ～ 1200 mm
Operating temperature (TKRT 10) 0 ～ 50 °C

Description

Three models: TKRT 10, 21, and 31. Measuring range, display, and recording functions differ by model. The TKRT 31 features a color TFT and a wide measuring angle.

Features

  • Laser and contact measurement
  • Multiple measurement modes
  • Contact adapter included

Applications

  • Electric motor monitoring
  • Conveyor monitoring
  • Inspection of rotating equipment in paper and food plants

FAQ

Q. What are the optical measuring speed range and laser measuring distance of the TKRT 31 in the SKF TKRT Series?
A. The TKRT 31 optical measuring speed range is 1 to 99999 r/min, and the laser measuring distance is 25 to 1200 mm.
Q. What are the contact measuring speed range and operating temperature of the TKRT 10 in the SKF TKRT Series?
A. The TKRT 10 contact measuring speed range is 2 to 20000 r/min, and the operating temperature is 0 to 50 °C.
Q. What models are available in the SKF TKRT Series, and how do they differ?
A. There are three models: TKRT 10, 21, and 31. Measuring range, display, and recording functions differ by model, and the TKRT 31 features a color TFT and a wide measuring angle.
Q. What applications can the SKF TKRT Series be used for?
A. It can be used for electric motor monitoring, conveyor monitoring, and inspection of rotating equipment in paper and food plants.
Q. Does the SKF TKRT Series support laser measurement, contact measurement, or both?
A. It supports both. It can measure rotational speed by laser and by contact, and a contact adapter is included.
