Ultrasonic Lubrication Checker TLGU 10

Model TLGU 10 / TLGU / SKF (Official website) / Listed on page 186 of the document

Ultrasonic checker that verifies re-lubrication quantity for bearings using ultrasonic technology. Connects to a grease gun for use; grease gun not included.

Last verified: (date the content was verified against the source document)

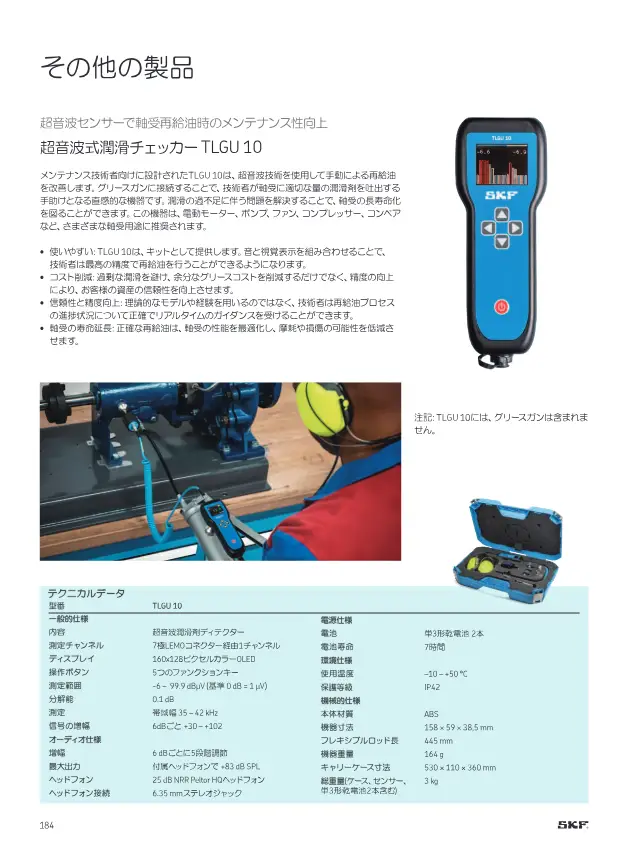

Ultrasonic Lubrication Checker TLGU 10 on page 186 of SKF "SKFメンテナンス製品と潤滑製品"
Source: SKF「SKFメンテナンス製品と潤滑製品」page 186
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Measurement Range -6 – 99.9 dBμV
Operating Temperature -10 – +50 °C
Protection Rating (IP) IP42
Equipment Weight 164 g
Flexible rod length 445 mm

Description

Guides appropriate lubrication quantity through sound and on-screen display. Prevents over- and under-lubrication, contributing to extended bearing life.

Features

  • Guidance via sound and visual display
  • 7-hour battery life

Applications

  • Bearing lubrication for electric motors, pumps, fans, compressors, and conveyors

FAQ

Q. What types of equipment can the TLGU 10 be used on?
A. It can be used for bearing lubrication on electric motors, pumps, fans, compressors, and conveyors.
Q. How does the TLGU 10 check lubrication quantity?
A. It uses ultrasonic technology to verify the re-lubrication quantity for bearings and guides the appropriate lubrication amount through sound and on-screen display. It connects to a grease gun for use; the grease gun is not included.
Q. What are the lubrication benefits of using the TLGU 10?
A. It prevents over-lubrication and under-lubrication, contributing to extended bearing life.
Q. What is the operating temperature range and protection rating of the TLGU 10?
A. Operating temperature is -10 to +50 °C, and the protection rating is IP42.
Q. What are the equipment weight and flexible rod length of the TLGU 10?
A. Equipment weight is 164 g, and the flexible rod length is 445 mm.

Written by AI based on the content of the source documents.
