SKF Multipoint Automatic Lubrication Unit TLM P Series

Specifications

How to choose Automatic lubrication devices

Points to check when selecting, with the values for this product (TLMP 1008 / TLMP 1018).

1. 1. Select a lubricant suited to the application

   Prefilled lubricants include high-temperature, high-load/extreme-pressure, NSF H1 registered food-machinery grades, and biodegradable types. Grease is generally used for bearings and oil for chains. Mixing with existing lubricants may reduce performance, so confirm the brand and thickener compatibility, and select an empty oil unit if you intend to use your own oil.

2. 2. Determine capacity from required lubrication volume

   The main capacities are 60 ml and 125 ml. Determine the capacity by multiplying the required lubrication volume for each lubrication point (such as the equipment manufacturer's recommended value) by the desired replacement interval. For the same discharge period, a larger capacity dispenses more lubricant per unit time, so check that it is neither too large nor too small for the size of the lubrication point.

3. 3. Set the discharge period to match the replacement interval

   The listed example allows the discharge period to be adjusted from 1 to 12 months. Matching it to the periodic inspection interval allows replacement work to be consolidated. Because gas-driven types change discharge speed with ambient temperature, periodically check the remaining lubricant in the transparent container to confirm it is decreasing as set.

4. 4. Check generated pressure and piping conditions

   The maximum generated pressure of the listed product is 5 bar. Because the pressure is low, installing it at a distance with a hose may prevent discharge due to piping resistance. Direct mounting is the basic approach; when using stiff grease or long piping, check that the passage is not clogged and that back pressure is not high.

5. 5. Match the thread standard of the lubrication port

   If the mounting thread does not match the standard of the lubrication port (such as a grease nipple mounting hole), an adapter will be required. Confirm the thread standard and size on the equipment side in advance, and for oil use also check whether a check valve is included.

6. 6. Confirm the operating environment and explosion-proofing requirements

   This product: Ambient temperature range -25 – +70 °C

   The ambient temperature range affects discharge stability and lubricant performance, so compare it with the installation site temperature. In hazardous areas such as those with flammable gases, select an ATEX-certified product matching the zone classification (some products are also certified for Zone 0).

This guide was written by AI based on the listed products' documents and specification items.

About Automatic lubrication devices and all products

Description

Equipped with a 1 litre reservoir and a stirring paddle, suited to applications that use large quantities of grease. Discharge outlets are available for 1 to 8 points (TLMP 1008) or 1 to 18 points (TLMP 1018). Features IP67 protection class and vibration-resistant design, and can be easily configured with an LED display.

FAQ

Q. What is the difference in the number of discharge outlets supported by TLMP 1008 and TLMP 1018?

A. TLMP 1008 supports 1 to 8 discharge outlets, and TLMP 1018 supports 1 to 18 discharge outlets.

Q. What are the maximum distance to the lubrication point and the maximum pressure for the TLMP series?

A. The maximum distance to the lubrication point is 5 m, and the maximum pressure is 205 bar.

Q. What types of grease are compatible with the TLMP series?

A. Compatible grease consistencies are NLGI 2 and 3.

Q. In what environments can the TLMP 1018 be used?

A. The ambient temperature range is -25 to +70 °C, and the protection class is IP 67. It features an IP67 protection class and vibration-resistant design.

Q. What applications is the TLMP series suited for?

A. Suited for industrial, agricultural, and off-road vehicle applications. Equipped with a 1 litre reservoir and a stirring paddle, it is suited to applications that use large quantities of grease.

Written by AI based on the content of the source documents.

Source documents

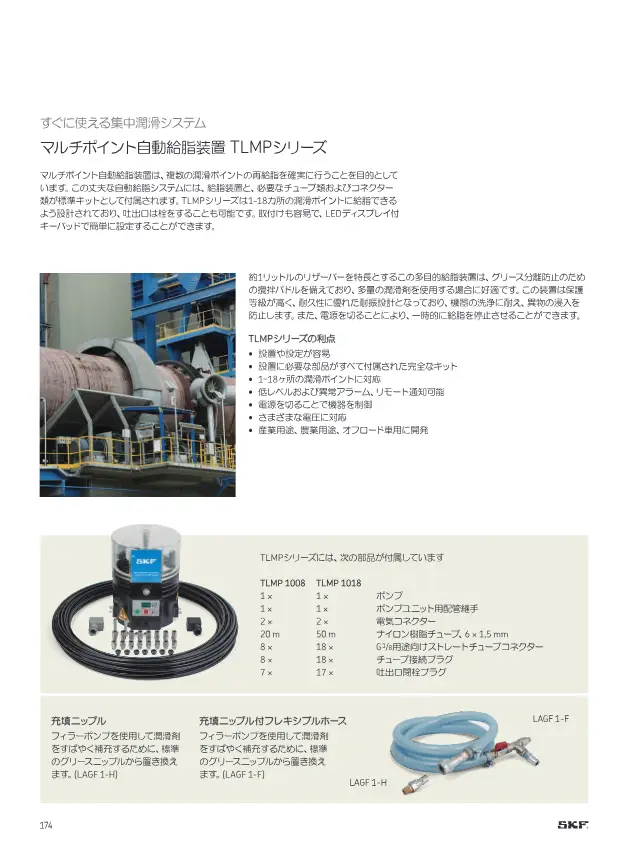

• Catalog SKFメンテナンス製品と潤滑製品 204 pages Open page 176
