OK Coupling Mounting and Dismounting Kit

Specifications

How to choose Hydraulic Tools

Points to check when selecting, with the values for this product (TMHK 36 / TMHK 37S / TMHK 37E / TMHK 38 / TMHK 38S / TMHK 39 / TMHK 40 / TMHK 41).

1. 1. Match the mating thread standard

   Hydraulic nuts are screwed onto the thread of a shaft or sleeve, so they cannot be fitted if the thread form does not match. Confirm whether the thread is metric or inch, and select a product whose specification, including pitch, matches the mating thread standard.

2. 2. Select the size for the nominal thread diameter

   Hydraulic nuts are sized by nominal thread diameter. Identify the corresponding nominal thread diameter from the bearing bore or the model number of the adapter sleeve or withdrawal sleeve, and select a product whose thread diameter range includes that diameter.

3. 3. Check the applicable shaft diameter

   The listed products have applicable shaft diameters of 50 to 1000 mm. Confirm that the shaft on which the bearing or sleeve will be mounted falls within the nut's applicable range. Larger-diameter types have larger and heavier bodies.

4. 4. Match pump pressure and maximum hydraulic pressure

   The listed products have a maximum hydraulic pressure of 60 to 80 MPa. Confirm that the rated pressure of the hydraulic pump, hose and coupler used in combination matches the nut's maximum hydraulic pressure. Pressing force is determined by the product of piston area and hydraulic pressure.

5. 5. Required press-in amount and stroke

   With tapered fits, the bearing must be pushed in a set distance. Confirm that the required press-in amount falls within the piston travel, and allow for the work of retracting the nut and re-threading it if the travel is insufficient.

6. 6. Prepare handling means for the mass

   This product: Mass 19～136 kg

   The listed products have a mass of 19 to 136 kg. Large sizes are difficult to hold by hand, so confirm whether eyebolts are provided and prepare slings or a crane. The presence of accessories such as tommy bars and thread lubricant also affects workability.

This guide was written by AI based on the listed products' documents and specification items.

About Hydraulic Tools and all products

Description

The combination varies depending on coupling size. Kits are configured by application, such as marine use and shipyard use.

FAQ

Q. What is the purpose of SKF TMHK 36 / TMHK 37S / TMHK 37E / TMHK 38 / TMHK 38S / TMHK 39 / TMHK 40 / TMHK 41?

A. They are used for mounting and dismounting OK couplings.

Q. What is the configuration of the OK coupling mounting and dismounting kits in the SKF TMHK series?

A. It is a kit combining hydraulic pumps and injectors. The combination varies depending on coupling size, and the kits are configured by application, such as marine use and shipyard use.

Q. What is the mass of SKF TMHK 36 / TMHK 37S / TMHK 37E / TMHK 38 / TMHK 38S / TMHK 39 / TMHK 40 / TMHK 41?

A. 19～136 kg.

Written by AI based on the content of the source documents.

Source documents

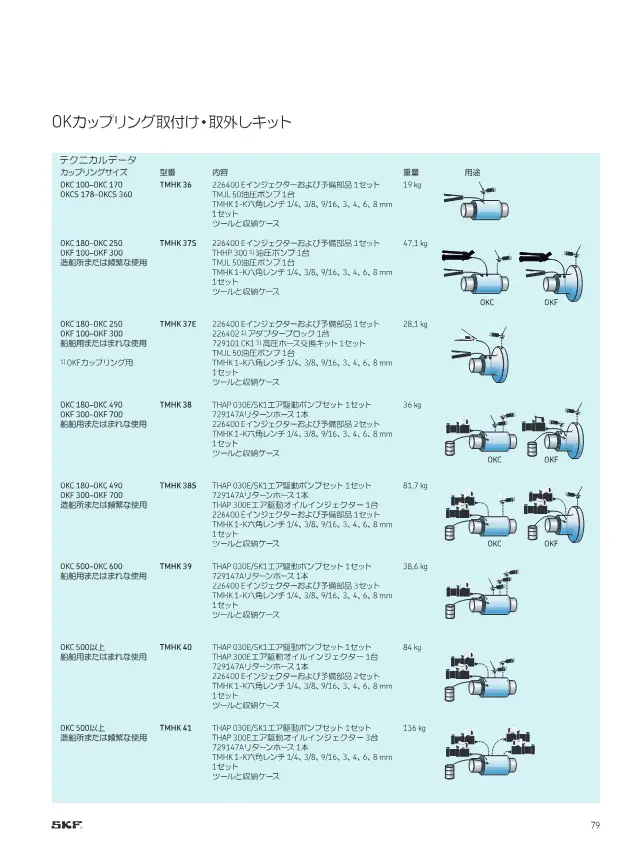

• Catalog SKFメンテナンス製品と潤滑製品 204 pages Open page 81
