Combi Kit TMMK 10-35

Model TMMK 10-35 / TMMK / SKF (Official website) / Listed on page 20 of the document

A multi-purpose kit for fitting and removing deep groove ball bearings with bore diameters of 10 to 35 mm on shafts and housings.

Last verified: (date the content was verified against the source document)

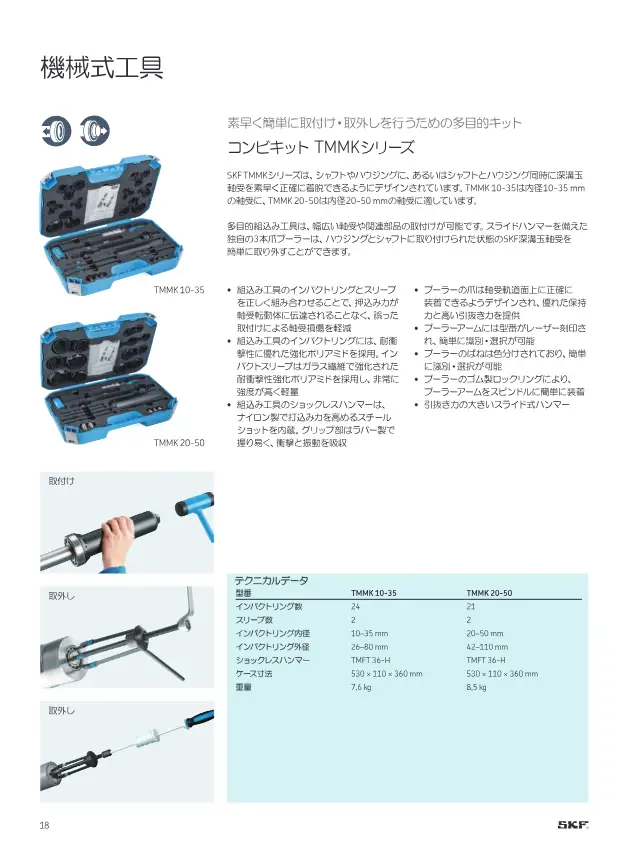

Combi Kit TMMK 10-35 on page 20 of SKF "SKFメンテナンス製品と潤滑製品"
Source: SKF「SKFメンテナンス製品と潤滑製品」page 20
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Impact ring inner diameter 10～35 mm
Impact ring outer diameter 26～80 mm
Number of impact rings 24 個
Number of sleeves 2 個
Case dimensions 530 × 110 × 360 mm
Weight 7.6 kg

TMMK model comparison

Compare 2 models in the same series by specification.

Model Impact ring inner diameter Impact ring outer diameter Number of impact rings Number of sleeves Case dimensions Weight
TMMK 10-35 This product 10～35 mm 26～80 mm 24 個 2 個 530 × 110 × 360 mm 7.6 kg
TMMK 20-50 20～50 mm 42～110 mm 21 個 2 個 530 × 110 × 360 mm 8.5 kg

Description

Combines an impact ring, sleeve, shockless hammer, and 3-claw puller. The springs and arms of the puller are easy to identify by color coding and stamped markings.

Features

  • Design in which pressing force is less likely to be transmitted to the rolling elements
  • High pulling force with 3-claw puller
  • Parts identified by model number stamping and color coding

Applications

  • Installation of deep groove ball bearings
  • Removal of deep groove ball bearings

FAQ

Q. What are the bore diameter of the target bearings and the dimensions of the impact ring for TMMK 10-35?
A. The impact ring has an inner diameter of 10 to 35 mm and an outer diameter of 26 to 80 mm. It is intended for deep groove ball bearings with bore diameters of 10 to 35 mm.
Q. What applications can TMMK 10-35 be used for?
A. It is used for installing and removing deep groove ball bearings. It is a multi-purpose kit that supports fitting and removal on shafts and housings.
Q. What are the components, storage case dimensions, and weight of TMMK 10-35?
A. The kit includes 24 impact rings and 2 sleeves. The case dimensions are 530 × 110 × 360 mm and the weight is 7.6 kg. The impact ring, sleeve, shockless hammer, and 3-claw puller are used in combination.
Q. What are the features of the 3-claw puller and the pressing force of TMMK 10-35?
A. The 3-claw puller provides high pulling force. The design makes it less likely for pressing force to be transmitted to the rolling elements.
Q. How can the parts of TMMK 10-35 be distinguished?
A. Parts can be identified by model number stamping and color coding. The springs and arms of the puller are easy to identify by color coding or stamped markings.
