Frame 2U Type + Quick Level Bar DPDV

hangOn / Iwata Seisakusho Co., Ltd. (Official website) / Listed on page 12 of the document

A painting hanger combining a 2U type frame with a hooked quick level bar whose number of tiers can be changed.

Last verified: (date the content was verified against the source document)

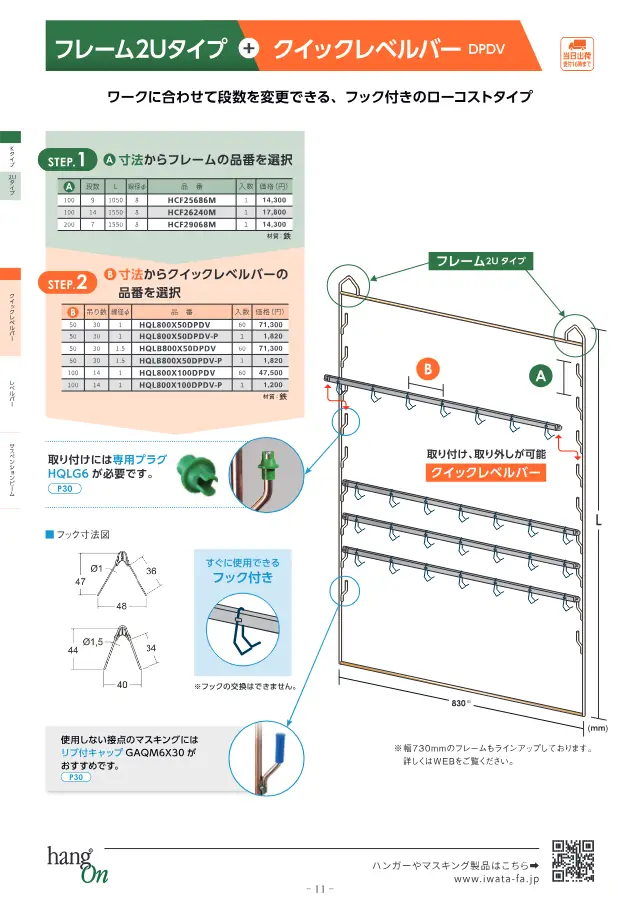

Frame 2U Type + Quick Level Bar DPDV on page 12 of Iwata Seisakusho Co., Ltd. "塗装治具 ハンガー選定ガイドブック"
Source: Iwata Seisakusho Co., Ltd.「塗装治具 ハンガー選定ガイドブック」page 12
A reduced image of the relevant page is quoted from the document. Copyright belongs to Iwata Seisakusho Co., Ltd..Request removal

Specifications

Frame width 830 mm
Frame length 1050・1550 mm
Level Bar Length 800 mm

hangOn model comparison

Compare 12 models in the same series by specification.

Model Frame width Frame height Level Bar Length Level Bar Wire Diameter
フレーム2Uタイプ + クイックレベルバー D90DV 830 mm — 800 mm —
フレーム2Uタイプ + クイックレベルバー D90TRV 830 mm — 800 mm —
フレーム2Uタイプ + クイックレベルバー DPDV This product 830 mm — 800 mm —
フレーム2Uタイプ + クイックレベルバー SPDV 830 mm — 800 mm —
フレームKタイプ + クイックレベルバー D90DV 830 mm 1000 mm 800 mm —
フレームKタイプ + クイックレベルバー D90TRV 830 mm 1000 mm 800 mm —
フレームKタイプ + クイックレベルバー DPDV 830 mm 1000 mm 800 mm 1・1.5 φmm
フレームKタイプ + クイックレベルバー S90DV 830 mm 1000 mm 800 mm —
フレームKタイプ + クイックレベルバー SPDV 830 mm 1000 mm 800 mm —
フレームKタイプ + サスペンションビーム — — 800 mm —
フレームKタイプ + レベルバー BHL D 830 mm 1000 mm — 8 φmm
フレームKタイプ + レベルバー BHL S 830 mm 1000 mm — 8 φmm

How to choose Painting hanger

Points to check when selecting, with the values for this product (Frame 2U Type + Quick Level Bar DPDV).

  1. 1. Select a frame that fits line dimensions

    Check that the frame width, height, and length fit the conveyor pitch and the opening dimensions of the booth and drying oven. The listed product has a width of 830mm, a height of 1000mm, and a length of 1050mm. Also check that the overall outline with workpieces hung does not interfere with equipment.

  2. 2. Workpiece size and level bar length

    This product: Level Bar Length 800 mm

    The level bar length determines the range over which workpieces can be arranged horizontally. The listed product has a length of 800mm. Estimate how many workpieces one bar can hold from the sum of the workpiece width and the spacing needed for paint to reach all surfaces.

  3. 3. Assess output by suspension point count

    The more suspension points per hanger, the more parts can be painted at one time. The listed products include an example with 16 points. For small parts, choose models with more suspension points; for large workpieces, choose models with fewer points. Also check whether output can be adjusted by changing the number of tiers.

  4. 4. Check the maximum hook wire diameter

    Types with exchangeable hooks, such as beam types, have a maximum wire diameter for the hooks that can be installed. For example, some products are specified for wire diameters of 4mm or less. Confirm that hooks of a suitable thickness to bear the workpiece weight can be used.

  5. 5. Judge strength and load capacity from wire diameter

    The wire diameter of the frame and level bars affects stiffness and load capacity. The listed frame uses 8mm wire, and the level bars range from 1 to 8mm. Heavy workpieces are prone to deflection or dropping, so select a product with sufficient wire diameter margin.

  6. 6. Hook style, electrical contact, and maintainability

    Hook styles that keep workpieces from slipping off prevent drops during conveying. For electrostatic painting, confirm the structure maintains electrical contact. Hooks with paint buildup require replacement or stripping, so a structure that allows hooks and insert parts to be replaced makes maintenance easier.

This guide was written by AI based on the listed products' documents and specification items.

About Painting hanger and all products

Description

Combination of a 2U type frame and a quick level bar. Frame length is 1050 mm or 1550 mm.

Features

  • Ready to use immediately with hooks
  • Number of tiers can be changed

Applications

  • Industrial painting

FAQ

Q. What frame lengths are available for the Frame 2U Type + Quick Level Bar DPDV?
A. The frame length is 1050 mm or 1550 mm.
Q. What are the frame width and level bar length of the Frame 2U Type + Quick Level Bar DPDV?
A. The frame width is 830 mm and the level bar length is 800 mm.
Q. What applications can the Frame 2U Type + Quick Level Bar DPDV be used for?
A. It is a painting hanger for industrial painting, combining a 2U type frame with a hooked quick level bar whose number of tiers can be changed.
Q. Can the Frame 2U Type + Quick Level Bar DPDV be used immediately after purchase?
A. Yes, it is ready to use immediately with hooks. The number of tiers can also be changed.
