Frame K Type + Quick Level Bar SPDV

Specifications

hangOn model comparison

Compare 12 models in the same series by specification.

How to choose Painting hanger

Points to check when selecting, with the values for this product (Frame K Type + Quick Level Bar SPDV).

1. 1. Select a frame that fits line dimensions

   This product: Frame height 1000 mm

   Check that the frame width, height, and length fit the conveyor pitch and the opening dimensions of the booth and drying oven. The listed product has a width of 830mm, a height of 1000mm, and a length of 1050mm. Also check that the overall outline with workpieces hung does not interfere with equipment.

2. 2. Workpiece size and level bar length

   This product: Level Bar Length 800 mm

   The level bar length determines the range over which workpieces can be arranged horizontally. The listed product has a length of 800mm. Estimate how many workpieces one bar can hold from the sum of the workpiece width and the spacing needed for paint to reach all surfaces.

3. 3. Assess output by suspension point count

   The more suspension points per hanger, the more parts can be painted at one time. The listed products include an example with 16 points. For small parts, choose models with more suspension points; for large workpieces, choose models with fewer points. Also check whether output can be adjusted by changing the number of tiers.

4. 4. Check the maximum hook wire diameter

   Types with exchangeable hooks, such as beam types, have a maximum wire diameter for the hooks that can be installed. For example, some products are specified for wire diameters of 4mm or less. Confirm that hooks of a suitable thickness to bear the workpiece weight can be used.

5. 5. Judge strength and load capacity from wire diameter

   The wire diameter of the frame and level bars affects stiffness and load capacity. The listed frame uses 8mm wire, and the level bars range from 1 to 8mm. Heavy workpieces are prone to deflection or dropping, so select a product with sufficient wire diameter margin.

6. 6. Hook style, electrical contact, and maintainability

   Hook styles that keep workpieces from slipping off prevent drops during conveying. For electrostatic painting, confirm the structure maintains electrical contact. Hooks with paint buildup require replacement or stripping, so a structure that allows hooks and insert parts to be replaced makes maintenance easier.

This guide was written by AI based on the listed products' documents and specification items.

About Painting hanger and all products

Description

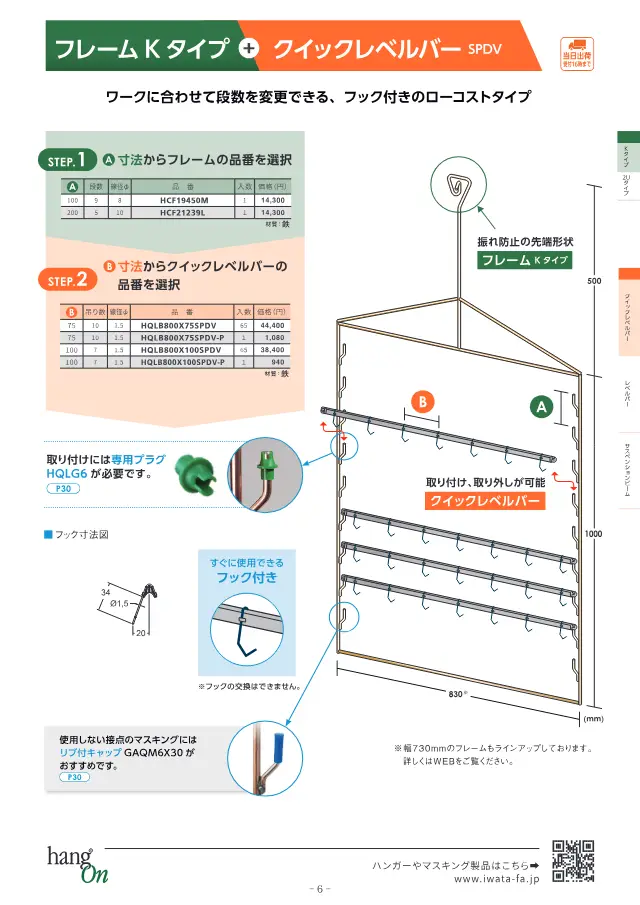

A combination of Frame K Type and Quick Level Bar SPDV. The hook wire diameter is 1.5mm, and the hooks cannot be replaced.

FAQ

Q. What are the specifications (frame width and height, level bar length) of Frame K Type + Quick Level Bar SPDV?

A. The frame width is 830 mm, the frame height is 1000 mm, and the level bar length is 800 mm.

Q. What is the hook wire diameter of Frame K Type + Quick Level Bar SPDV, and can the hooks be replaced?

A. The hook wire diameter is 1.5mm. The hooks cannot be replaced.

Q. What applications is Frame K Type + Quick Level Bar SPDV suited for?

A. It is a hook-equipped painting hanger for large workpieces with a small number of hanging points, used in industrial painting. Because the hooks are already attached, it is ready to use immediately, and the number of tiers can be changed.

Written by AI based on the content of the source documents.
