Frame K Type + Quick Level Bar D90DV

hangOn / Iwata Seisakusho Co., Ltd. (Official website) / Listed on page 5 of the document

Low-cost hook-equipped painting hanger for the D90DV series. Multiple part numbers are available with different numbers of hangers.

Last verified: (date the content was verified against the source document)

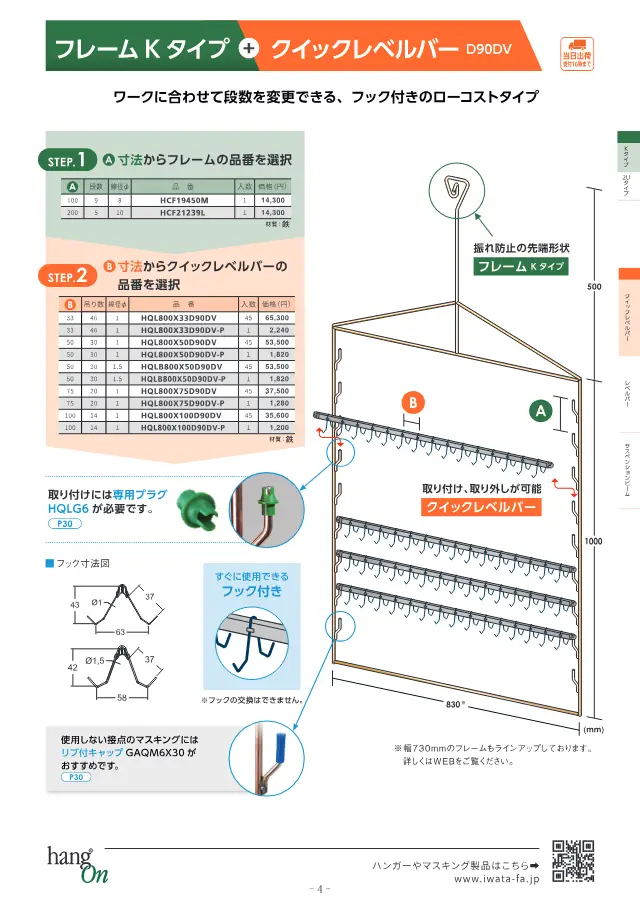

Frame K Type + Quick Level Bar D90DV on page 5 of Iwata Seisakusho Co., Ltd. "塗装治具 ハンガー選定ガイドブック"
Source: Iwata Seisakusho Co., Ltd.「塗装治具 ハンガー選定ガイドブック」page 5
A reduced image of the relevant page is quoted from the document. Copyright belongs to Iwata Seisakusho Co., Ltd..Request removal

Specifications

Frame width 830 mm
Frame height 1000 mm
Level Bar Length 800 mm

hangOn model comparison

Compare 12 models in the same series by specification.

Model Frame width Frame height Level Bar Length Level Bar Wire Diameter
フレーム2Uタイプ + クイックレベルバー D90DV 830 mm — 800 mm —
フレーム2Uタイプ + クイックレベルバー D90TRV 830 mm — 800 mm —
フレーム2Uタイプ + クイックレベルバー DPDV 830 mm — 800 mm —
フレーム2Uタイプ + クイックレベルバー SPDV 830 mm — 800 mm —
フレームKタイプ + クイックレベルバー D90DV This product 830 mm 1000 mm 800 mm —
フレームKタイプ + クイックレベルバー D90TRV 830 mm 1000 mm 800 mm —
フレームKタイプ + クイックレベルバー DPDV 830 mm 1000 mm 800 mm 1・1.5 φmm
フレームKタイプ + クイックレベルバー S90DV 830 mm 1000 mm 800 mm —
フレームKタイプ + クイックレベルバー SPDV 830 mm 1000 mm 800 mm —
フレームKタイプ + サスペンションビーム — — 800 mm —
フレームKタイプ + レベルバー BHL D 830 mm 1000 mm — 8 φmm
フレームKタイプ + レベルバー BHL S 830 mm 1000 mm — 8 φmm

How to choose Painting hanger

Points to check when selecting, with the values for this product (Frame K Type + Quick Level Bar D90DV).

  1. 1. Select a frame that fits line dimensions

    This product: Frame height 1000 mm

    Check that the frame width, height, and length fit the conveyor pitch and the opening dimensions of the booth and drying oven. The listed product has a width of 830mm, a height of 1000mm, and a length of 1050mm. Also check that the overall outline with workpieces hung does not interfere with equipment.

  2. 2. Workpiece size and level bar length

    This product: Level Bar Length 800 mm

    The level bar length determines the range over which workpieces can be arranged horizontally. The listed product has a length of 800mm. Estimate how many workpieces one bar can hold from the sum of the workpiece width and the spacing needed for paint to reach all surfaces.

  3. 3. Assess output by suspension point count

    The more suspension points per hanger, the more parts can be painted at one time. The listed products include an example with 16 points. For small parts, choose models with more suspension points; for large workpieces, choose models with fewer points. Also check whether output can be adjusted by changing the number of tiers.

  4. 4. Check the maximum hook wire diameter

    Types with exchangeable hooks, such as beam types, have a maximum wire diameter for the hooks that can be installed. For example, some products are specified for wire diameters of 4mm or less. Confirm that hooks of a suitable thickness to bear the workpiece weight can be used.

  5. 5. Judge strength and load capacity from wire diameter

    The wire diameter of the frame and level bars affects stiffness and load capacity. The listed frame uses 8mm wire, and the level bars range from 1 to 8mm. Heavy workpieces are prone to deflection or dropping, so select a product with sufficient wire diameter margin.

  6. 6. Hook style, electrical contact, and maintainability

    Hook styles that keep workpieces from slipping off prevent drops during conveying. For electrostatic painting, confirm the structure maintains electrical contact. Hooks with paint buildup require replacement or stripping, so a structure that allows hooks and insert parts to be replaced makes maintenance easier.

This guide was written by AI based on the listed products' documents and specification items.

About Painting hanger and all products

Description

Combination of Frame K Type and Quick Level Bar D90DV. Quick Level Bar is selected by number of hangers and wire diameter. A dedicated plug HQLG6 is required for installation.

Features

  • Ready to use with hooks
  • Tier count can be changed
  • Easy to install and remove

Applications

  • Industrial painting

FAQ

Q. What are the frame width and height, and the level bar length of Frame K Type + Quick Level Bar D90DV (hangOn)?
A. The frame width is 830 mm, the frame height is 1000 mm, and the level bar length is 800 mm.
Q. What applications can Frame K Type + Quick Level Bar D90DV be used for?
A. It is for industrial painting. It is a low-cost painting hanger with hooks.
Q. What are the features of Frame K Type + Quick Level Bar D90DV?
A. It is ready to use with hooks. The tier count can be changed, and it can be installed and removed easily.
Q. Are any parts required to install Frame K Type + Quick Level Bar D90DV?
A. A dedicated plug HQLG6 is required for installation.
Q. How should the Quick Level Bar for Frame K Type + Quick Level Bar D90DV be selected?
A. The Quick Level Bar is selected by number of hangers and wire diameter. Multiple part numbers are available with different numbers of hangers.
