Bearing for Jet Engine Gearbox
JTEKT Corporation (Official website) / Listed on page 3 of the document
A bearing for gearboxes that mount starters, pumps and other components. Maintains stable performance over long periods under high-temperature, high-speed conditions.
Last verified: (date the content was verified against the source document)

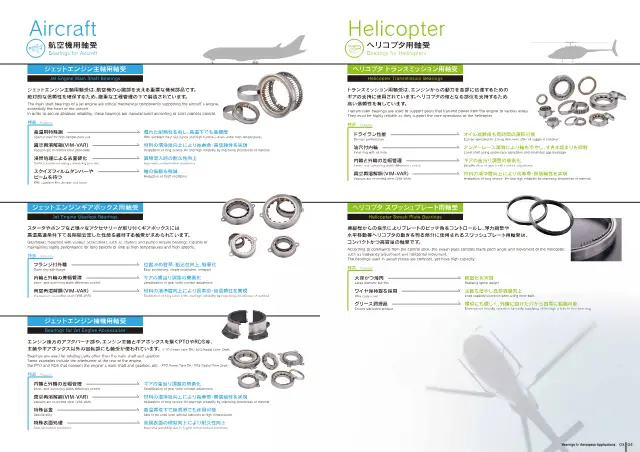

A reduced image of the relevant page is quoted from the document. Copyright belongs to JTEKT Corporation.Request removal
How to choose Rolling Bearings
Points to check when selecting, with the values for this product (Bearing for Jet Engine Gearbox).
-
1. Bore and housing bore dimensions
Select the bore diameter d to match the shaft seat, the outside diameter D to match the housing bore, and the width B to suit the installation space. Main dimensions are standardized in ISO and JIS dimension series, so interchangeable products can be found by boundary dimension designation. For tapered roller bearings, also check the assembled width T; for thrust bearings, also check the height H.
-
2. Dynamic load rating based on life calculation
The basic dynamic load rating Cr is the reference value for calculating rated life. Verify that the required life is met using the equivalent load during operation and the rotational speed. For ball bearings, life is proportional to the cube of the load ratio, so providing load margin greatly extends life.
-
3. Margin for static and shock loads
The basic static load rating C0r is the allowable standard for permanent deformation generated at the rolling elements and raceways under stationary or low-speed conditions. For applications with oscillating motion or shock loads, confirm that a static safety factor against the maximum load is secured using C0r.
-
4. Operating speed and lubrication method
The limiting speed differs by lubrication method, and separate values are given for grease lubrication and oil lubrication. Confirm that the normal operating speed does not exceed the limiting value, and in high-speed ranges also consider cage material and precision grade. The reference speed can also be consulted as a thermal guideline.
-
5. Precision grade and internal clearance
Precision grades (P0, P6, P5, etc.) indicate rotational accuracy and dimensional accuracy; for high-precision applications such as machine tool spindles, select higher grades. Internal clearance (C2, CN, C3, etc.) is selected to allow for changes caused by interference fit and temperature differences during operation.
-
6. Materials and lubrication suited to the environment
For corrosive, high-temperature, vacuum, or clean environments, select specifications such as rings and rolling elements made of stainless steel or ceramics, or solid lubricants and fluorine grease for vacuum use. Check the operating temperature range, low dust generation, and whether food-grade grease registration applies against the application conditions.
This guide was written by AI based on the listed products' documents and specification items.
Description
Adopts a flanged outer ring to improve positioning and ease of assembly, and reduces weight. Uses vacuum remelted steel (VIM-VAR) to simplify gear tooth contact adjustment.
Features
- Flanged outer ring
- Control of width difference between inner and outer rings
- Vacuum remelted steel (VIM-VAR)
Applications
- Jet engine gearbox
- Starter and pump mounting sections
FAQ
- Q. What are the advantages of the flanged outer ring in the bearing for jet engine gearboxes?
- A. The flanged outer ring improves positioning and ease of assembly, and reduces weight.
- Q. What material is used for the bearing for jet engine gearboxes?
- A. It uses vacuum remelted steel (VIM-VAR).
- Q. What applications is the bearing for jet engine gearboxes used for?
- A. It is used in jet engine gearboxes and in starter and pump mounting sections.
- Q. Can the bearing for jet engine gearboxes be used under high-temperature, high-speed conditions?
- A. Yes, it is a bearing that maintains stable performance over long periods under high-temperature, high-speed conditions.
- Q. How is the width difference between the inner and outer rings of the bearing for jet engine gearboxes controlled?
- A. Control of the width difference between the inner and outer rings is cited as a key feature.
Written by AI based on the content of the source documents.
