Automotive Friction Damper
フリクションダンパ / JTEKT Corporation (Official website) / Listed on page 8 of the document
A component that increases gear drag resistance using the friction torque of rubber, suppressing gear rattle noise during idling.
Last verified: (date the content was verified against the source document)

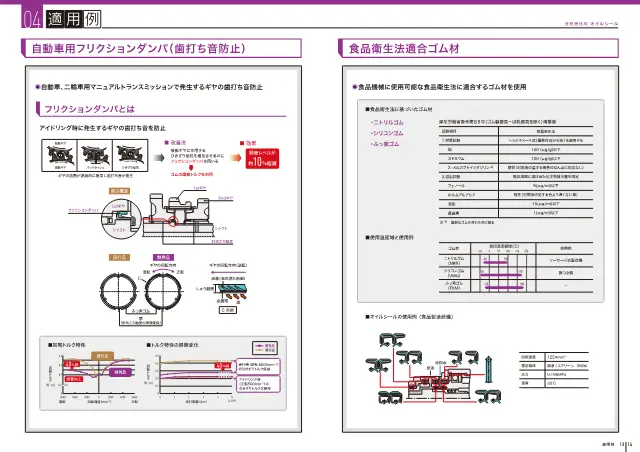

A reduced image of the relevant page is quoted from the document. Copyright belongs to JTEKT Corporation.Request removal
Specifications
| Noise level | Approx. 10 %低減 |
|---|---|
| Drag torque during running | 40 %低減 |
Description
Prevents gear rattle in manual transmissions of automobiles and motorcycles. Applies rubber friction torque to the driven gear. Reduces noise level by approximately 10% and drag torque during driving by approximately 40%.
Features
- Gear rattle prevention
- Utilizes rubber friction torque
- Improved fuel efficiency
Applications
- Automotive manual transmissions
- Motorcycle manual transmissions
FAQ
- Q. By what mechanism does the Automotive Friction Damper suppress gear rattle noise?
- A. It applies rubber friction torque to the driven gear, increasing gear drag resistance and preventing gear rattle noise during idling.
- Q. Which vehicle manual transmissions can the Automotive Friction Damper be used in?
- A. It can be used in manual transmissions of automobiles and motorcycles.
- Q. How much do noise level and drag torque change when the friction damper is used?
- A. Noise level is reduced by approximately 10%, and drag torque during driving is reduced by approximately 40%.
Written by AI based on the content of the source documents.
Source documents
- Catalog 産業機械用 オイルシール Open page 8
