SKF Vibracon

SKFヴィブラコン / SKF (Official website) / Listed on page 98 of the document

Chock for rotating equipment with self-aligning capability. Helps eliminate soft foot and reduce foundation costs.

Last verified: (date the content was verified against the source document)

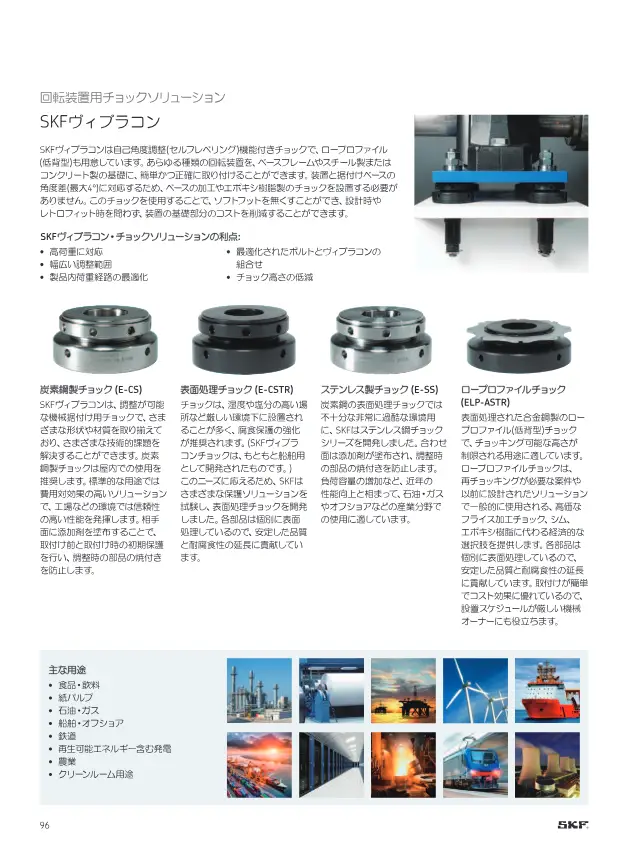

SKF Vibracon on page 98 of SKF "SKFメンテナンス製品と潤滑製品"
Source: SKF「SKFメンテナンス製品と潤滑製品」page 98
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Angular difference compatibility Max. 4 °
Load capacity 65 – 2 000 kN
Bolt Size M12 – M68

Description

Accommodates angular misalignment between equipment and base of up to 4°, with no base machining or epoxy resin required. Available in carbon steel, surface-treated, stainless steel and low-profile types.

Features

  • Self-aligning (up to 4°)
  • Eliminates soft foot
  • Low-profile version available
  • Stainless steel and surface-treated types available

Applications

  • Food and beverage
  • Pulp and paper
  • Oil and gas
  • Marine and offshore
  • Railway
  • Renewable energy and power generation
  • Agriculture
  • Cleanroom

FAQ

Q. How much angular misalignment between equipment and base can SKF Vibracon accommodate?
A. It accommodates angular misalignment between equipment and base of up to 4°. The self-aligning function helps eliminate soft foot.
Q. When installing SKF Vibracon, is base machining or epoxy resin required?
A. No, base machining and epoxy resin are not required.
Q. What material and design types are available for SKF Vibracon?
A. Carbon steel, surface-treated, stainless steel and low-profile types are available.
Q. What are the load capacity and bolt size ranges of SKF Vibracon?
A. Load capacity is 65 – 2 000 kN and bolt sizes are M12 – M68.
Q. In which fields is SKF Vibracon used?
A. It is used in food and beverage, pulp and paper, oil and gas, marine and offshore, railway, renewable energy and power generation, agriculture, and cleanroom applications, among others.
