High-Temperature Insert Bearing

Specifications

How to choose Bearing units

Points to check when selecting, with the values for this product (High-Temperature Insert Bearing).

1. 1. Match shaft diameter and dimensional system (metric/inch)

   This product: Shaft diameter d 20~60 mm

   Bearing units are offered in separate metric and inch series, and they are not interchangeable even when their appearance is similar. Listed products cover metric sizes of 3 to 150 mm and inch sizes of 1 to 4 in. First determine the shaft diameter and dimensional system, then select from the corresponding series.

2. 2. Check the rated load against the operating conditions

   The basic dynamic load rating Cr is used for rolling fatigue life calculations, and the basic static load rating C0r is used for evaluating stationary or shock loads. Listed Cr values range from 7.28 to 793 kN, and there are heavy-load products, such as half-ring types, with increased static load ratings.

3. 3. Select a specification suited to the operating temperature

   This product: Limit temperature 250~350 °C

   Standard greases and rubber seals deteriorate at high temperatures. High-temperature specifications are available in types with different upper temperature limits; for example, VA201 is rated at 130 to 250°C and VA228 at 260 to 350°C. In addition to the ambient temperature, check the permissible seal temperature and the sealed grease.

4. 4. Choose the shaft fixing method for the application

   Set-screw type is easy to install but requires control of the tightening torque. The method that fixes the bearing with a tapered bore and adapter sleeve provides a secure connection to the shaft and suits applications with reversing rotation or vibration. Check it together with the recommended shaft tolerance grade.

5. 5. Verify the permissible rotational speed

   Bearing units have an upper limit on usable rotational speed depending on seal friction and the fixing method. The permissible speeds of listed products range widely from 6 to 12000 r/min, and low-speed heavy-load and high-speed units have very different characteristics. Confirm that the operating speed has sufficient margin.

6. 6. Allow for shaft tilt during installation

   In the spherical-fit design, the unit can absorb shaft tilt during installation up to a certain angle. However, in structures that allow regreasing, the permissible angle may be smaller. Listed products include an example of 2°. Check the permissible misalignment according to the accuracy of the base or frame.

This guide was written by AI based on the listed products' documents and specification items.

About Bearing units and all products

Description

Equipped with a narrow-clearance labyrinth seal formed by shields and flingers. Mounted on the shaft and secured with a set screw. Limiting temperature is classified as 250 °C and 350 °C.

FAQ

Q. What shaft diameters are compatible with the YAR 2F/VA201 and YAR 2F/VA228 high-temperature insert bearings?

A. The shaft diameter d is 20 to 60 mm. Metric and inch series are available with bore diameters of 20 to 60 mm.

Q. What is the limiting temperature of the YAR 2F/VA201 and YAR 2F/VA228?

A. The limiting temperature is 250 to 350 °C. They are classified as 250 °C and 350 °C types.

Q. How are the YAR 2F/VA201 and YAR 2F/VA228 attached to the shaft?

A. They are inserted onto the shaft and secured with a set screw. The structure allows fixing to the inner ring with a set screw.

Q. Do the YAR 2F/VA201 and YAR 2F/VA228 have sealing and lubrication features?

A. They are equipped with a narrow-clearance labyrinth seal formed by shields and flingers. No re-lubrication is required.

Q. What applications are the YAR 2F/VA201 and YAR 2F/VA228 suited for?

A. They are suited for machinery equipment in high-temperature environments.

Written by AI based on the content of the source documents.

Source documents

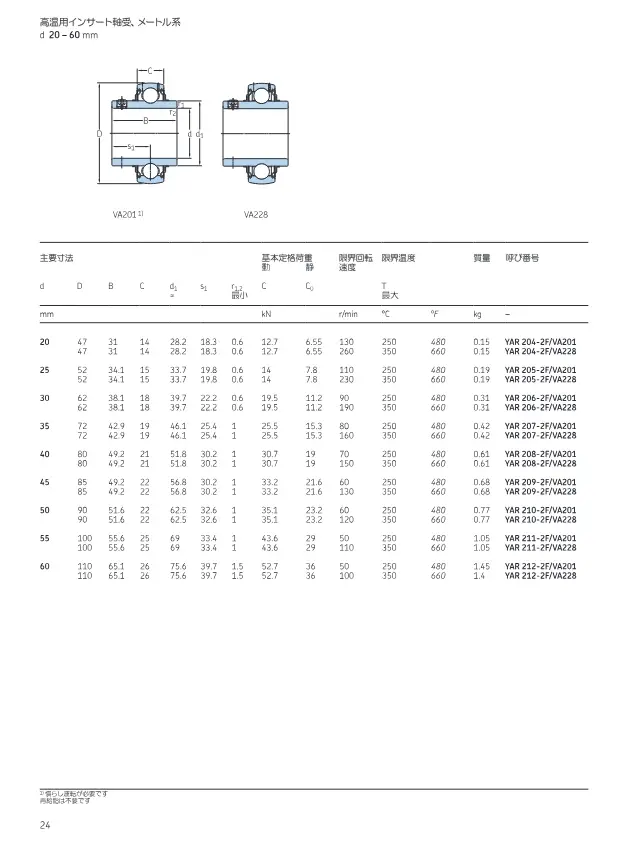

• Catalog SKF高温用軸受 最高運転温度350 °C(660 °F) 40 pages Open page 24
