Rod Seal (S10/S13 Chevron Packing)

Specifications

How to choose Rod Seals

Points to check when selecting, with the values for this product (S1012 / S1315).

1. 1. Match rod diameter and groove dimensions

   This product: Applicable rod diameter d 10〜300 mm

   A seal is specified by the combination of applicable rod diameter and installation groove dimensions. The applicable rod diameter of listed products is 5 to 1000 mm. When fitting into an existing groove, check on the drawing that, in addition to the rod diameter, the groove width and groove bottom diameter match the standard combination.

2. 2. Verify cross-section and groove width

   This product: Cross-sectional Dimensions (c/s) 5〜15 mm

   Cross-section dimension (c/s, radial thickness) corresponds to the groove depth, and groove width L corresponds to the axial length. The listed range is 2.45 to 20 mm cross-section and 2.2 to 50 mm groove width. If dimensions do not match, insufficient squeeze causes leakage, and excessive compression causes early wear.

3. 3. Maximum operating pressure and backup rings

   The maximum operating pressure of listed products is 160 to 700 bar. At high pressure, the seal tends to extrude into the clearance and fail, so consider types with square or trapezoidal backup rings. Confirm that the pressure, including pressure surges (momentary pressure rises), stays within the upper limit.

4. 4. Select material by temperature and fluid compatibility

   PU offers excellent wear resistance, while PTFE has high chemical and heat resistance and low friction. Rubber-based materials vary in oil and heat resistance depending on their compound. Operating temperature ranges differ by material, so select a material that suits the working fluid, such as hydraulic oil, water, or air, and the operating temperature.

5. 5. Check the upper limit of sliding speed

   The maximum sliding speed of listed products is 0.5 to 10 m/s, which varies greatly by material and type. Use at high speed accelerates deterioration due to frictional heat. Check that the maximum cylinder speed is within the upper limit, and consider low-friction PTFE-based types for high-speed applications.

6. 6. Select seal type and operating method

   Rod seals are basically single-acting types that receive pressure from one side. In high-pressure systems, there is a method of combining them with buffer seals. For large machines that are hard to install or have worn rods, chevron packings, which can be selected as split types, are suitable.

This guide was written by AI based on the listed products' documents and specification items.

About Rod Seals and all products

Description

Rod diameter 10 to 300 mm. Standard materials are ECOPUR and SKF Ecotal.

FAQ

Q. What applications is the Rod Seal S1012 / S1315 used for?

A. It is a single-acting rod seal for heavy industrial hydraulic equipment and presses.

Q. Can the S1012 / S1315 be used on worn rods?

A. Yes. It is considered optimal for old, worn rods.

Q. What are the applicable rod diameter, cross-section dimensions, and groove width for the S1012 / S1315?

A. Applicable rod diameter d is 10 to 300 mm, cross-section dimension (c/s) is 5 to 15 mm, and groove width L is 16 to 50 mm.

Q. Is the S1012 / S1315 available in a type that is easy to install?

A. Yes, a split-type is available for easy installation.

Q. What materials are used for the S1012 / S1315?

A. ECOPUR and SKF Ecotal are used as standard materials.

Written by AI based on the content of the source documents.

Source documents

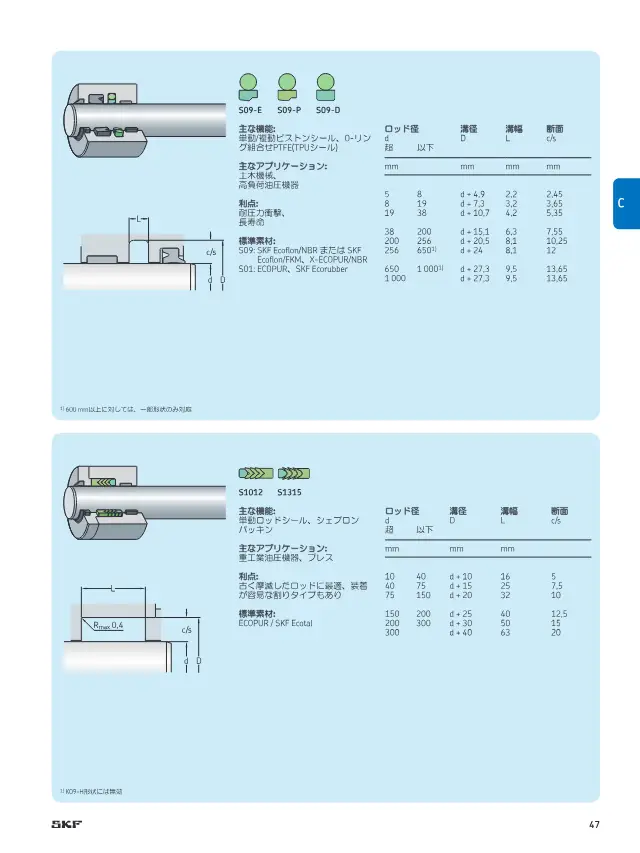

• Catalog カスタムエンジニアリングシール シール製品案内 56 pages Open page 47
