Shaft Alignment System TKSA 71
Model TKSA 71 / TKSA 71/PRO / TKSA / SKF (Official website) / Listed on page 92 of the document
High-end shaft alignment system for professionals, usable in confined spaces.
Last verified: (date the content was verified against the source document)

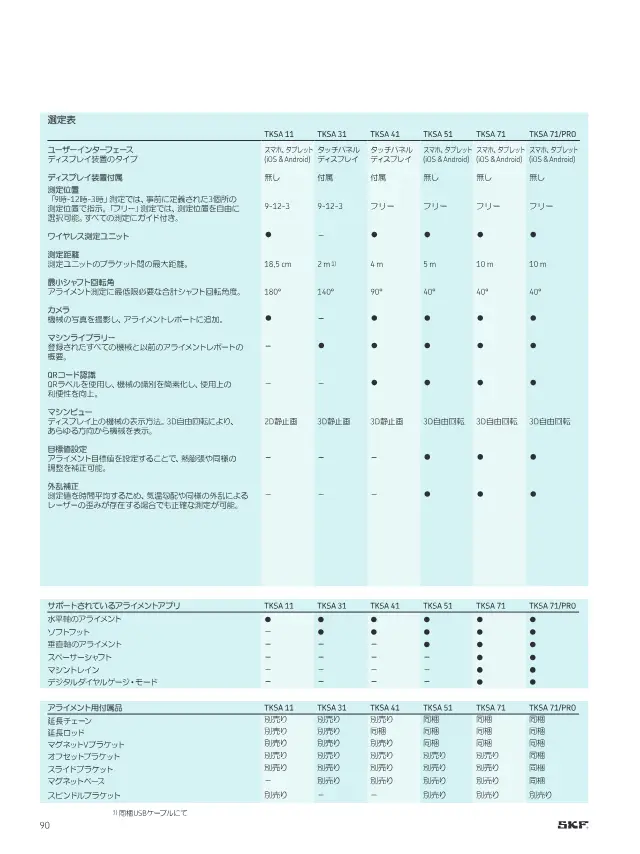

A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal
Specifications
| Measurement Distance | 10 m |
|---|---|
| Protection Rating (IP) | IP67 |
TKSA model comparison
Compare 7 models in the same series by specification.
| Model | Measurement Distance | Minimum Shaft Rotation Angle | Measurement Unit Mass | Measurement Error | Total mass (incl. case) | Continuous operating time | Protection Rating (IP) |
|---|---|---|---|---|---|---|---|
| TKSA 11 | 0 – 185 mm (between brackets) | 180 ° | 155 g | Less than 2% / 10 μm | 2.1 kg | Max. 18 時間 | Measuring unit IP54 (probe IP67) |
| TKSA 31 | 7 cm – 4 m | 40 ° | — | <0,5% ±5 μm | — | — | — |
| TKSA 41 | 7 cm – 4 m | 90 ° | 220 g | — | — | Max. 16 時間 | — |
| TKSA 51 | 7 cm – 5 m | 40 度 | 190 g | <1% ±10 μm | — | — | — |
| TKSA 71 | 4 cm – 10 m | 40 ° | 130 g | <1% ±10 μm | 3.9 kg | — | — |
| TKSA 71 / TKSA 71/PRO This product | 10 m | — | — | — | — | — | IP67 |
| TKSA 71/PRO | 4 cm – 10 m | 40 ° | 130 g | <1% ±10 μm | 12.5 kg | — | — |
Description
Measuring distance up to 10 m. The measurement unit is a fully sealed IP67 design.
Features
- IP67 dust-tight and waterproof
- Ultra-compact measurement unit
Applications
- Alignment of horizontal shafts, vertical shafts, and machine trains
FAQ
- Q. What applications can the TKSA 71 / TKSA 71/PRO be used for?
- A. It can be used for alignment of horizontal shafts, vertical shafts, and machine trains. It is a high-end shaft alignment system for professionals that can be used in confined spaces.
- Q. What are the measuring distance and the protection rating of the measurement unit of the TKSA 71?
- A. The measuring distance is up to 10 m. The measurement unit is a fully sealed IP67 design, providing dust-tight and waterproof protection.
- Q. How large is the measurement unit of the TKSA 71?
- A. It is an ultra-compact measurement unit.
