Angular Contact Ball Bearing 7200 Series (Contact Angle 30°)
7200 / JTEKT Corporation (Official website) / Listed on page 77 of the document
Single-row angular contact ball bearing with a 30° contact angle. Bore diameter approx. 10 to 90 mm, supports high axial loads.
Last verified: (date the content was verified against the source document)

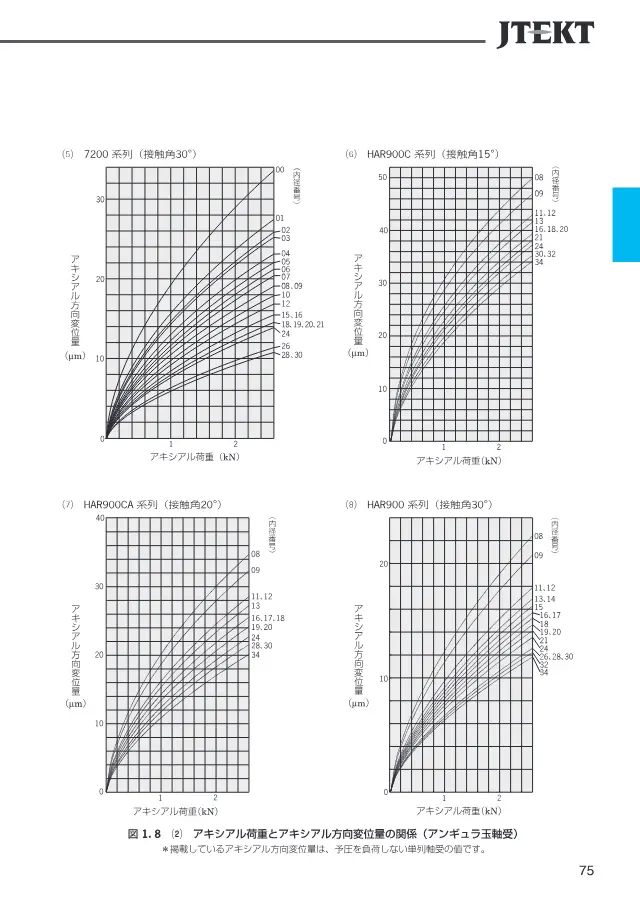

A reduced image of the relevant page is quoted from the document. Copyright belongs to JTEKT Corporation.Request removal
Specifications
| Inner diameter d | 10〜90 mm |
|---|---|
| Basic dynamic load rating Cr | 6.25〜53.5 kN |
How to choose Rolling Bearings
Points to check when selecting, with the values for this product (Angular Contact Ball Bearing 7200 Series (Contact Angle 30°)).
-
1. Bore and housing bore dimensions
This product: Inner diameter d 10〜90 mmSelect the bore diameter d to match the shaft seat, the outside diameter D to match the housing bore, and the width B to suit the installation space. Main dimensions are standardized in ISO and JIS dimension series, so interchangeable products can be found by boundary dimension designation. For tapered roller bearings, also check the assembled width T; for thrust bearings, also check the height H.
-
2. Dynamic load rating based on life calculation
This product: Basic dynamic load rating Cr 6.25〜53.5 kNThe basic dynamic load rating Cr is the reference value for calculating rated life. Verify that the required life is met using the equivalent load during operation and the rotational speed. For ball bearings, life is proportional to the cube of the load ratio, so providing load margin greatly extends life.
-
3. Margin for static and shock loads
The basic static load rating C0r is the allowable standard for permanent deformation generated at the rolling elements and raceways under stationary or low-speed conditions. For applications with oscillating motion or shock loads, confirm that a static safety factor against the maximum load is secured using C0r.
-
4. Operating speed and lubrication method
The limiting speed differs by lubrication method, and separate values are given for grease lubrication and oil lubrication. Confirm that the normal operating speed does not exceed the limiting value, and in high-speed ranges also consider cage material and precision grade. The reference speed can also be consulted as a thermal guideline.
-
5. Precision grade and internal clearance
Precision grades (P0, P6, P5, etc.) indicate rotational accuracy and dimensional accuracy; for high-precision applications such as machine tool spindles, select higher grades. Internal clearance (C2, CN, C3, etc.) is selected to allow for changes caused by interference fit and temperature differences during operation.
-
6. Materials and lubrication suited to the environment
For corrosive, high-temperature, vacuum, or clean environments, select specifications such as rings and rolling elements made of stainless steel or ceramics, or solid lubricants and fluorine grease for vacuum use. Check the operating temperature range, low dust generation, and whether food-grade grease registration applies against the application conditions.
This guide was written by AI based on the listed products' documents and specification items.
Description
The 7200 series is a single-row angular contact ball bearing with a 30° contact angle. Includes 7200C, 7200AC, and 7200 contact angle variants, and provides axial load displacement characteristics.
Features
- High axial load capacity with 30° contact angle
Applications
- Machine tool spindles
- Pumps
FAQ
- Q. What is the bore diameter range of the Angular Contact Ball Bearing 7200 Series (Contact Angle 30°)?
- A. The bore diameter d is approx. 10 to 90 mm.
- Q. What is the basic dynamic load rating of the 7200 series?
- A. The basic dynamic load rating Cr is 6.25 to 53.5 kN.
- Q. Which contact angle variants are available in the 7200 series?
- A. The series includes 7200C, 7200AC, and 7200 contact angle variants. The contact angle is 30°.
- Q. What loads does the 7200 series support?
- A. It is a single-row angular contact ball bearing with a 30° contact angle that supports high axial loads. Axial load displacement characteristics are also provided.
- Q. What applications is the 7200 series used for?
- A. Applications listed include machine tool spindles, pumps, and others.
Written by AI based on the content of the source documents.
