Self-Aligning Ball Bearing with Seals
2200〜2310 E-2RS1TN9 / SKF (Official website) / Listed on page 25 of the document
Self-aligning ball bearing with seals (E-2RS1) for bore diameters of 10 to 70 mm. The seals provide robust performance in demanding operating environments.
Last verified: (date the content was verified against the source document)

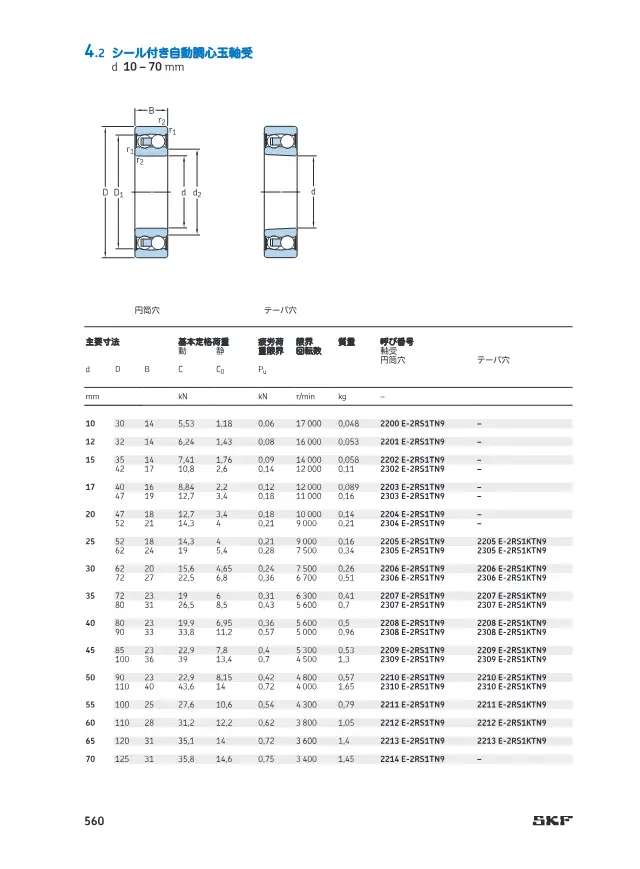

A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal
Specifications
| Inner diameter d | 10〜70 mm |
|---|---|
| Basic dynamic load rating Cr | 5.53〜35.8 kN |
| Limiting speed (grease lubrication) | 3,400〜17,000 r/min |
How to choose Rolling Bearings
Points to check when selecting, with the values for this product (Self-Aligning Ball Bearing with Seals).
-
1. Bore and housing bore dimensions
This product: Inner diameter d 10〜70 mmSelect the bore diameter d to match the shaft seat, the outside diameter D to match the housing bore, and the width B to suit the installation space. Main dimensions are standardized in ISO and JIS dimension series, so interchangeable products can be found by boundary dimension designation. For tapered roller bearings, also check the assembled width T; for thrust bearings, also check the height H.
-
2. Dynamic load rating based on life calculation
This product: Basic dynamic load rating Cr 5.53〜35.8 kNThe basic dynamic load rating Cr is the reference value for calculating rated life. Verify that the required life is met using the equivalent load during operation and the rotational speed. For ball bearings, life is proportional to the cube of the load ratio, so providing load margin greatly extends life.
-
3. Margin for static and shock loads
The basic static load rating C0r is the allowable standard for permanent deformation generated at the rolling elements and raceways under stationary or low-speed conditions. For applications with oscillating motion or shock loads, confirm that a static safety factor against the maximum load is secured using C0r.
-
4. Operating speed and lubrication method
This product: Limiting speed (grease lubrication) 3,400〜17,000 r/minThe limiting speed differs by lubrication method, and separate values are given for grease lubrication and oil lubrication. Confirm that the normal operating speed does not exceed the limiting value, and in high-speed ranges also consider cage material and precision grade. The reference speed can also be consulted as a thermal guideline.
-
5. Precision grade and internal clearance
Precision grades (P0, P6, P5, etc.) indicate rotational accuracy and dimensional accuracy; for high-precision applications such as machine tool spindles, select higher grades. Internal clearance (C2, CN, C3, etc.) is selected to allow for changes caused by interference fit and temperature differences during operation.
-
6. Materials and lubrication suited to the environment
For corrosive, high-temperature, vacuum, or clean environments, select specifications such as rings and rolling elements made of stainless steel or ceramics, or solid lubricants and fluorine grease for vacuum use. Check the operating temperature range, low dust generation, and whether food-grade grease registration applies against the application conditions.
This guide was written by AI based on the listed products' documents and specification items.
Description
Self-aligning ball bearing with seals on both sides, covering bore diameters from 10 to 70 mm. Available in cylindrical bore and tapered bore (KTN9) versions. Speed ratings are set lower than those of open-type bearings.
Features
- Seals on both sides (E-2RS1)
- Available in cylindrical bore and tapered bore types
FAQ
- Q. What is the bore diameter range of the SKF self-aligning ball bearing with seals 2200 to 2310 E-2RS1TN9?
- A. The bore diameter d is 10 to 70 mm.
- Q. What are the basic dynamic load rating and limiting speed of SKF 2200 to 2310 E-2RS1TN9?
- A. The basic dynamic load rating Cr is 5.53 to 35.8 kN, and the limiting speed (grease lubrication) is 3,400 to 17,000 r/min. The limiting speed is set lower than that of open-type bearings.
- Q. What types of seals and bore shapes are available for SKF 2200 to 2310 E-2RS1TN9?
- A. Available with seals on both sides (E-2RS1), in both cylindrical bore and tapered bore (KTN9) types.
Written by AI based on the content of the source documents.
Source documents
-
Catalog
SKF 自動調心玉軸受 製品カタログ(設計およびバリエーション・軸受データ)
30 pages Open page 25
