SKF Single-Row Deep Groove Ball Bearings (Boundary Dimensions d 3–10 mm)

単列深溝玉軸受 (d 3–10 mm) / SKF (Official website) / Listed on page 29 of the document

A series of small-bore single-row deep groove ball bearings with bore diameters of 3 to 10 mm. Outside diameter, width, basic load ratings, and limiting speeds are listed for each bearing number.

Last verified: (date the content was verified against the source document)

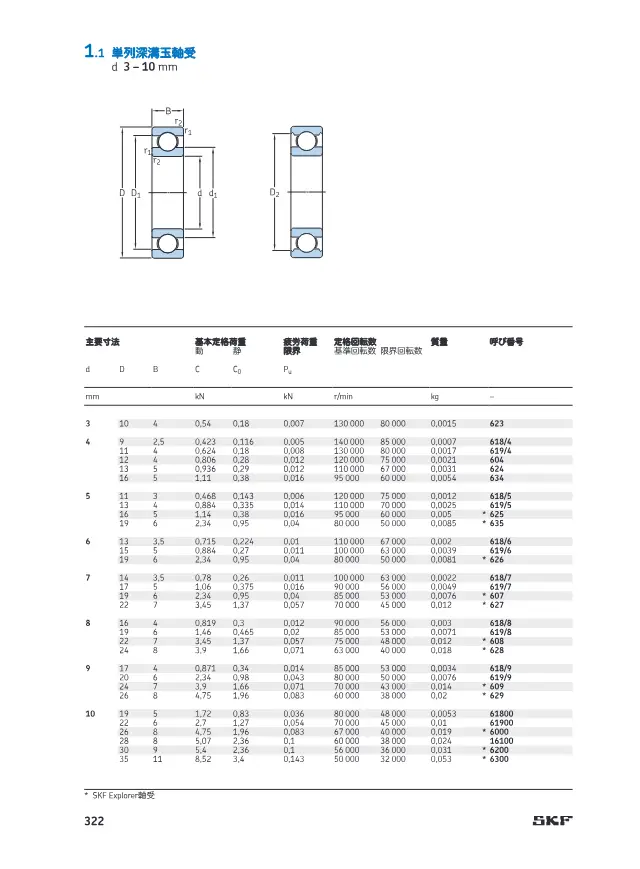

SKF Single-Row Deep Groove Ball Bearings (Boundary Dimensions d 3–10 mm) on page 29 of SKF "SKF 深溝玉軸受 製品カタログ(設計およびバリエーション)"
Source: SKF「SKF 深溝玉軸受 製品カタログ(設計およびバリエーション)」page 29
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Inner diameter d 3～10 mm
Outer diameter D 4～35 mm
Basic dynamic load rating Cr 0,54～8,52 kN
Basic static load rating C0r 0,007～0,143 kN
Limiting speed (grease lubrication) 32 000～130 000 r/min
Mass 0,0007～0,053 kg

How to choose Rolling Bearings

Points to check when selecting, with the values for this product (SKF Single-Row Deep Groove Ball Bearings (Boundary Dimensions d 3–10 mm)).

  1. 1. Bore and housing bore dimensions

    This product: Inner diameter d 3～10 mm

    Select the bore diameter d to match the shaft seat, the outside diameter D to match the housing bore, and the width B to suit the installation space. Main dimensions are standardized in ISO and JIS dimension series, so interchangeable products can be found by boundary dimension designation. For tapered roller bearings, also check the assembled width T; for thrust bearings, also check the height H.

  2. 2. Dynamic load rating based on life calculation

    This product: Basic dynamic load rating Cr 0,54～8,52 kN

    The basic dynamic load rating Cr is the reference value for calculating rated life. Verify that the required life is met using the equivalent load during operation and the rotational speed. For ball bearings, life is proportional to the cube of the load ratio, so providing load margin greatly extends life.

  3. 3. Margin for static and shock loads

    This product: Basic static load rating C0r 0,007～0,143 kN

    The basic static load rating C0r is the allowable standard for permanent deformation generated at the rolling elements and raceways under stationary or low-speed conditions. For applications with oscillating motion or shock loads, confirm that a static safety factor against the maximum load is secured using C0r.

  4. 4. Operating speed and lubrication method

    This product: Limiting speed (grease lubrication) 32 000～130 000 r/min

    The limiting speed differs by lubrication method, and separate values are given for grease lubrication and oil lubrication. Confirm that the normal operating speed does not exceed the limiting value, and in high-speed ranges also consider cage material and precision grade. The reference speed can also be consulted as a thermal guideline.

  5. 5. Precision grade and internal clearance

    Precision grades (P0, P6, P5, etc.) indicate rotational accuracy and dimensional accuracy; for high-precision applications such as machine tool spindles, select higher grades. Internal clearance (C2, CN, C3, etc.) is selected to allow for changes caused by interference fit and temperature differences during operation.

  6. 6. Materials and lubrication suited to the environment

    For corrosive, high-temperature, vacuum, or clean environments, select specifications such as rings and rolling elements made of stainless steel or ceramics, or solid lubricants and fluorine grease for vacuum use. Check the operating temperature range, low dust generation, and whether food-grade grease registration applies against the application conditions.

This guide was written by AI based on the listed products' documents and specification items.

About Rolling Bearings and all products

Description

Dimensions, load ratings, speeds, mass, and designation numbers for single-row deep groove ball bearings with bore diameters of 3 to 10 mm. Items marked with * are SKF Explorer bearings. Dimensions and ratings vary by bearing number.

Features

  • Small bore sizes
  • Includes some SKF Explorer bearings

Applications

  • Small machinery
  • Electric motor equipment

FAQ

Q. What are the bore and outside diameter ranges of the SKF single-row deep groove ball bearings (boundary dimensions d 3–10 mm)?
A. The bore diameter d is 3 to 10 mm and the outside diameter D is 4 to 35 mm. Dimensions vary by bearing number.
Q. What are the basic dynamic load rating and basic static load rating of the SKF single-row deep groove ball bearings (boundary dimensions d 3–10 mm)?
A. The basic dynamic load rating Cr is 0,54 to 8,52 kN and the basic static load rating C0r is 0,007 to 0,143 kN. Ratings vary by bearing number.
Q. What are the limiting speeds (grease lubrication) and masses of the SKF single-row deep groove ball bearings (boundary dimensions d 3–10 mm)?
A. The limiting speed with grease lubrication is 32 000 to 130 000 r/min, and the mass is 0,0007 to 0,053 kg. These vary by bearing number.
Q. Which bearing numbers are SKF Explorer bearings in the SKF single-row deep groove ball bearings (boundary dimensions d 3–10 mm)?
A. Bearing numbers marked with an asterisk (*) are SKF Explorer bearings.
